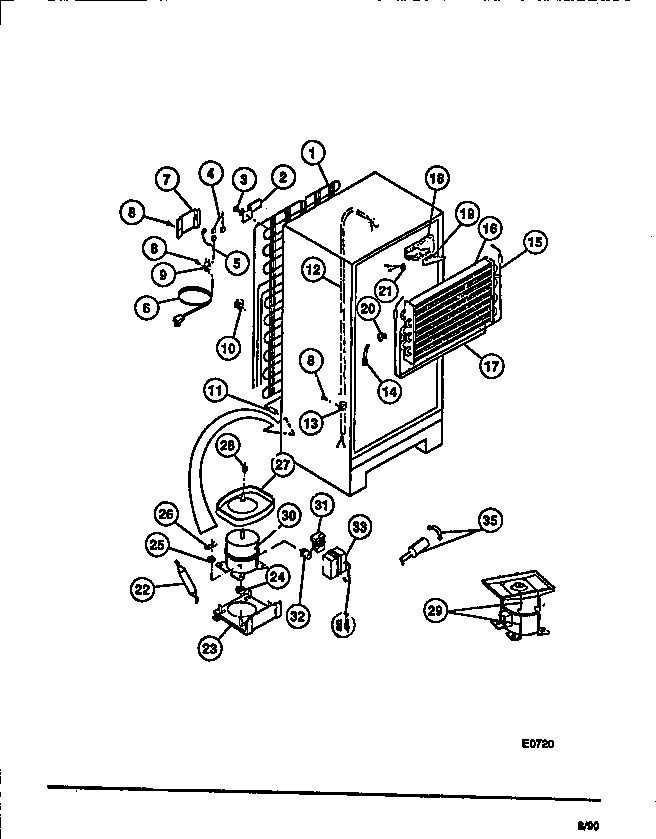

FPD14TLH1 05 – COMPRESSOR, CONDENSER, EVAPORATOR

Products

PositionProduct
1WCI 5303001341
2BRACKET-MTG (4)
3AWASHER, EXT TOOTH LOCK, NO. 10 (NON-ILLUSTRATED)
35308000039 Frigidaire Refrigerator Screw
4HARNESS-WIRING, CONTROL/DIVIDER,(NON-ILLUSTRATED)
5WIRING HARNESS, COMPRESSOR,
6CORD-ELECTRIC POWER
7WCI 5303001197
85304455651 Frigidaire Refrigerator Screw
95303001199 Frigidaire Refrigerator Wiring Harness Clamp
11WCI 530317691
12HEAT EXCHANGER, SUCTION LINE
135308000133 Frigidaire Refrigerator Clamp
145308000110 Frigidaire Refrigerator Evaporator/Heater Primary Strap
15WCI 5303001362
16EVAPORATOR
17INSULATOR-EVAP, PLASTIC
18INSULATION BLOCK, RH
19INSULATION PLUG, RH
20INSULATION BLOCK, LH
215303917954 Frigidaire Refrigerator Defrost Limit Thermostat Kit
225303305677 Frigidaire Replacement Filter Dryer Filters
22AWCI 3201679
22B218843801 Frigidaire Refrigerator Screw
23WCI 5308009596
24218513300 Frigidaire Refrigerator Compressor Mount Grommet
25WASHER-COMPR MTG
26CLIP – COMPRESSOR MTG
27APAN-DEFROST-ORIG COMPRESSOR
27PAN-DEFROST DRAIN, ORIG/SVCE COMPR
27B5303307583 Frigidaire Refrigerator P1 Pad Noise Reduction
28Nut,lock `1/4-20 ,drain pan mtg
29PAN RETAINER KIT, SERVICE
30COMPRESSOR W/ ELEC
31RELAY-TL
32WCI 5303001713
345303006412 Frigidaire Refrigerator Cover Mounting Strap
35WCI 5303018427
35ASTRAP CAPACITOR
35BHOT TUBE REPAIR KIT-SERVICE
