FPD14TLL0 04 – SHELVES AND SUPPORTS

FPD14TLL0 04 – SHELVES AND SUPPORTS

Written by

in

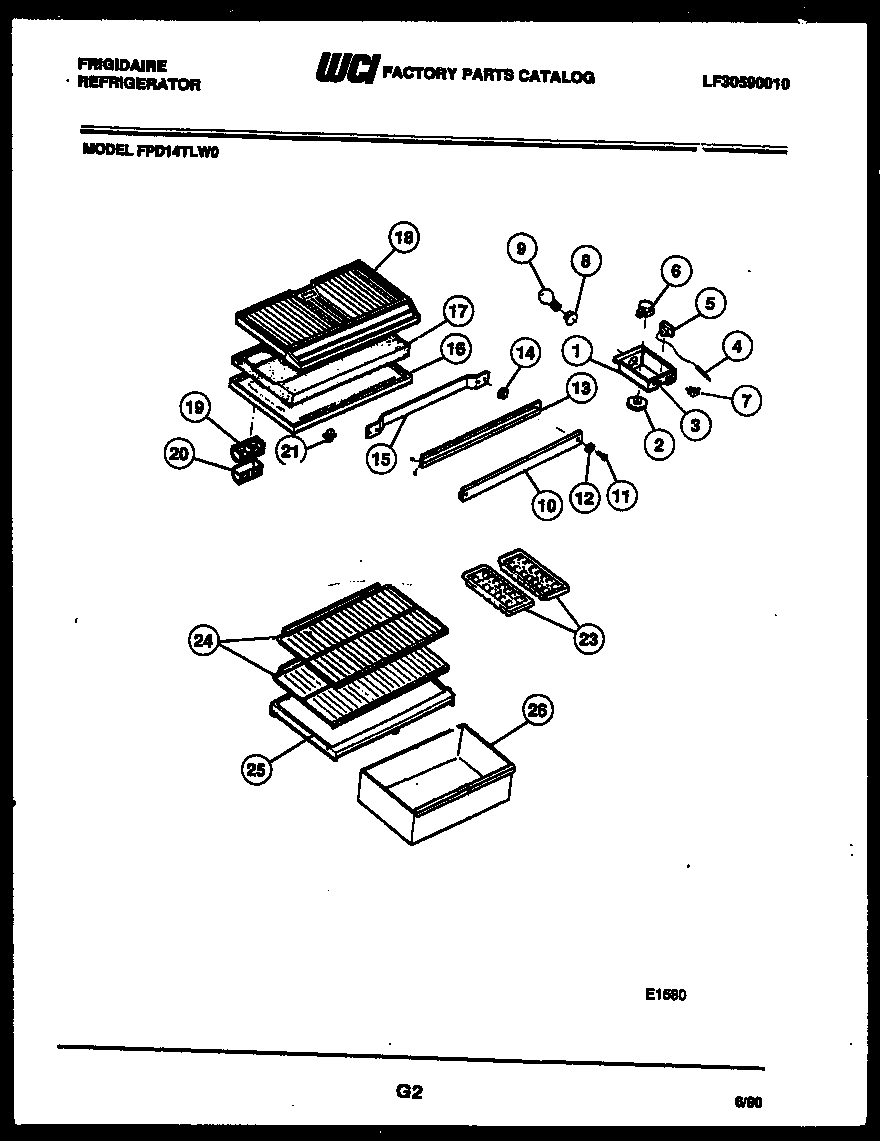

FPD14TLL0 04 – SHELVES AND SUPPORTS

Products

PositionProduct
1WCI 5308009730
1A5304455650 Frigidaire Refrigerator Screw
2WCI 08006978
3WCI 08006988
4TUBE
5WCI 5308015762
5AWCI 5303001260
6215846602 Frigidaire Refrigerator 8-Hour Defrost Timer
6A5304455649 Frigidaire Refrigerator Screw
7WCI 5308016615
8SOCKET-LIGHT/LAMP
9316538904 Frigidaire Oven Lamp Light
10WCI 5303916134
11WCI 5308012258
12HEAT EXCHANGER, SUCTION LINE
12WASHER, NO. 10 STEEL, 7/32 X 7/16 OD (NOT ILLUSTRATED)
13WCI 5308017408
14WCI 3001370
15WCI 5308003604
16TOP PANEL-REFR, W/ SNAP BUSHING
16AWCI 5303001380
17AHARNESS-WIRING, CONTROL/DIVIDER,(NON-ILLUSTRATED)
17WCI 5308000759
18WCI 5308000748
19DEFLECTOR-AIR
20COVER – AIR DEFLECTOR
215309918806 Frigidaire Refrigerator Light Switch Door
23WCI 01121808
24SHELF, REFR (2)
25WCI 3018425
26WCI 3018424
