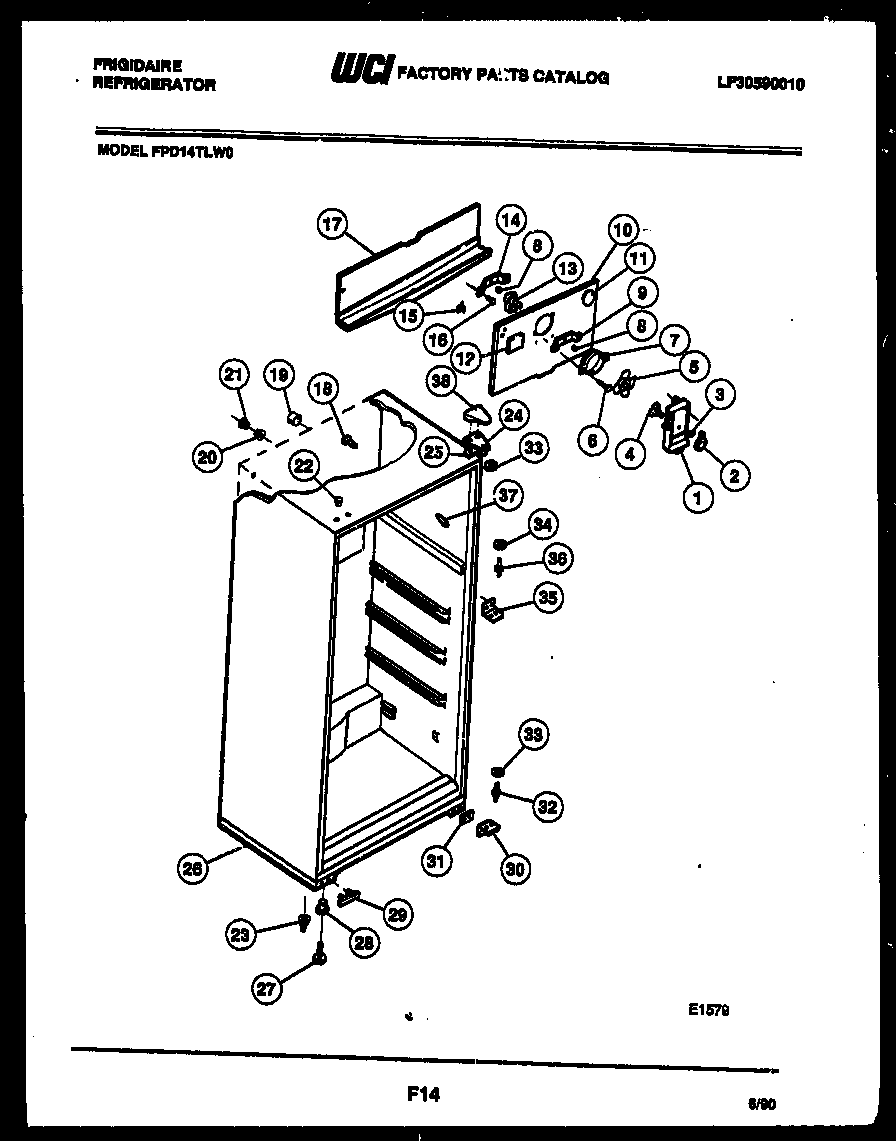

FPD14TLW0 03 – CABINET PARTS

Products

Position	Product
*31281	PLUG, BUTTON, CABINET LINER (NI)
*31281	TAPPING PLATE, UPPER HINGE (2) (NOT ILLUSTRATED)
1	WCI 3018426
2A	LABEL, KNOB
2	KNOB, DAMPER
3	Nut,push-on
4	DAMPER-FAN COVER
5	5308000010 Frigidaire Refrigerator Evaporator Fan Blade
7	RING-FAN ORIFICE
8	G187559 Frigidaire Refrigerator Bushing
9	WCI 5303001226
10	WCI 3001358
10B	5304455650 Frigidaire Refrigerator Screw
10A	NUT-SPEED (2)
11	WCI 5303203044
12	BUTTON – DECORATIVE PLUG
13	5300158289 Frigidaire Evaporator Fan Motor
14	WCI 5303001227
15	WCI 5308000107
16	218843801 Frigidaire Refrigerator Screw
17	TROUGH-DRAIN
18	SUPPORT-COIL COVER
19	TUBE-RUBBER
20	WCI 5303001286
21	WCI 5303001287
22	PLUG-BUTTON, WHITE
23	TUBE – DRAIN
24	BRACKET-UPPER HINGE
25	SHIM – UPPER HINGE
26	WCI 5303006086
27	SCREW-LEVELING (4)
28	WCI 5308003584
29	COVER-HOLE, LOWER HINGE
30A	241710601 Frigidaire Refrigerator Screw
30	HINGE – LOWER DOOR
31	SHIM-LOWER HINGE
32	5303001321 Frigidaire Refrigerator Lower Hinge Pin
33	WASHER, .34 X .62 X .05, NYLON
34	WCI 5308000186
35A	WCI 5308012258
35	BRACKET-CTR HINGE
36	WCI 5308000184
37	CORNER TRIM, WHITE (4)
38	COVER-UPPER HINGE, WHITE
