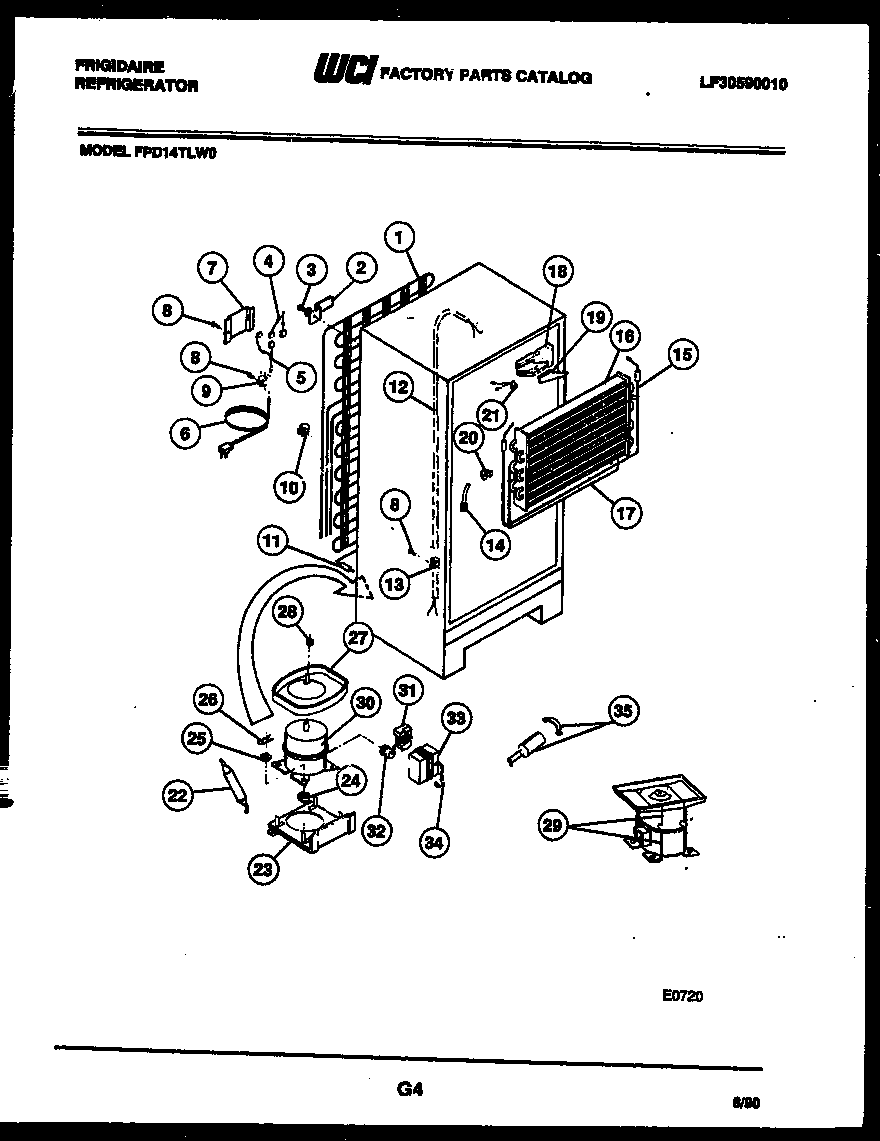

FPD14TLW0 05 – SYSTEM AND AUTOMATIC DEFROST PARTS

FPD14TLW0 05 – SYSTEM AND AUTOMATIC DEFROST PARTS

Written by

in

FPD14TLW0 05 – SYSTEM AND AUTOMATIC DEFROST PARTS

Products

PositionProduct
*31285HOT TUBE REPAIR KIT-SERVICE
*31285STRAP CAPACITOR
1WCI 5303001341
2BRACKET-MTG (4)
35308000039 Frigidaire Refrigerator Screw
3AWASHER, EXT TOOTH LOCK, NO. 10 (NON-ILLUSTRATED)
4HARNESS-WIRING, CONTROL/DIVIDER,(NON-ILLUSTRATED)
5WIRING HARNESS, COMPRESSOR,
6CORD-ELECTRIC POWER
7WCI 5303001197
85304455651 Frigidaire Refrigerator Screw
95303001199 Frigidaire Refrigerator Wiring Harness Clamp
115303017691 Frigidaire Refrigerator Spacer-Tube
135308000133 Frigidaire Refrigerator Clamp
145308000110 Frigidaire Refrigerator Evaporator/Heater Primary Strap
15WCI 5303001362
16EVAPORATOR
17INSULATOR-EVAP, PLASTIC
18INSULATION BLOCK, RH
19INSULATION PLUG, RH
20INSULATION BLOCK, LH
215303917954 Frigidaire Refrigerator Defrost Limit Thermostat Kit
225303305677 Frigidaire Replacement Filter Dryer Filters
22AWCI 3201679
22B218843801 Frigidaire Refrigerator Screw
23WCI 5308009596
24218513300 Frigidaire Refrigerator Compressor Mount Grommet
25WASHER-COMPR MTG
26CLIP – COMPRESSOR MTG
27B5303307583 Frigidaire Refrigerator P1 Pad Noise Reduction
27PAN-DEFROST DRAIN, ORIG/SVCE COMPR
27APAN-DEFROST-ORIG COMPRESSOR
28Nut,lock `1/4-20 ,drain pan mtg
29PAN RETAINER KIT, SERVICE
30WCI 3916012
31RELAY-TL
32AWCI 3202891
32WCI 3202863
33WCI 08016583
34STRAP-BALE
35WCI 5303018427
