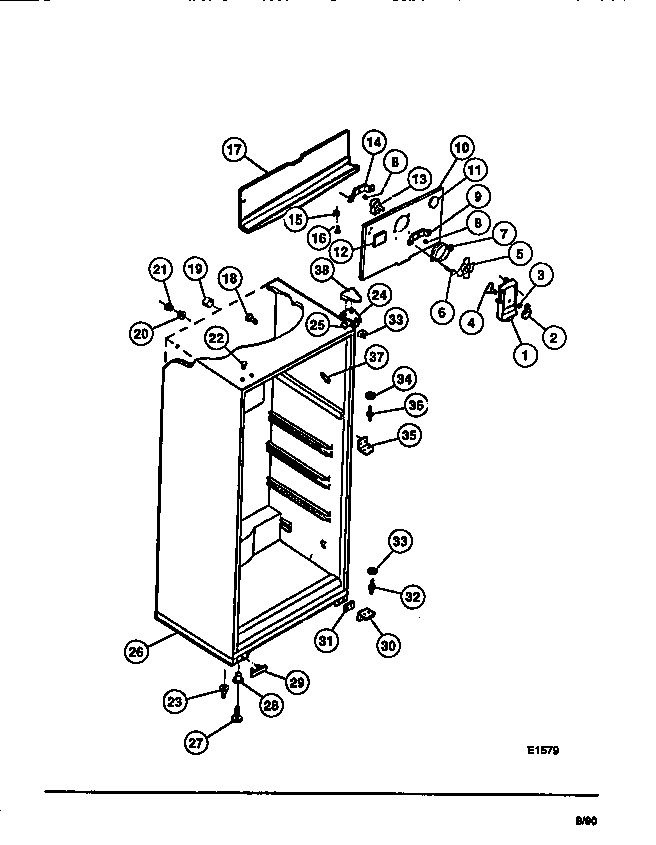

FPD14TLW1 03 – CABINET

FPD14TLW1 03 – CABINET

Written by

in

FPD14TLW1 03 – CABINET

Products

PositionProduct
1WCI 3018426
2KNOB, DAMPER
2ALABEL, KNOB
3Nut,push-on
4DAMPER-FAN COVER
55308000010 Frigidaire Refrigerator Evaporator Fan Blade
7RING-FAN ORIFICE
8G187559 Frigidaire Refrigerator Bushing
9WCI 5303001226
10ANUT, “U“ TYPE, NO. 8-15(A), FAN MOTOR MOUNT (NOT ILLUSTRATED)
10B5304455650 Frigidaire Refrigerator Screw
10WCI 3001358
115303208309 Frigidaire Refrigerator Plug Hole
12BUTTON – DECORATIVE PLUG
135300158289 Frigidaire Evaporator Fan Motor
14WCI 5303001227
15WCI 5308000107
16218843801 Frigidaire Refrigerator Screw
17TROUGH-DRAIN
18SUPPORT-COIL COVER
19TUBE-RUBBER
20WCI 5303001286
21WCI 5303001287
22PLUG-BUTTON, WHITE
23TUBE – DRAIN
24BRACKET-UPPER HINGE
25SHIM – UPPER HINGE
26WCI 5303006086
27SCREW-LEVELING (4)
28WCI 5308003584
29COVER-HOLE, LOWER HINGE
30A241710601 Frigidaire Refrigerator Screw
30HINGE – LOWER DOOR
31SHIM-LOWER HINGE
325303001321 Frigidaire Refrigerator Lower Hinge Pin
33WASHER, .34 X .62 X .05, NYLON
34WCI 5308000186
35AWCI 5308012258
35BRACKET-CTR HINGE
36WCI 5308000184
37CORNER TRIM, WHITE (4)
38APLUG, BUTTON, CABINET LINER (NI)
38BTAPPING PLATE, UPPER HINGE (2) (NOT ILLUSTRATED)
38COVER-UPPER HINGE, WHITE
