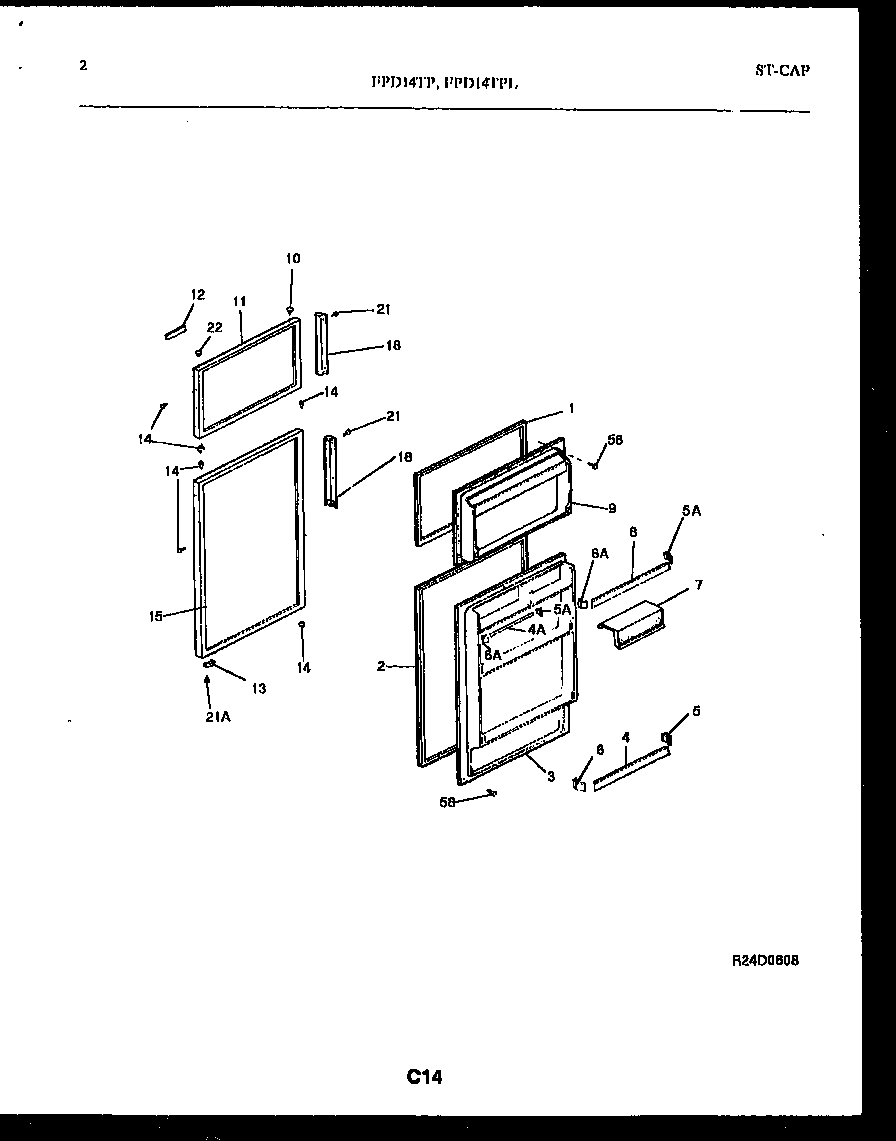

FPD14TPL0 02 – DOOR PARTS

FPD14TPL0 02 – DOOR PARTS

Written by

in

FPD14TPL0 02 – DOOR PARTS

Products

PositionProduct
1GASKET, FRZR DOOR, BROWN, MAGNETIC
2GASKET-REFR DOOR, MAGNETIC
3WCI 3018418
4215516220 Frigidaire Refrigerator Door Rack
4ARACK-REFR DOOR
5SUPPORT, RH (2)
5A5303323480 Frigidaire Refrigerator Door Bar End Cap Rh
6A5303323481 Frigidaire Refrigerator Left Hand Door Bar End Cap
6SUPPORT, LH (2) (NON-ILLUSTRATED)
7WCI 5303018419
8WCI 3018417
9WCI 3018416
10PLUG-BUTTON, ALMOND, HINGE BRG HOLE
11WCI 5303916222
12NAMEPLATE
13WCI 5308000255
14PLUG-BUTTON, ALMOND, HANDLE/DR STOP
15WCI 5303916227
18HANDLE-DOOR, ALMOND, FRZR
