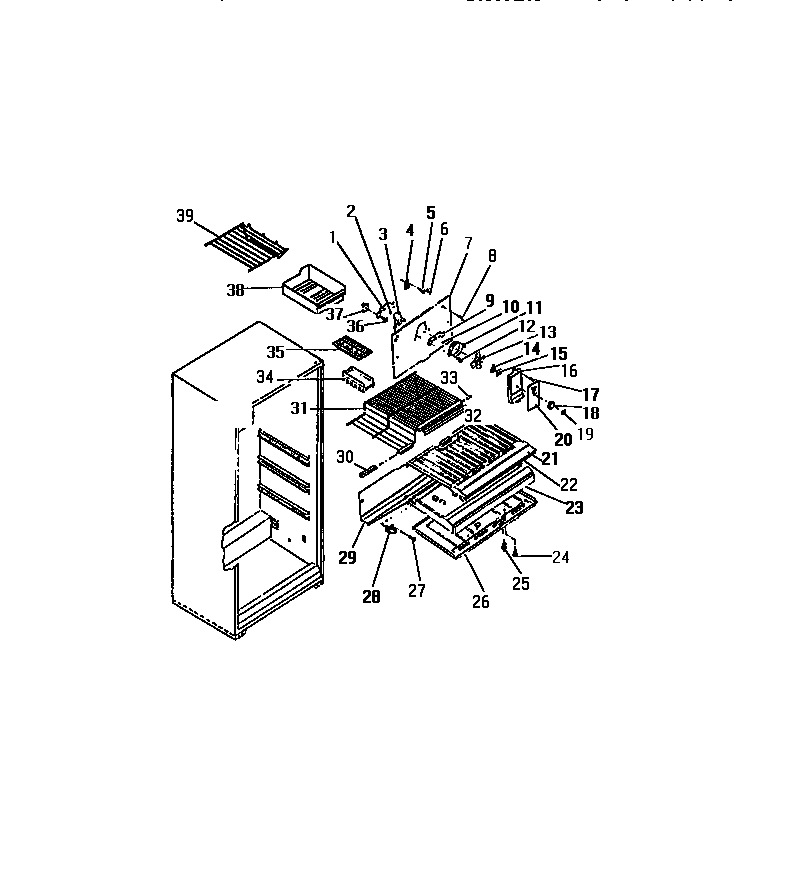

FPD16TICH0 07 – INTERIOR FREEZER COMPARTMENT

FPD16TICH0 07 – INTERIOR FREEZER COMPARTMENT

Written by

in

FPD16TICH0 07 – INTERIOR FREEZER COMPARTMENT

Products

Position	Product
1	WCI 8000042
3	WCI 8004176
4	WCI 8000221
6	WCI 8000012
7	COVER-EVAPORATOR
8	SCREW (5)
9	WCI 8000043
10	WCI 8000032
11	WCI 8000124
13	WCI 8000010
14	WCI 8000066
15	WCI 8000067
16	WCI 8009821
18	WCI 8009793
19	WCI 8009823
20	LABEL-FAN COVER
21	WCI 8010002
22	WCI 8009638
23	WCI 8009750
24	SCREW-TOP MOUNTING (3)
25	SWITCH, LIGHT
26	WCI 8010000
27	WCI 8013647
28	WCI 8000056
29	DRAIN TROUGH
33	WCI 8013638
35	WCI 1121808
36	WCI 8000098
37	WCI 8000107
38	CONTAINER-ICE
39	SHELF-FREEZER
