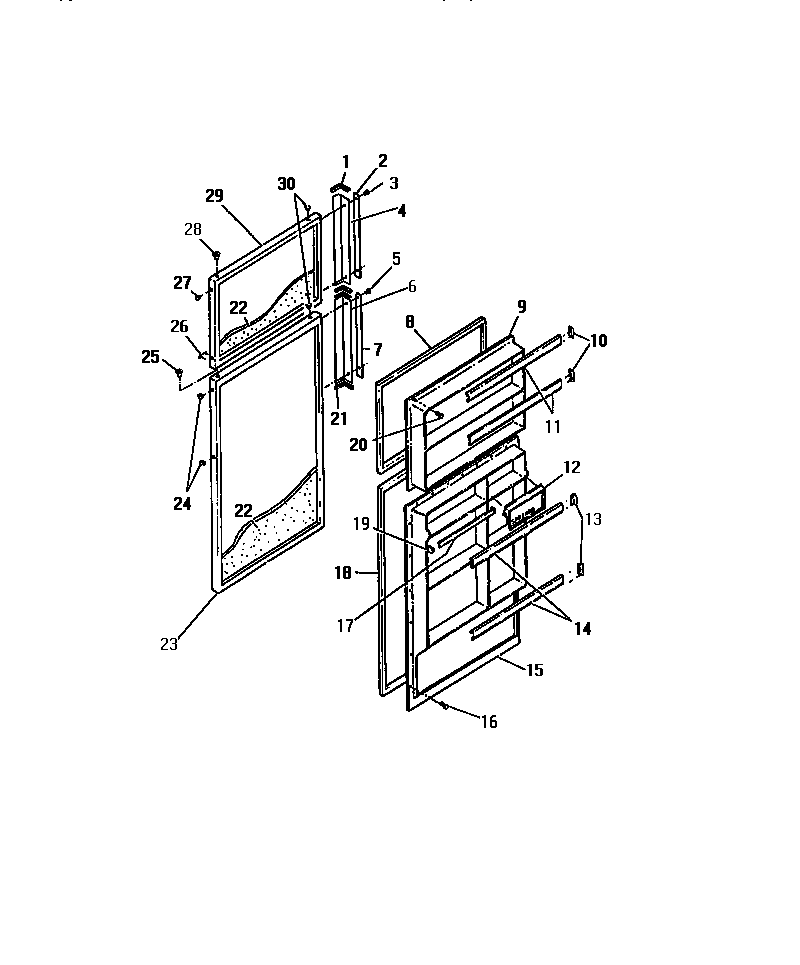

FPD16TICL0 08 – FOOD AND FREEZER DOORS

Products

Position	Product
*73760	WCI 8000140
1	END CAP-TOP (2)
5	SCREW-HANDLE MOUNTING (4)
6	HANDLE ASSY W/ CAP & TRIM
7	WCI 8010232
8	WCI 8010244
9	WCI 8009909
12	WCI 8009785
13A	SUPPORT-RACK LS (2) (NON-ILLUSTRATED)
13	SUPPORT-RACK RS (2)
14	WCI 8009700
15	WCI 8009791
17	DOOR RACK-TOP
18	WCI 8009733
19	SUPPORT-RACK RS
19A	SUPPORT-RACK LS (NON-ILLUSTRATED)
20	SCREW-PANEL MOUNTING (56)
21	END CAP-BOTTOM (2)
23	WCI 8009802
26	WCI 8009843
27	PLUG-HANDLE, ALMOND
28	HINGE BEARING (8)
29	WCI 8009799
30	PLUG-HINGE, ALMOND
