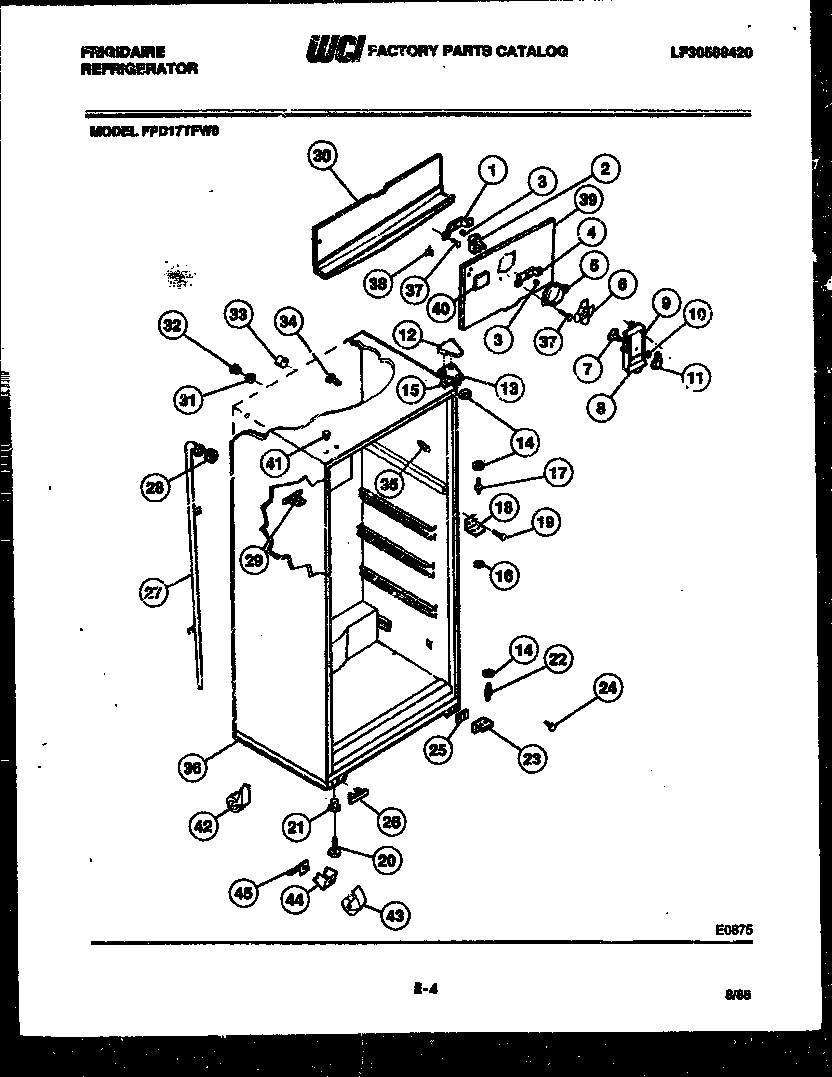

FPD17TFA0 03 – CABINET PARTS

Products

Position	Product
*16035	WCI 8016571
*16035	WCI 8009761
*16035	WCI 8011326
1	WCI 8000042
2	WCI 8004176
3	WCI 8000032
4	WCI 8000043
5	WCI 8000124
6	5308000010 Frigidaire Refrigerator Evaporator Fan Blade
7	WCI 8000066
8A	SCREW-COVER MOUNTING (NON-ILLUSTRATED)
8	WCI 8009817
9	LABEL-FAN COVER
10	WCI 8000067
11A	WCI 8009823
11	WCI 8009793
12	COVER, HNG, AVOC
13A	SCREW-HINGE MOUNTING (2)
13	WCI 8012843
14	WASHER-1/4 NYLON (3)
15	WCI 8012829
16	WASHER-5/16 NYLON
17	WCI 8000184
18	WCI 8000757
19	SCREW-HINGE/MULLION (4)
20	SCREWS LEVELING (4)
21	WCI 8003584
22	PIN-LOWER HINGE
23	WCI 8017609
24	SCREW-HINGE MOUNTING
25	SHIM-LOWER HINGE
25A	TAPPING PLATE (4)
26	WCI 8003585
27	WCI 8010012
28	WCI 8009755
29	WCI 8000056
29A	SCREWS
30	DRAIN TROUGH
32	WCI 8006970
32	WCI 8006971
33	WCI 8000004
34	WCI 8000097
35	WCI 8010015
36	CABINET BASE
37	SCREW-PANEL MOUNTING (56)
37A	WCI 8000126
38	WCI 8000107
39A	PLUG-SHORT TEST HOLE (NON-ILLUSTRATED)
39	COVER-EVAPORATOR
40	WCI 8013636
41	WCI 8007126
42A	WCI 8009762
42	WCI 8009773
42B	SCREW-TUBE MOUNTING (2)
43	WCI 8009760
44	WCI 8013678
45	WCI 8009790
