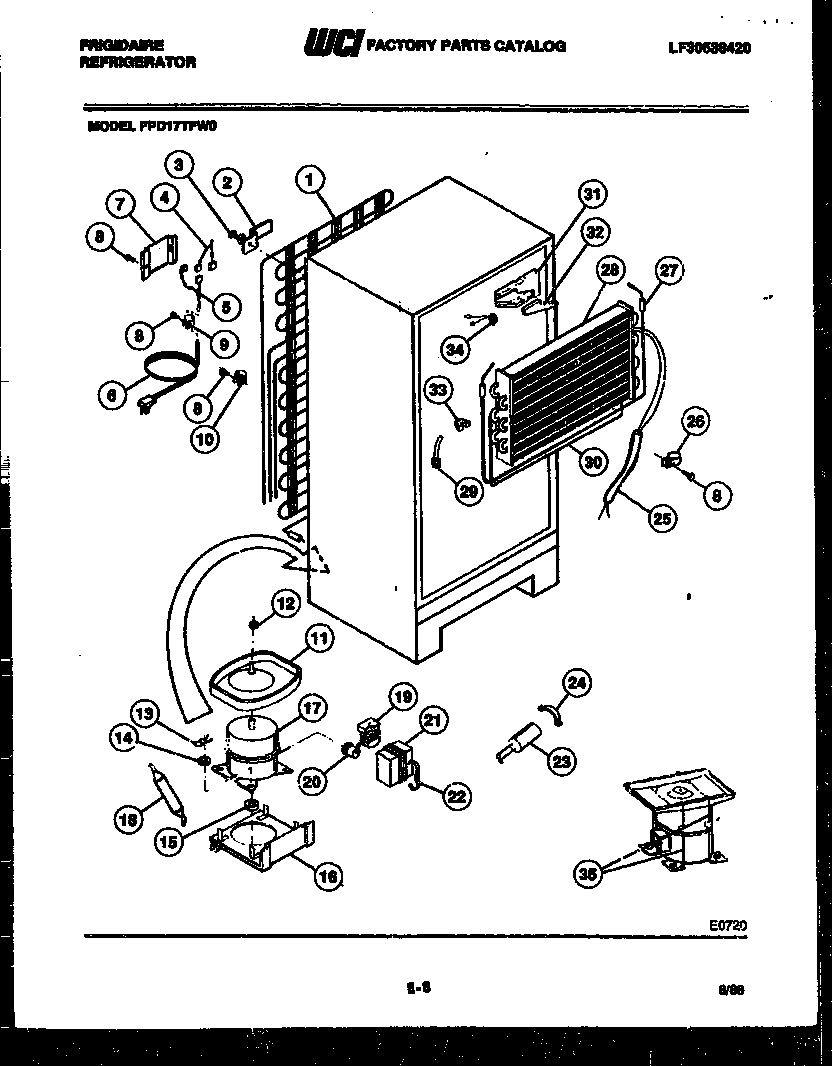

FPD17TFF0 05 – SYSTEM AND AUTOMATIC DEFROST PARTS

Products

Position	Product
*16039	WCI 9960001
1	WCI 8009262
2	BRACKET-CONDENSER MOUNTING (4)
3	SCREW-BRACKET MOUNTING (4) (NON-ILLUSTRATED)
4	WCI 3018900
5	WCI 8009628
6	WCI 8000064
7	WCI 8013644
8	SCREW-TUBE MOUNTING (2)
9	CLAMP-CABLE (3)
10	WCI 8000187
11	DEFROST PAN-SERVICE COMPRESSOR
12	LOCK NUT-PAN MOUNTING
13	CLIP (4)
14	WASHER (4)
15	WCI 8008778
16	WCI 8013663
17	WCI 3916004
18	WCI 8000027
19	WCI 8017226
20	WCI 8017572
21	WCI 8006982
22	WCI 8000117
23	WCI 8017535
24	WCI 8017231
25	WCI 8010274
26	WCI 8008782
27	HEATER-DEFROST
28	PANEL, INTERIOR FOOD DOOR
29	WCI 8000110
30	WCI 8009638
31	WCI 8013648
32	WCI 8013646
33	WCI 8017227
34	WCI 8000073
35	WCI 8950024
