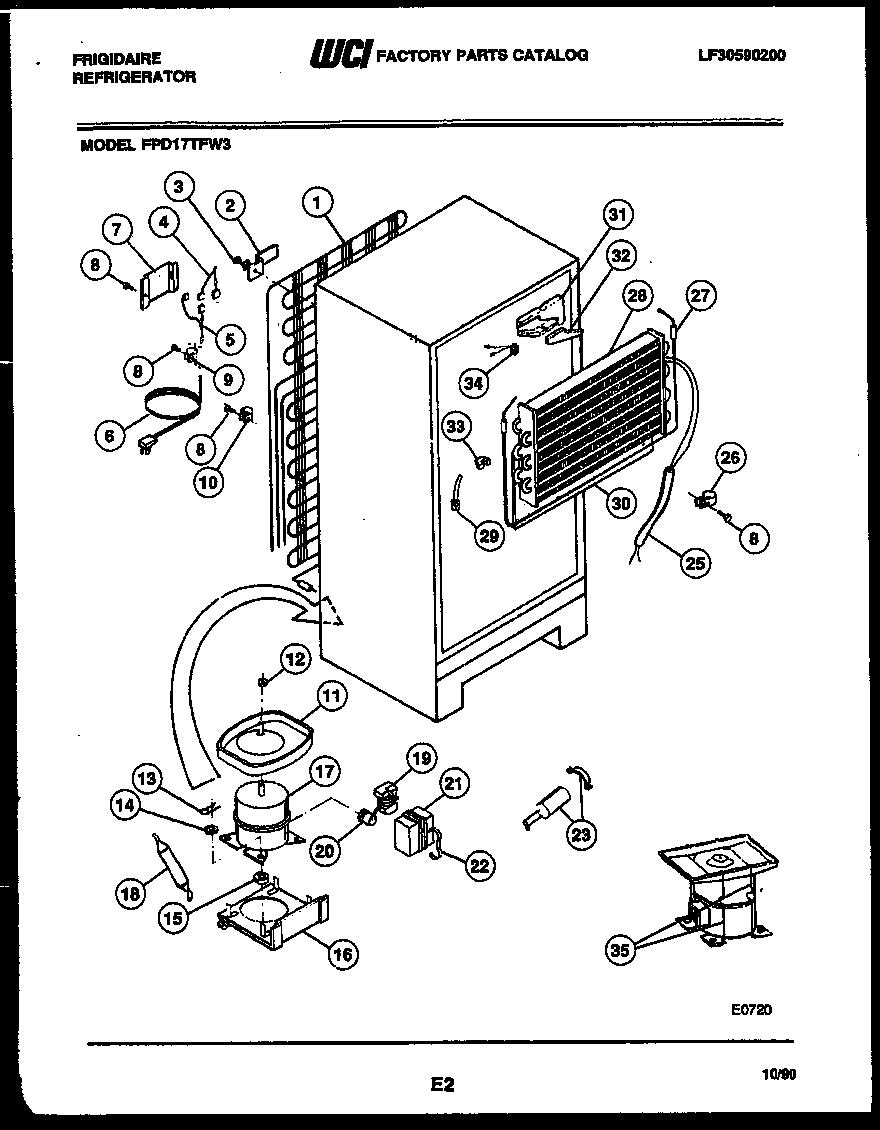

FPD17TFH3 05 – SYSTEM AND AUTOMATIC DEFROST PARTS

Products

PositionProduct
*36662HOT TUBE REPAIR KIT-SERVICE
1WCI 5303001341
2BRACKET-MTG (4)
35308000039 Frigidaire Refrigerator Screw
4WCI 3018900
5WIRING HARNESS, COMPRESSOR,
6CORD-ELECTRIC POWER
7WCI 5303001197
85304455651 Frigidaire Refrigerator Screw
8AWASHER, EXT TOOTH LOCK, NO. 10 (NON-ILLUSTRATED)
95303001199 Frigidaire Refrigerator Wiring Harness Clamp
10WCI 08000187
11B5303307583 Frigidaire Refrigerator P1 Pad Noise Reduction
11APAN-DEFROST DRAIN, ORIG/SVCE COMPR
11PAN-DEFROST-ORIG COMPRESSOR
12Nut,lock `1/4-20 ,drain pan mtg
13CLIP – COMPRESSOR MTG
14WASHER-COMPR MTG
15218513300 Frigidaire Refrigerator Compressor Mount Grommet
16WCI 5308013663
17COMPRESSOR W/ ELECTRICALS
185303305677 Frigidaire Replacement Filter Dryer Filters
19RELAY-TL
20AWCI 3202891
20WCI 3202863
21WCI 5303209254
22WCI 5303211232
23CAPACITOR
25WCI 5308000728
265308000133 Frigidaire Refrigerator Clamp
27WCI 5308009754
28EVAPORATOR
295308000110 Frigidaire Refrigerator Evaporator/Heater Primary Strap
30INSULATOR-EVAP, PLASTIC
31INSULATION BLOCK, RH
32INSULATION PLUG, RH
33INSULATION BLOCK, LH
345303917954 Frigidaire Refrigerator Defrost Limit Thermostat Kit
35PAN RETAINER KIT, SERVICE
