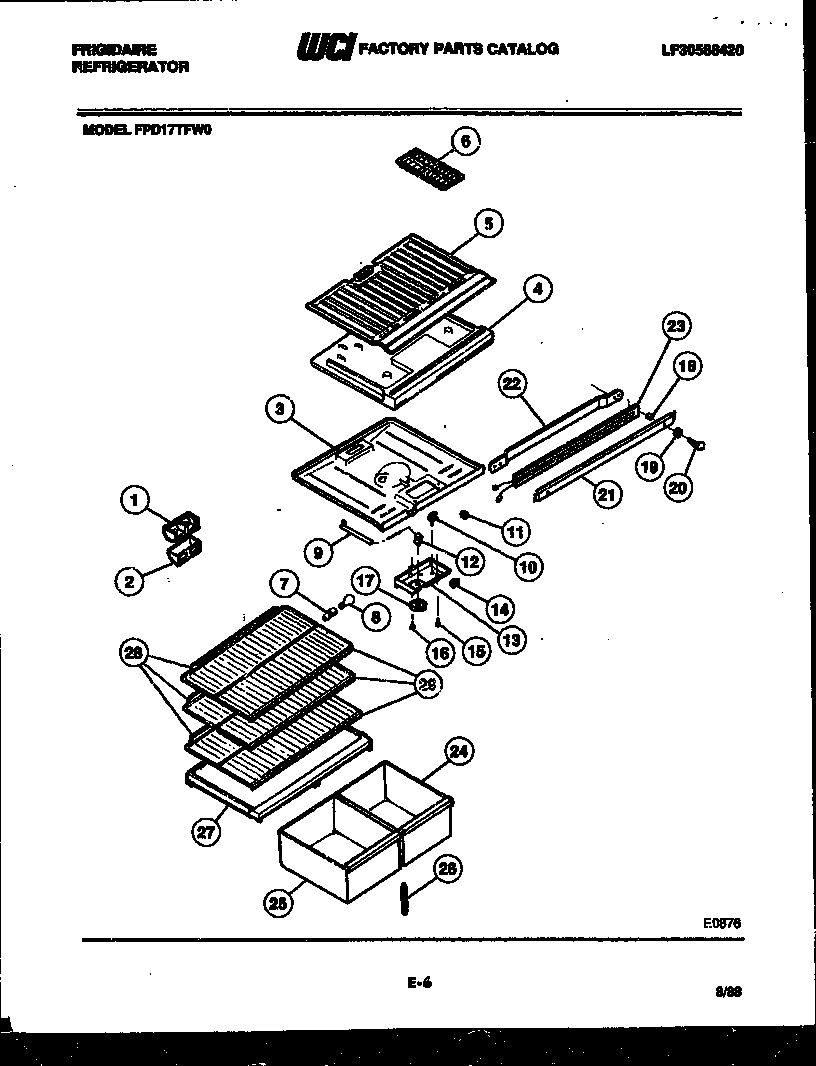

FPD17TFW0 04 – SHELVES AND SUPPORTS

FPD17TFW0 04 – SHELVES AND SUPPORTS

Written by

in

FPD17TFW0 04 – SHELVES AND SUPPORTS

Products

PositionProduct
1WCI 8000071
2WCI 8000055
3ASCREW-TOP MOUNTING (3)
3TOP PANEL-REFR
4OVEN LINER BACK
4AWCI 3018900
5WCI 8015543
6ICE CUBE TRAY (2)
7WCI 8000815
8316538904 Frigidaire Oven Lamp Light
9WCI 3018891
10215846602 Frigidaire Refrigerator 8-Hour Defrost Timer
11SWITCH, LIGHT
12CONTROL-TEMPERATURE
13CONTROL BOX
14WCI 3018896
15WCI 8000008
16SCREW-CONTROL MOUNTING (2) (NON-ILLUSTRATED)
17KNOB, TEMP CONTROL
18WCI 8010007
19WCI 8003607
20SCREW-HINGE/MULLION (4)
21WCI 3200465
22WCI 8003604
23WCI 8000744
24PAN-CRISPER RH
25PAN-CRISPER LH
26WCI 3018874
27WCI 3018892
28WCI 3200651
29WCI 8010287
