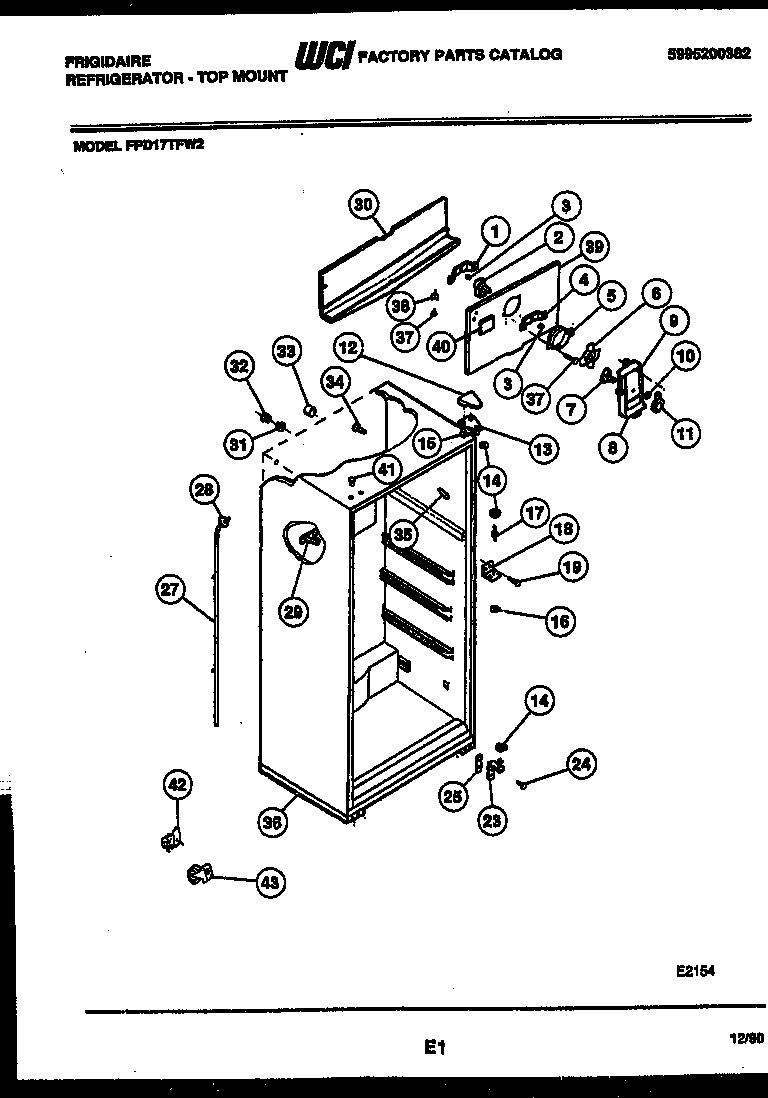

FPD17TFW2 03 – CABINET PARTS

FPD17TFW2 03 – CABINET PARTS

Written by

in

FPD17TFW2 03 – CABINET PARTS

Products

PositionProduct
*400215304455651 Frigidaire Refrigerator Screw
*40021WCI 5303212598
*40021PLUG, BUTTON, CABINET LINER (NI)
*40021WCI 5308011326
1BRACKET-MOTOR MTG, REAR
25300158289 Frigidaire Evaporator Fan Motor
3G187559 Frigidaire Refrigerator Bushing
4WCI 5303001226
5RING-FAN ORIFICE
65308000010 Frigidaire Refrigerator Evaporator Fan Blade
7DAMPER-FAN COVER
8FAN COVER
9WCI 08009822
10Nut,push-on
11KNOB, DAMPER
11ALABEL, KNOB
12COVER-UPPER HINGE, WHITE
13BRACKET-UPPER HINGE
14WASHER, .34 X .62 X .05, NYLON
15SHIM – UPPER HINGE
16WCI 5308000186
17WCI 5308000184
18BRACKET-CTR HINGE
19WCI 5308012258
23BRACKET-LOWER HINGE, W/ HINGE PIN
23ATAPPING PLATE, GUSSET, LH (NOT ILLUSTRATED)
23BTAPPING PLATE, GUSSET, RH (NOT ILLUSTRATED)
24241710601 Frigidaire Refrigerator Screw
25ATAPPING PLATE, UPPER HINGE (2) (NOT ILLUSTRATED)
25WCI 5303212488
27WCI 5303210377
28WCI 5303207353
29AWCI 5303001361
29WCI 5308000056
30TROUGH-DRAIN
31WCI 5303001286
32WCI 5303001287
33TUBE-RUBBER
34SUPPORT-COIL COVER
35TRIM-CABINET CORNER, WHITE
36BASE-CABINET
37ANUT, “U“ TYPE, NO. 8-15(A), FAN MOTOR MOUNT (NOT ILLUSTRATED)
375304455650 Frigidaire Refrigerator Screw
38WCI 5308000107
39WCI 3001527
39A5303208309 Frigidaire Refrigerator Plug Hole
40BUTTON – DECORATIVE PLUG
41PLUG-BUTTON, WHITE
42ABOLT-ROLLER MTG, HEX WASHER HEAD, 1/4-28 X 1/2, (2)
42WCI 5308009773
43WCI 5303212490
