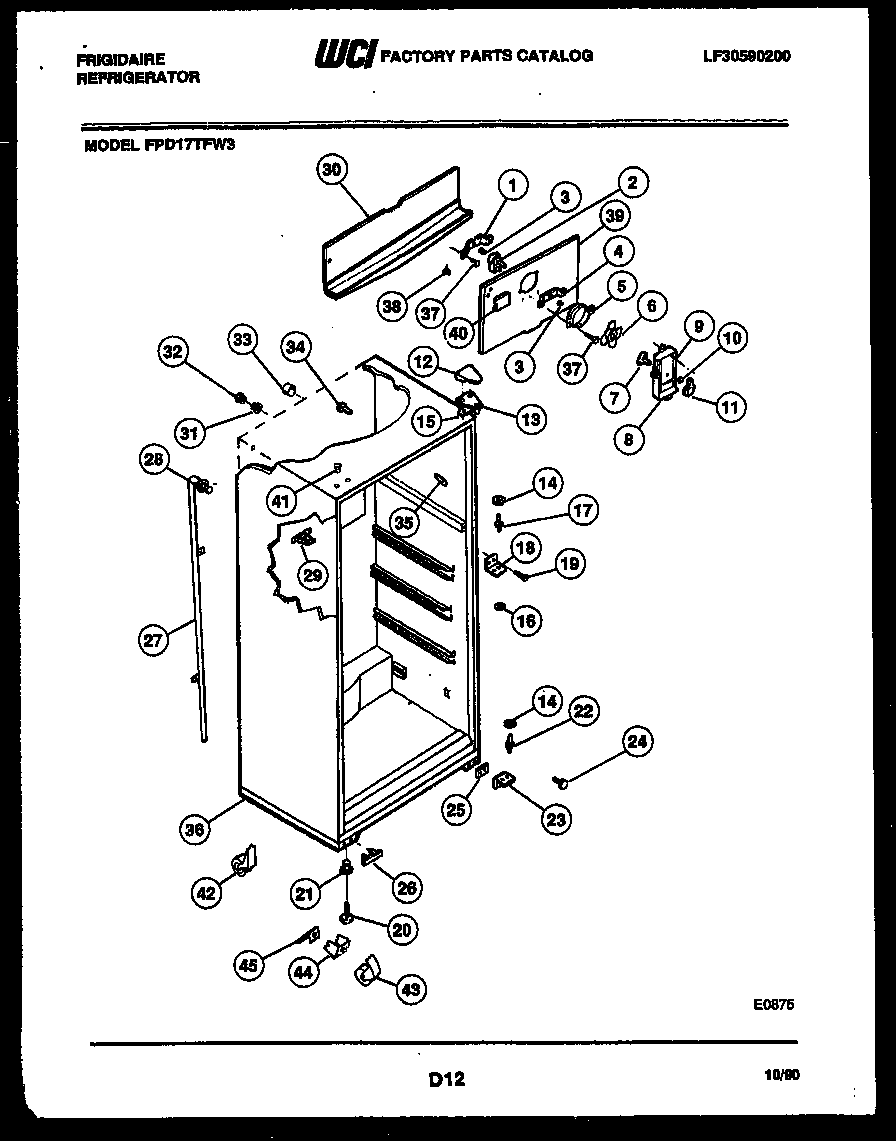

FPD17TFW3 03 – CABINET PARTS

FPD17TFW3 03 – CABINET PARTS

Written by

in

FPD17TFW3 03 – CABINET PARTS

Products

PositionProduct
*36657WCI 5308011326
*36657PLUG, BUTTON, CABINET LINER (NI)
*36656BOLT-ROLLER ADJ, (2) (NON-ILLUSTRATED)
1WCI 5303001227
25300158289 Frigidaire Evaporator Fan Motor
3G187559 Frigidaire Refrigerator Bushing
4WCI 5303001226
5RING-FAN ORIFICE
65308000010 Frigidaire Refrigerator Evaporator Fan Blade
7DAMPER-FAN COVER
8FAN COVER
9WCI 08009822
10Nut,push-on
11KNOB, DAMPER
11ALABEL, KNOB
12COVER-UPPER HINGE, WHITE
13BRACKET-UPPER HINGE
14WASHER, .34 X .62 X .05, NYLON
15SHIM – UPPER HINGE
16WCI 5308000186
17WCI 5308000184
18BRACKET-CTR HINGE
19WCI 5308012258
20SCREW-LEVELING (4)
21WCI 5308003584
225303001321 Frigidaire Refrigerator Lower Hinge Pin
23HINGE BRACKET – BOTTOM
24241710601 Frigidaire Refrigerator Screw
25ATAPPING PLATE, UPPER HINGE (2) (NOT ILLUSTRATED)
25SHIM-LOWER HINGE
26COVER-HOLE, LOWER HINGE
27WCI 5303210377
28WCI 5303207353
29WCI 5308000056
29AWCI 5303001361
30TROUGH-DRAIN
31WCI 5303001286
32WCI 5303001287
33TUBE-RUBBER
34SUPPORT-COIL COVER
35TRIM-CABINET CORNER, WHITE
36WCI 08010091
37ANUT, “U“ TYPE, NO. 8-15(A), FAN MOTOR MOUNT (NOT ILLUSTRATED)
375304455650 Frigidaire Refrigerator Screw
38WCI 5308000107
39WCI 3001527
39A5303208309 Frigidaire Refrigerator Plug Hole
40BUTTON – DECORATIVE PLUG
41PLUG-BUTTON, WHITE
42ABOLT-ROLLER MTG, HEX WASHER HEAD, 1/4-28 X 1/2, (2)
42WCI 5308009773
42B5304455651 Frigidaire Refrigerator Screw
43WCI 5308009760
44SUPPORT, BASE (2)
45WCI 5308009790
