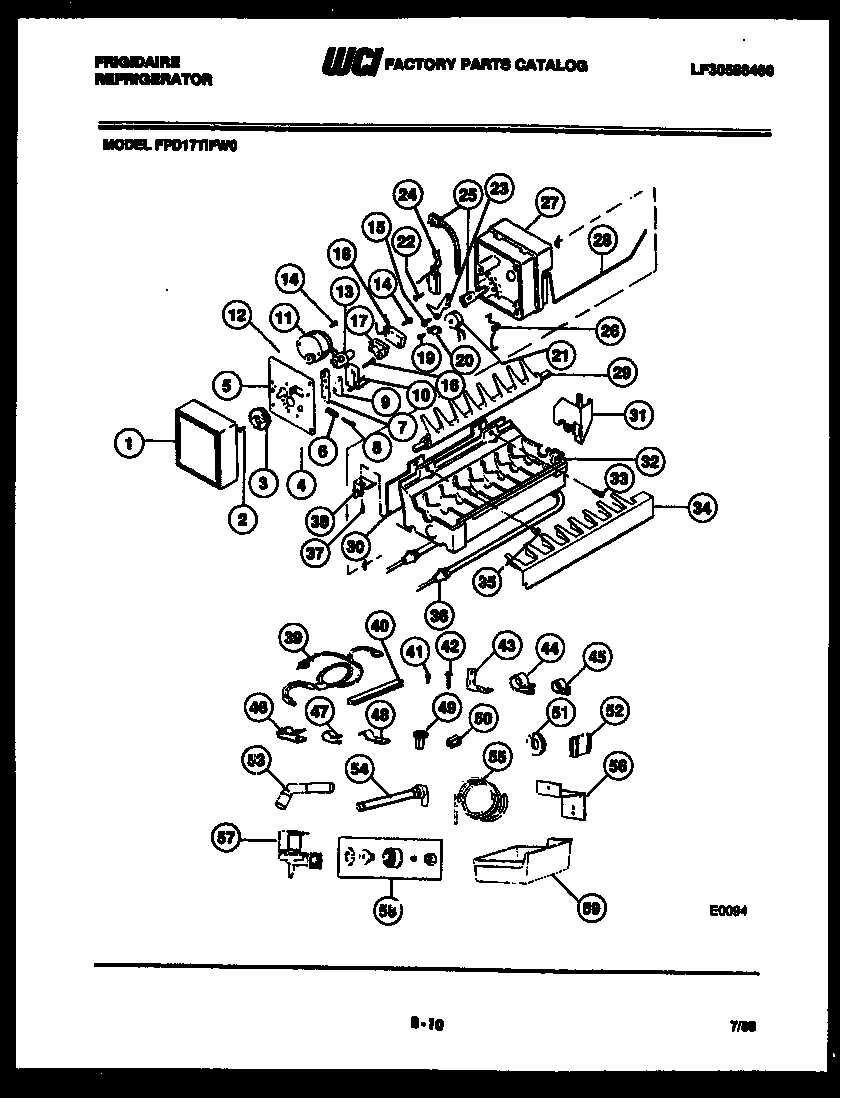

FPD17TIFF0 06 – ICE MAKER AND INSTALLATION PARTS

Products

Position	Product
1	WCI 8000214
1A	WCI 8005251
2	WCI 8001182
3	WCI 8001248
4	SCREW (3)
5	WCI 8017559
6	WCI 8001251
7	PLATE-VALVE SW.
8	SCREW 8-32 X 1
9	WCI 8001241
11	WCI 8001244
12	WCI 8001156
13	WCI 8001247
14	WCI 8001148
15	WCI 8001255
16	SCREW 4-40 X 3/4 (2)
17	SPACER-HOLD. SW.
19	WCI 8000191
20	WCI 8001236
21	WCI 8001250
22	SCREW 4-24 X 3/4
23	ARM-LEVER
24	SWITCH-SHUT OFF
25	WCI 8014553
26	SPRING-SHUT OFF
27	WCI 8001235
28	ARM-SHUT OFF
29	WCI 8001253
30	WCI 8000236
31	BEARING & INLET
32	WCI 8001254
33	WCI 8005288
34	STRIPPER-ICE
35	EYELET (2)
36	WCI 8001243
37	SCREW
38	WCI 8001246
39	WCI 3001567
39A	WCI 8950138
40	SEALING STRIP-BULK
41	SCREW-BRACKET MOUNTING (4) (NON-ILLUSTRATED)
42	WCI 8010253
43	CLAMP-STRAIN RELIEF (3)
44	WCI 8008782
45	WCI 8000221
46	WCI 8009561
47	WCI 8000250
48	CLIP-TUBE
49	WCI 8010335
50	NUT 7/16-20 NYLON
51	WCI 8000241
52	PLUG-ADAPTER
53	TUBE-FILLER
54	TUBE-INLET
55	WCI 8000199
56	BRACKET-WATER VALVE
57	WCI 3001569
58	WCI 8000205
59	5303212918 Frigidaire Refrigerator Cont
