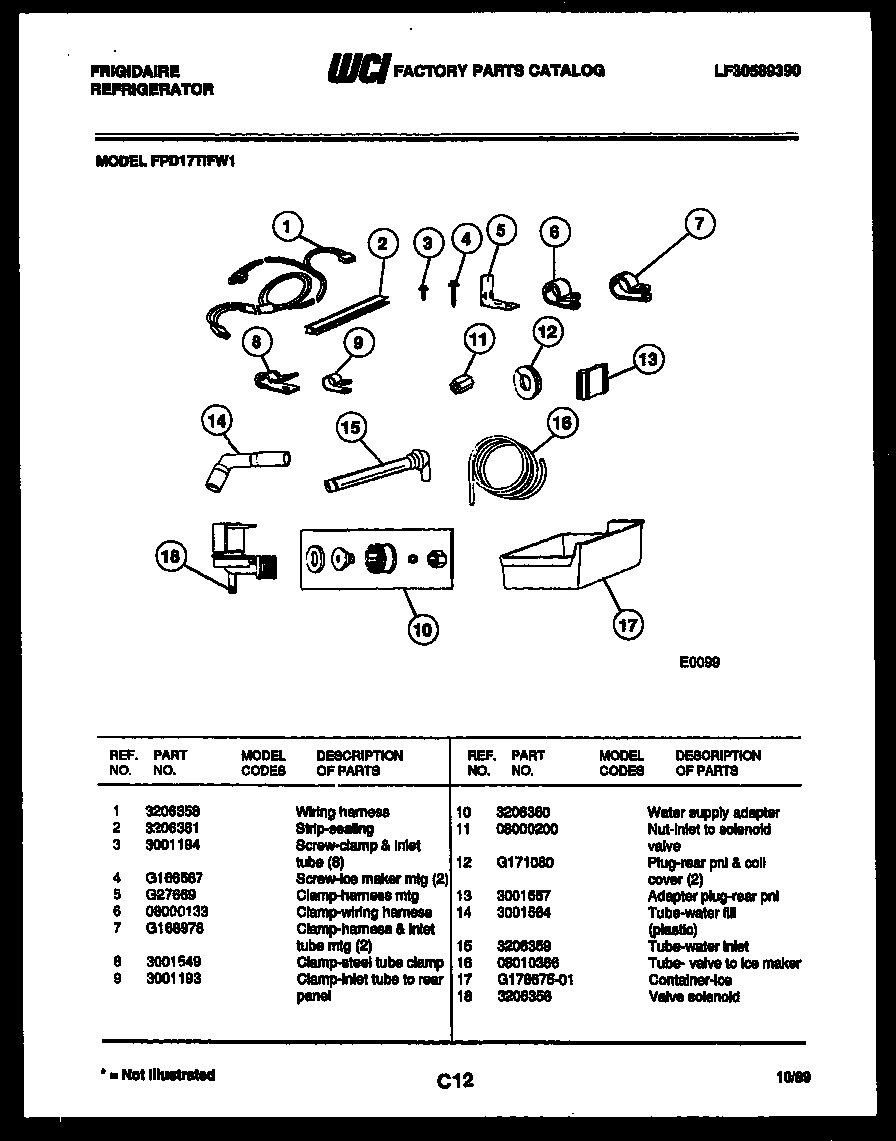

FPD17TIFL1 07 – ICE MAKER INSTALLATION PARTS

Products

Position	Product
1	HARNESS-WIRING, ICE MAKER
2	5305877995 Frigidaire Refrigerator P-1 Sealing Strip
3	5308000039 Frigidaire Refrigerator Screw
4	5304455852 Frigidaire Refrigerator Screw
5	5303001199 Frigidaire Refrigerator Wiring Harness Clamp
6	240396801 Frigidaire Refrigerator Tube Clamp
8	5304455846 Frigidaire Refrigerator Clamp
9	5303001193 Frigidaire Refrigerator Clamp
10	ADAPTER-WATER SPLY
11	WCI 08000200
12	5303001147 Frigidaire Refrigerator Plug-Harness Hole
13	WCI 3001557
14	WCI 3001564
15	215456100 Frigidaire Refrigerator Water Inlet Tube
16	5308010366 Frigidaire Refrigerator P1-Water Inlet Tube
17	5303212918 Frigidaire Refrigerator Cont
18	VALVE-WATER
