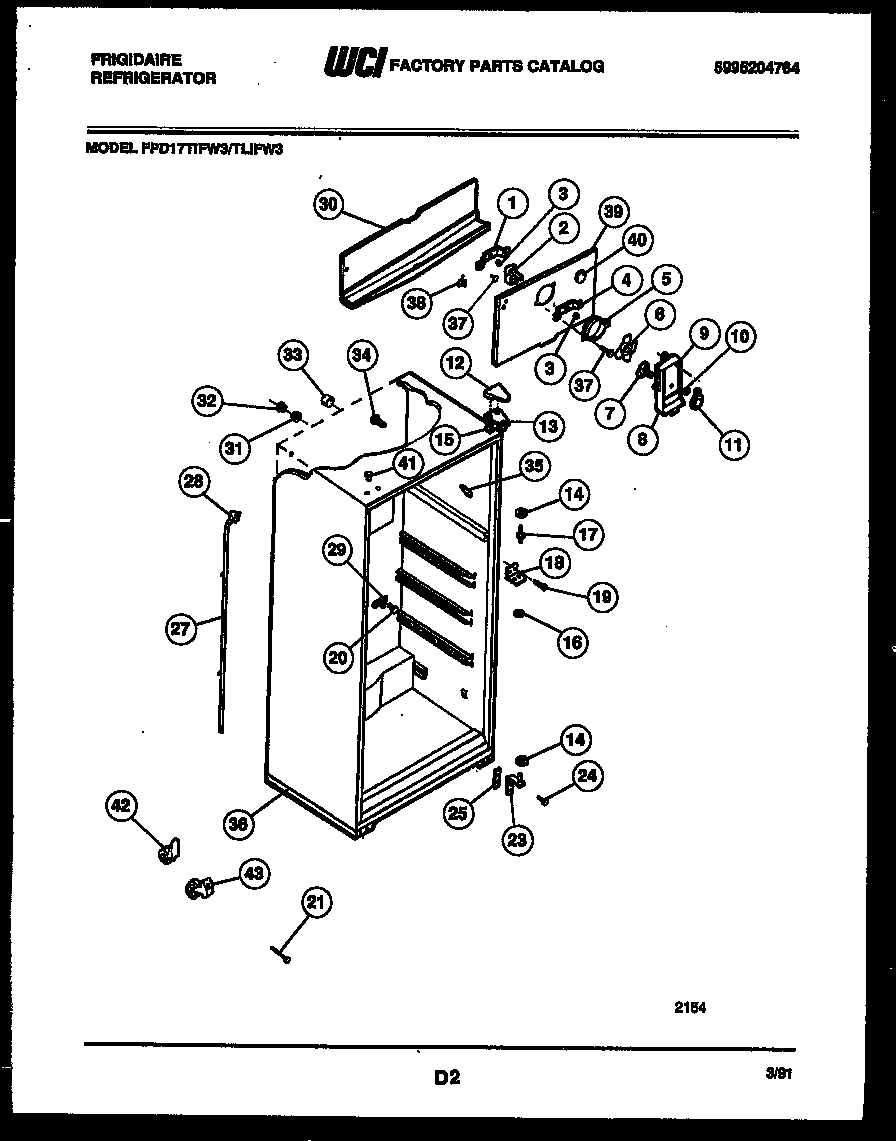

FPD17TIFL3 03 – CABINET PARTS

FPD17TIFL3 03 – CABINET PARTS

Written by

in

FPD17TIFL3 03 – CABINET PARTS

Products

PositionProduct
*42583PLUG, BUTTON, CABINET LINER (NI)
1BRACKET-MOTOR MTG, REAR
25300158289 Frigidaire Evaporator Fan Motor
3G187559 Frigidaire Refrigerator Bushing
4WCI 5303205118
5RING-FAN ORIFICE
65308000010 Frigidaire Refrigerator Evaporator Fan Blade
7DAMPER-FAN COVER
8FAN COVER
9WCI 08009822
10Nut,push-on
11KNOB, DAMPER
11ALABEL, KNOB
12COVER-UPPER HINGE, ALMOND
13BRACKET-UPPER HINGE
14WASHER, .34 X .62 X .05, NYLON
15SHIM – UPPER HINGE
16WCI 5308000186
17WCI 5308000184
18BRACKET-CTR HINGE
19WCI 08012258
20WCI 5303001361
21BOLT-ROLLER ADJ, HEX HD, 1/4-28 X 2.750
23ATAPPING PLATE, GUSSET, RH (NOT ILLUSTRATED)
23BTAPPING PLATE, GUSSET, LH (NOT ILLUSTRATED)
23BRACKET-LOWER HINGE, W/ HINGE PIN
24241710601 Frigidaire Refrigerator Screw
25WCI 5303212488
25ATAPPING PLATE, UPPER HINGE (2) (NOT ILLUSTRATED)
27WCI 5303210377
28WCI 5303207353
29WCI 5308000056
30TROUGH-DRAIN
31WCI 5303001286
32WCI 5303001287
33TUBE-RUBBER
34SUPPORT-COIL COVER
35TRIM-CABINET CORNER, ALMOND
36BASE-CABINET
375304455650 Frigidaire Refrigerator Screw
37ANUT, “U“ TYPE, NO. 8-15(A), FAN MOTOR MOUNT (NOT ILLUSTRATED)
38WCI 5308000107
39WCI 3001527
405303208309 Frigidaire Refrigerator Plug Hole
41PLUG-BUTTON, ALMOND, UPR HINGE HOLES
42WCI 08009773
42B5304455651 Frigidaire Refrigerator Screw
42ABOLT-ROLLER MTG, HEX WASHER HEAD, 1/4-28 X 1/2, (2)
43WCI 5303212490
