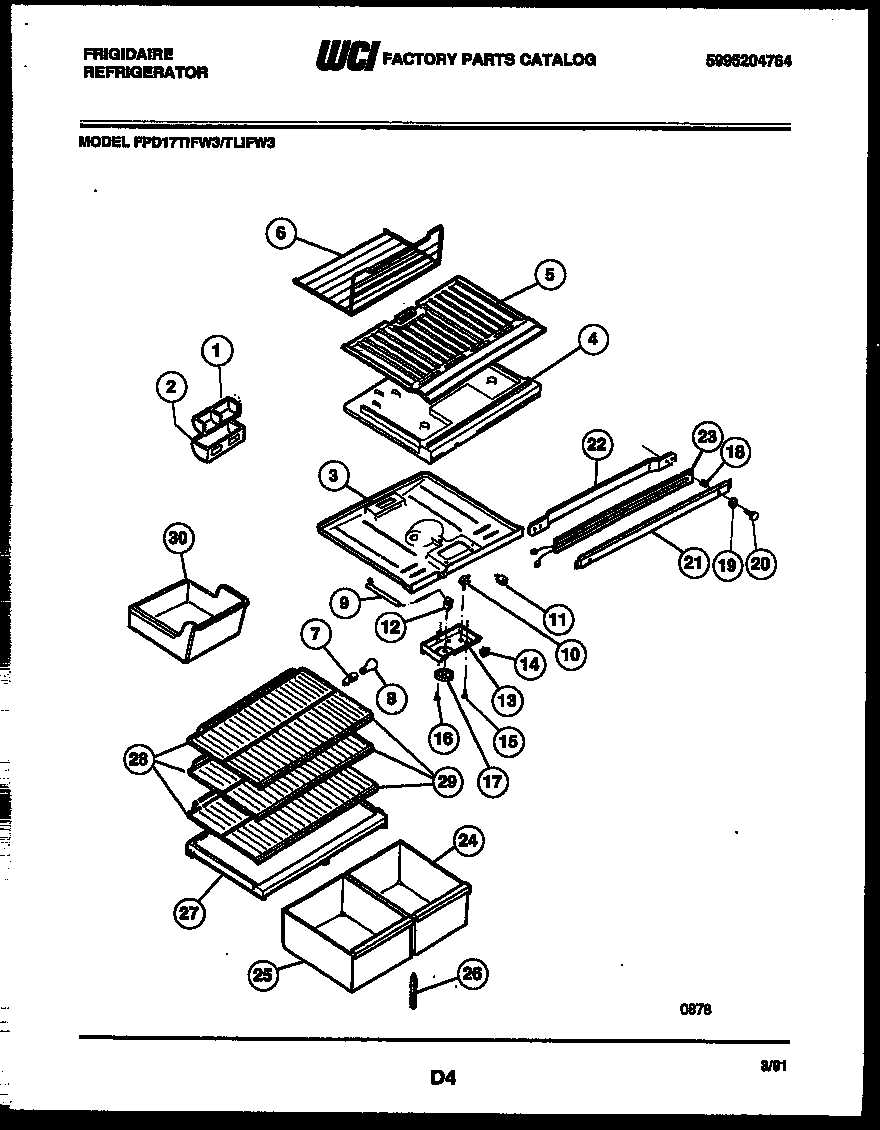

FPD17TIFL3 04 – SHELVES AND SUPPORTS

FPD17TIFL3 04 – SHELVES AND SUPPORTS

Written by

in

FPD17TIFL3 04 – SHELVES AND SUPPORTS

Products

PositionProduct
1DEFLECTRO, AIR, W/SEAL
2AEXTENSION, AIR DEFLECTOR, WITH INSULATION
2WCI 5303001448
3TOP PANEL-REFR
3AWCI 5303001380
4WCI 5303018899
4A3205266 Frigidaire Refrigerator Edge Protector
5WCI 3018900
65303282284 Frigidaire Wire Shelf
6A5304500407 Frigidaire Refrigerator Shelf Mounting Grommet
7218906802 Frigidaire Light Lamp Socket
8316538904 Frigidaire Oven Lamp Light
9WCI 3018891
10215846602 Frigidaire Refrigerator 8-Hour Defrost Timer
115309918806 Frigidaire Refrigerator Light Switch Door
12WCI 5303018894
13CONTROL BOX
14WCI 5303018896
155304455649 Frigidaire Refrigerator Screw
16WCI 5303001260
17KNOB, TEMP CONTROL
18SPACER-MULLION MTG, STEEL
19WASHER, NO. 10 FLAT, 7/32 X 7/16 OD, STEEL (NI)
20WCI 5308012258
21WCI 5303916134
22WCI 5308003604
23WCI 5308017408
24PAN-CRISPER RH
25PAN-CRISPER LH
26SUPPORT-CRISPER CVR, ADJUSTABLE
27WCI 5303018892
28WCI 3200651
29WCI 08010287
305303212918 Frigidaire Refrigerator Cont
