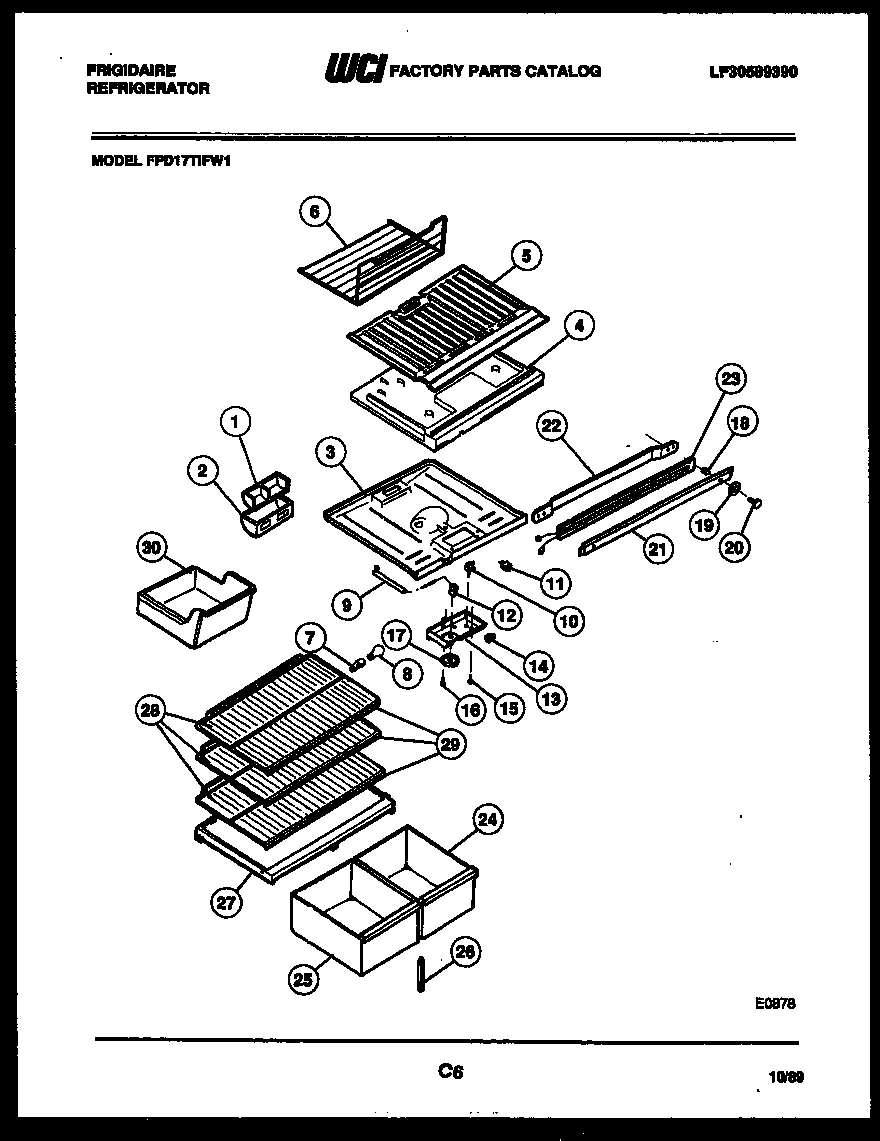

FPD17TIFW1 04 – SHELVES AND SUPPORTS

FPD17TIFW1 04 – SHELVES AND SUPPORTS

Written by

in

FPD17TIFW1 04 – SHELVES AND SUPPORTS

Products

PositionProduct
1WCI 3204206
2WCI 08000055
3AWCI 08000070
3TOP-REFRIGERATOR
4AWCI 3018900
4OVEN LINER BACK
5BOTTOM, FC
6A5304500407 Frigidaire Refrigerator Shelf Mounting Grommet
65303282284 Frigidaire Wire Shelf
7218906802 Frigidaire Light Lamp Socket
8316538904 Frigidaire Oven Lamp Light
9WCI 3018891
10215846602 Frigidaire Refrigerator 8-Hour Defrost Timer
115309918806 Frigidaire Refrigerator Light Switch Door
12CONTROL-TEMPERATURE
13CONTROL BOX
14WCI 3018896
155304455649 Frigidaire Refrigerator Screw
16WCI 08000009
17KNOB, TEMP CONTROL
18SPACER (NON-ILLUSTRATED)
19WASHER-MULLION (4)
20WCI 08012258
21WCI 3200465
22WCI 08003604
23WCI 08000744
24PAN-CRISPER RH
25PAN-CRISPER LH
26SUPPORT-CRISPER CVR, ADJUSTABLE
27WCI 3018892
28WCI 3200651
29WCI 08010287
305303212918 Frigidaire Refrigerator Cont
