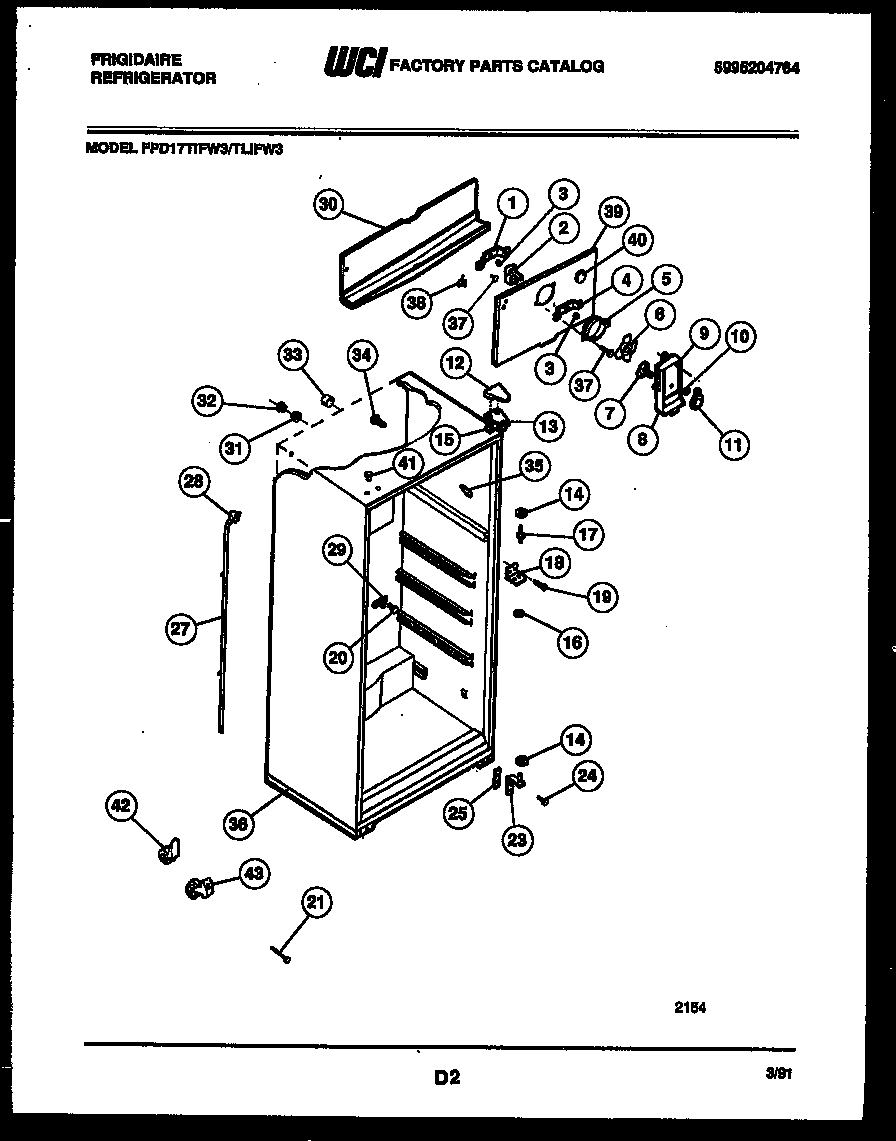

FPD17TLIFL3 03 – CABINET PARTS

Products

Position	Product
*42583	PLUG, BUTTON, CABINET LINER (NI)
1	BRACKET-MOTOR MTG, REAR
2	5300158289 Frigidaire Evaporator Fan Motor
3	G187559 Frigidaire Refrigerator Bushing
4	WCI 5303205118
5	RING-FAN ORIFICE
6	5308000010 Frigidaire Refrigerator Evaporator Fan Blade
7	DAMPER-FAN COVER
8	FAN COVER
9	WCI 08009822
10	Nut,push-on
11	KNOB, DAMPER
11A	LABEL, KNOB
12	COVER-UPPER HINGE, ALMOND
13	BRACKET-UPPER HINGE
14	WASHER, .34 X .62 X .05, NYLON
15	SHIM - UPPER HINGE
16	WCI 5308000186
17	WCI 5308000184
18	BRACKET-CTR HINGE
19	WCI 08012258
20	WCI 5303001361
21	BOLT-ROLLER ADJ, HEX HD, 1/4-28 X 2.750
23A	TAPPING PLATE, GUSSET, RH (NOT ILLUSTRATED)
23B	TAPPING PLATE, GUSSET, LH (NOT ILLUSTRATED)
23	BRACKET-LOWER HINGE, W/ HINGE PIN
24	241710601 Frigidaire Refrigerator Screw
25	WCI 5303212488
25A	TAPPING PLATE, UPPER HINGE (2) (NOT ILLUSTRATED)
27	WCI 5303210377
28	WCI 5303207353
29	WCI 5308000056
30	TROUGH-DRAIN
31	WCI 5303001286
32	WCI 5303001287
33	TUBE-RUBBER
34	SUPPORT-COIL COVER
35	TRIM-CABINET CORNER, ALMOND
36	BASE-CABINET
37	5304455650 Frigidaire Refrigerator Screw
37A	NUT, ``U`` TYPE, NO. 8-15(A), FAN MOTOR MOUNT (NOT ILLUSTRATED)
38	WCI 5308000107
39	WCI 3001527
40	5303208309 Frigidaire Refrigerator Plug Hole
41	PLUG-BUTTON, ALMOND, UPR HINGE HOLES
42	WCI 08009773
42B	5304455651 Frigidaire Refrigerator Screw
42A	BOLT-ROLLER MTG, HEX WASHER HEAD, 1/4-28 X 1/2, (2)
43	WCI 5303212490
