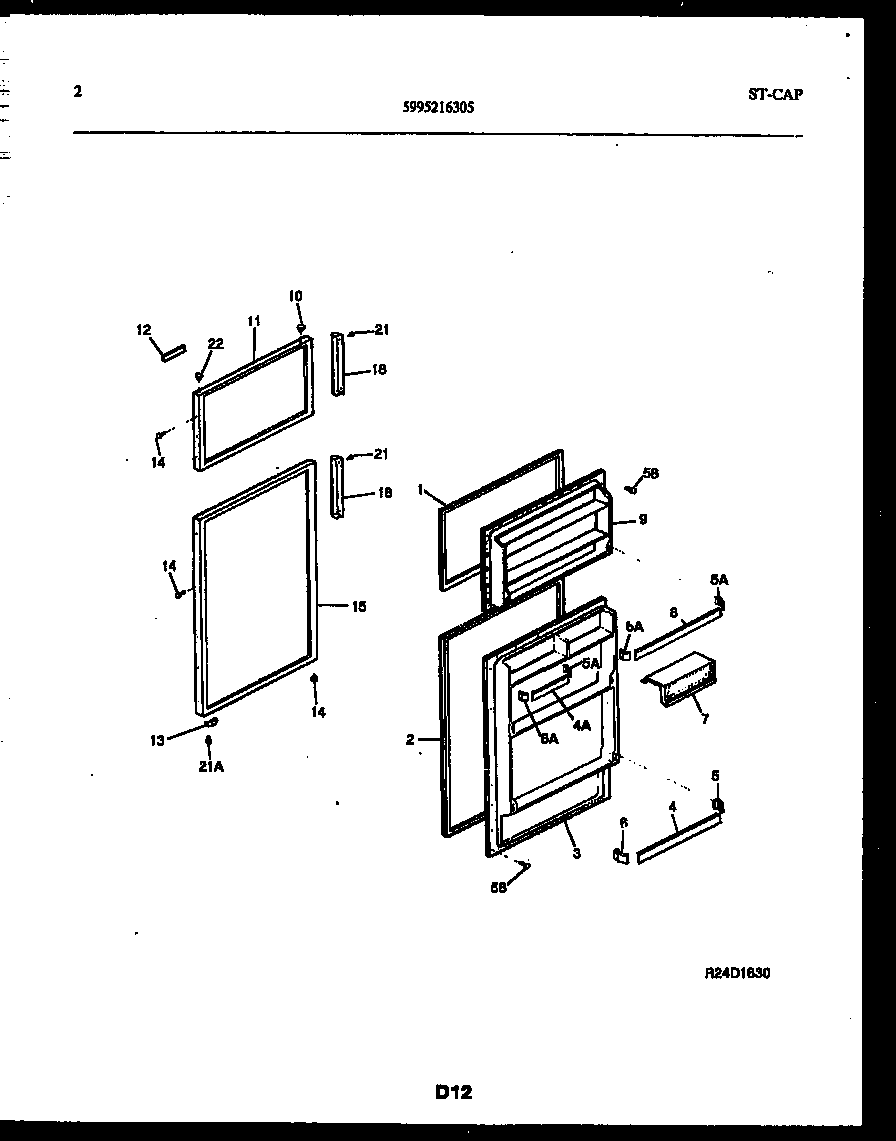

FPD17TLPH1 02 – DOOR PARTSadmin2025-04-26T08:34:45+00:00FPD17TLPH1 02 – DOOR PARTS
Products
| Position | Product |
|---|
| 1 | GASKET, FRZR DOOR, BROWN, MAGNETIC |
| 2 | 218730603 Frigidaire Door Gasket |
| 3 | WCI 3200478 |
| 4 | 215516220 Frigidaire Refrigerator Door Rack |
| 4A | RACK-REFR DOOR |
| 5 | SUPPORT, RH (2) |
| 5A | 5303323480 Frigidaire Refrigerator Door Bar End Cap Rh |
| 6A | 5303323481 Frigidaire Refrigerator Left Hand Door Bar End Cap |
| 6 | SUPPORT, LH (2) (NON-ILLUSTRATED) |
| 7 | WCI 3200582 |
| 8 | WCI 5303018866 |
| 9 | WCI 3018865 |
| 10 | BUTTON-WHEAT |
| 11 | WCI 3916106 |
| 12 | NAMEPLATE |
| 13A | WCI 5308000255 |
| 13 | DOOR STOP, REFR SECTION |
| 14 | BUTTON-WHEAT |
| 15 | WCI 3916111 |
| 18 | HANDLE-DOOR, WHEAT, REFR |
| 21 | SCREW-HANDLE MTG, SPCL CR OVAL HD, 10-24(D) X 5/8, WHEA |
