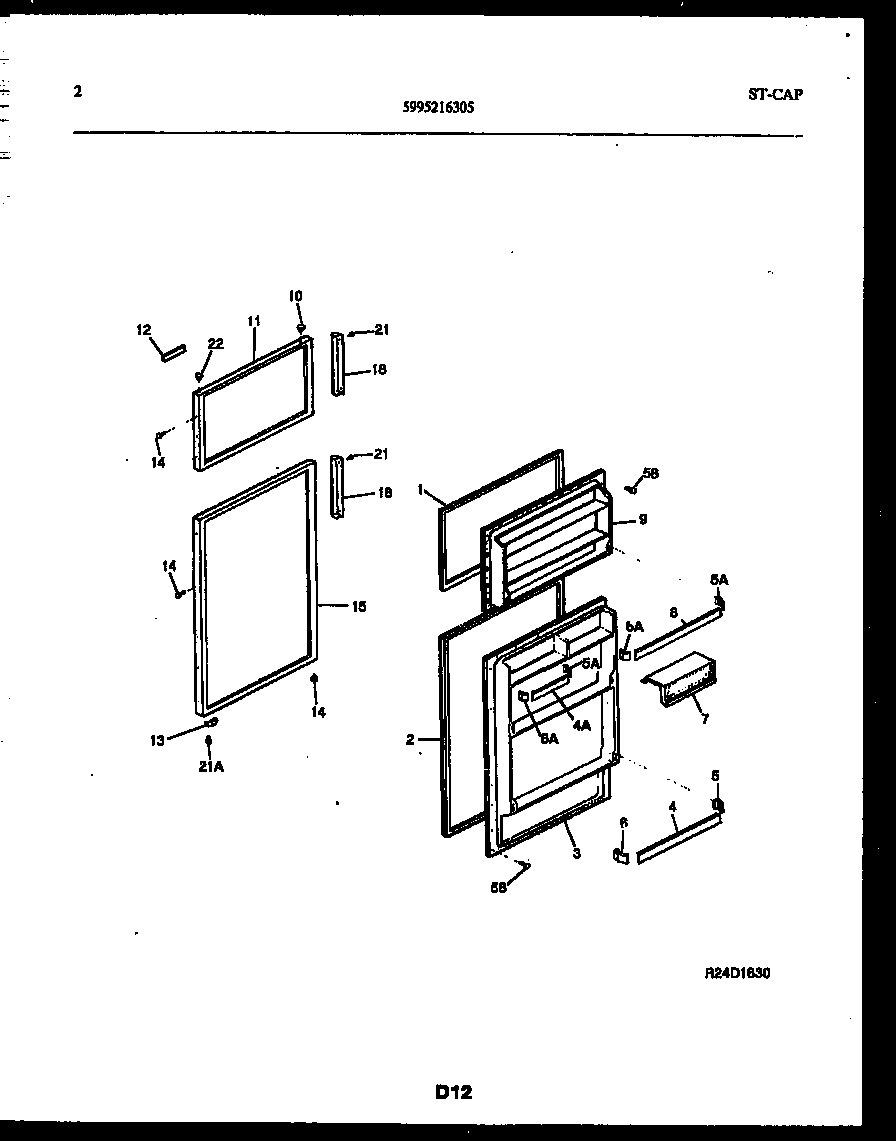

FPD17TLPL1 02 – DOOR PARTS

FPD17TLPL1 02 – DOOR PARTS

Written by

in

FPD17TLPL1 02 – DOOR PARTS

Products

PositionProduct
1GASKET, FRZR DOOR, BROWN, MAGNETIC
2218730603 Frigidaire Door Gasket
3WCI 3200478
4ARACK-REFR DOOR
4215516220 Frigidaire Refrigerator Door Rack
5SUPPORT, RH (2)
5A5303323480 Frigidaire Refrigerator Door Bar End Cap Rh
6A5303323481 Frigidaire Refrigerator Left Hand Door Bar End Cap
6SUPPORT, LH (2) (NON-ILLUSTRATED)
7WCI 3200582
8WCI 5303018866
9WCI 3018865
10PLUG-BUTTON, ALMOND, HINGE BRG HOLE
11WCI 3916108
12NAMEPLATE
13AWCI 5308000255
13DOOR STOP, REFR SECTION
14PLUG-BUTTON, ALMOND, HANDLE/DR STOP
15WCI 3916113
18HANDLE-DOOR, ALMOND, FRZR
21SCREW-HANDLE MTG, CR OVAL HEAD, 10-24(D) X 5/8, ALMOND,
