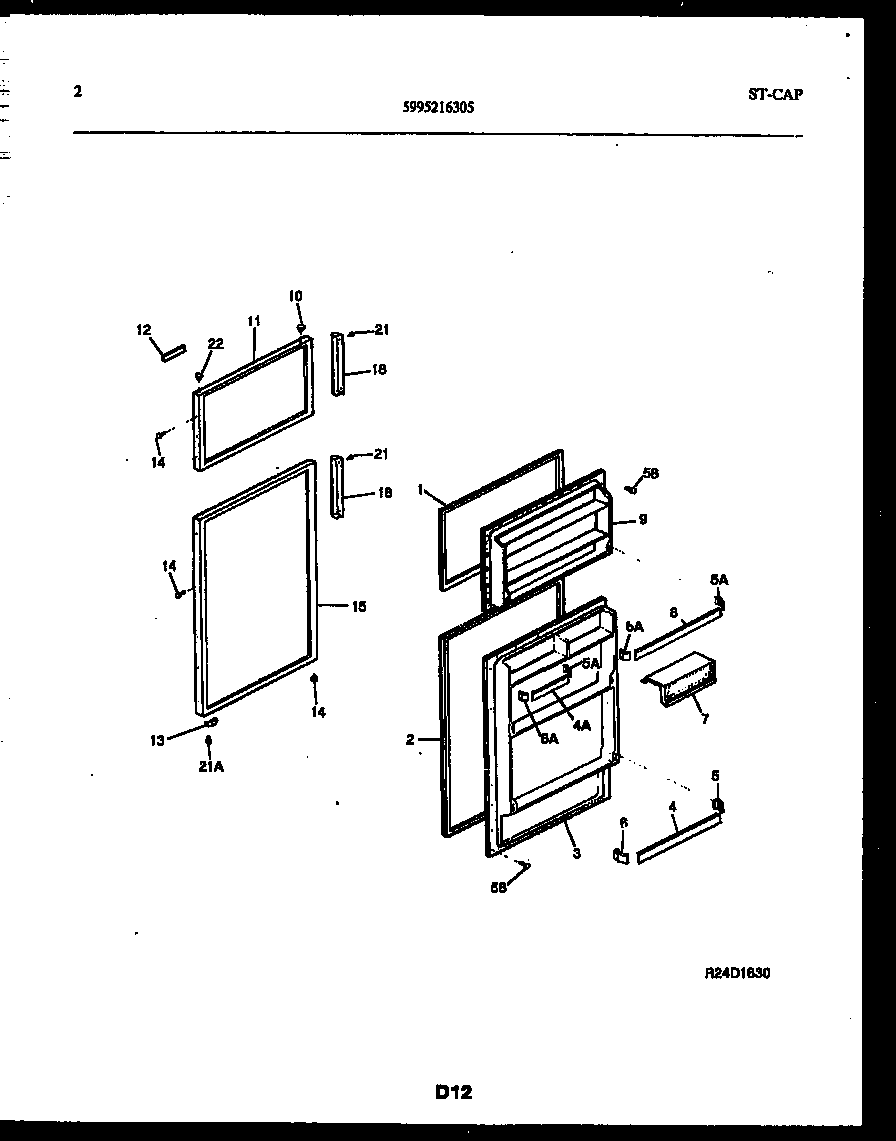

FPD17TLPW1 02 – DOOR PARTS

Products

Position	Product
1	GASKET, FRZR DOOR, BROWN, MAGNETIC
2	218730603 Frigidaire Door Gasket
3	WCI 3200478
4A	RACK-REFR DOOR
4	215516220 Frigidaire Refrigerator Door Rack
5	SUPPORT, RH (2)
5A	5303323480 Frigidaire Refrigerator Door Bar End Cap Rh
6	SUPPORT, LH (2) (NON-ILLUSTRATED)
6A	5303323481 Frigidaire Refrigerator Left Hand Door Bar End Cap
7	WCI 3200582
8	WCI 5303018866
9	WCI 3018865
10	PLUG-BUTTON, WHITE, HINGE BRG HOLE
11	WCI 3916104
12	NAMEPLATE
13	DOOR STOP, REFR SECTION
13A	WCI 5308000255
14	240494001 Frigidaire Refrigerator Plug Button
15	WCI 3916109
18	HANDLE-DOOR, WHITE, FRZR
