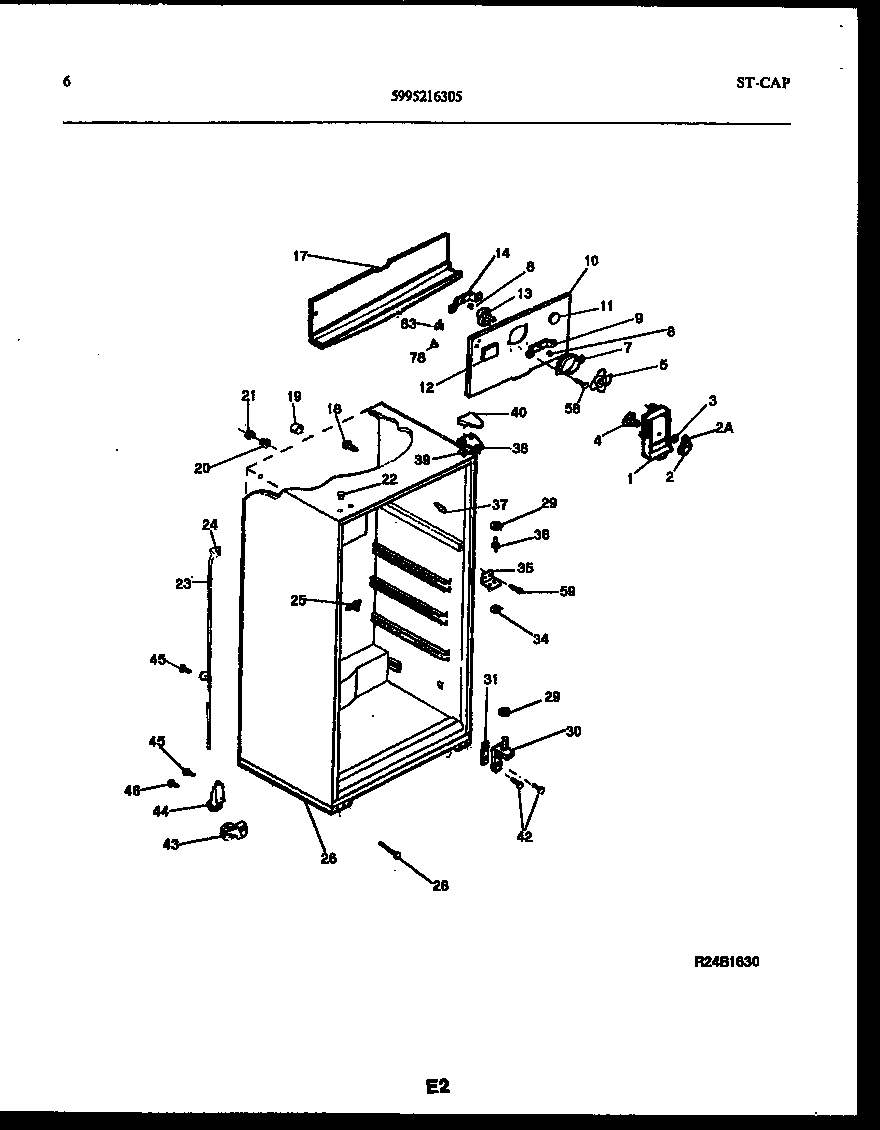

FPD17TLPW1 04 – CABINET PARTS

FPD17TLPW1 04 – CABINET PARTS

Written by

in

FPD17TLPW1 04 – CABINET PARTS

Products

PositionProduct
*57795TAPPING PLATE, GUSSET, LH (NOT ILLUSTRATED)
*57795TAPPING PLATE, GUSSET, RH (NOT ILLUSTRATED)
1B5304455650 Frigidaire Refrigerator Screw
1AWCI 08009822
1FAN COVER
2KNOB, DAMPER
2ALABEL, KNOB
3Nut,push-on
4DAMPER-FAN COVER
55308000010 Frigidaire Refrigerator Evaporator Fan Blade
7RING-FAN ORIFICE
8G187559 Frigidaire Refrigerator Bushing
9WCI 5303205118
10ANUT, “U“ TYPE, NO. 8-15(A), FAN MOTOR MOUNT (NOT ILLUSTRATED)
10WCI 3001527
115303208309 Frigidaire Refrigerator Plug Hole
12BUTTON – DECORATIVE PLUG
135300158289 Frigidaire Evaporator Fan Motor
14BRACKET-MOTOR MTG, REAR
17TROUGH-DRAIN
18SUPPORT-COIL COVER
19TUBE-RUBBER
20WCI 5303001286
21WCI 5303001287
22PLUG-BUTTON, WHITE
23WCI 5303210377
24WCI 5303207353
25AWCI 5303001361
25WCI 5308000056
26BASE-CABINET
28BOLT-ROLLER ADJ, HEX HD, 1/4-28 X 2.750
29WASHER, .34 X .62 X .05, NYLON
30BRACKET-LOWER HINGE, W/ HINGE PIN
