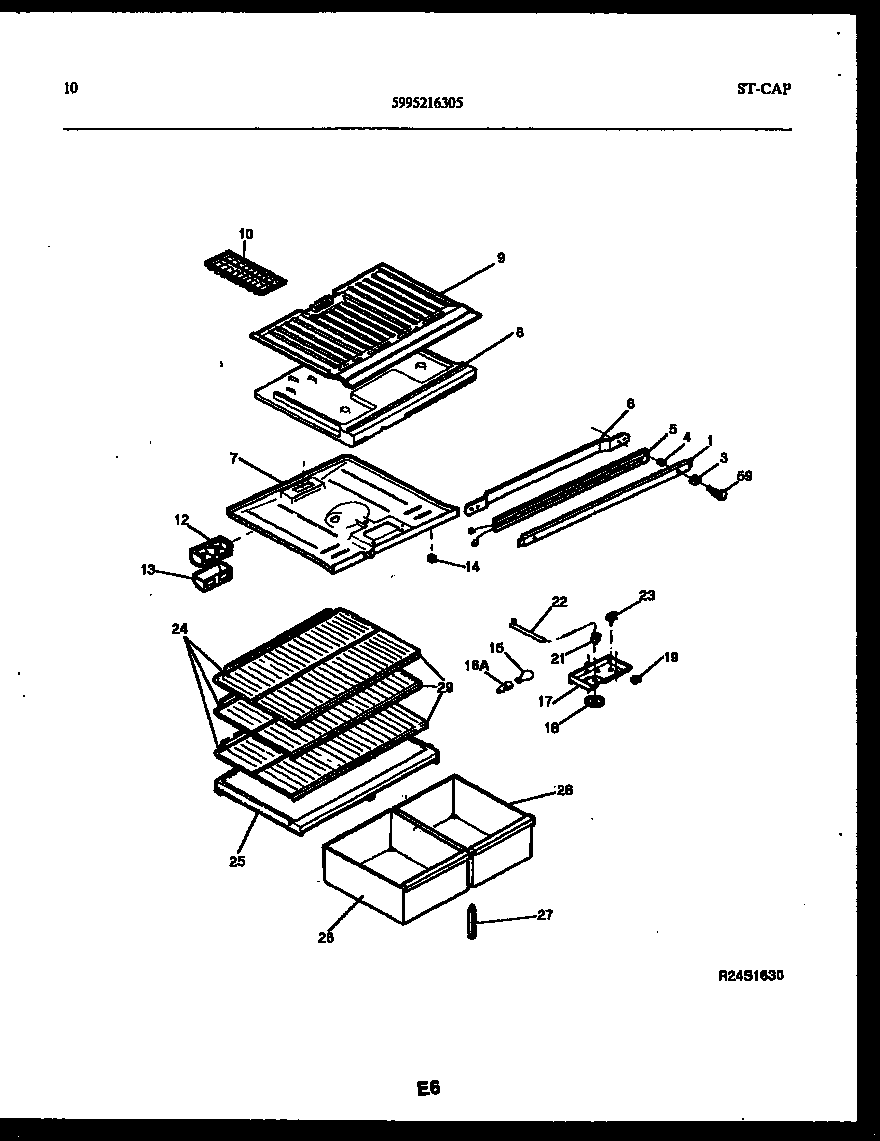

FPD17TPH1 06 – SHELVES AND SUPPORTSadmin2025-04-26T08:34:33+00:00FPD17TPH1 06 – SHELVES AND SUPPORTS
Products
| Position | Product |
|---|
| 1 | WCI 3916132 |
| 3 | WASHER, NO. 10 FLAT, 7/32 X 7/16 OD, STEEL (NI) |
| 4 | SPACER-MULLION MTG, STEEL |
| 5 | WCI 5308017408 |
| 6 | WCI 5308003604 |
| 7 | TOP PANEL-REFR |
| 7A | WCI 5303001380 |
| 8 | WCI 5303018899 |
| 8A | 3205266 Frigidaire Refrigerator Edge Protector |
| 8B | WCI 3018900 |
| 9 | WCI 5303001537 |
| 10 | WCI 01121808 |
| 12 | DEFLECTRO, AIR, W/SEAL |
| 12A | 5303001449 Frigidaire Refrigerator Seal |
| 13 | WCI 5303001448 |
| 13A | EXTENSION, AIR DEFLECTOR, WITH INSULATION |
| 14 | 5309918806 Frigidaire Refrigerator Light Switch Door |
| 15 | 316538904 Frigidaire Oven Lamp Light |
| 16A | 218906802 Frigidaire Light Lamp Socket |
| 17A | 5304455650 Frigidaire Refrigerator Screw |
| 17 | CONTROL BOX |
| 18 | KNOB, TEMP CONTROL |
| 19 | WCI 5303018896 |
| 21 | WCI 5303018894 |
| 21A | WCI 5303001260 |
| 22 | WCI 3018891 |
| 23A | 5304455649 Frigidaire Refrigerator Screw |
| 23 | 215846602 Frigidaire Refrigerator 8-Hour Defrost Timer |
| 24 | SHELF-SLIDING, REFR, (2) |
| 25 | WCI 5303018892 |
