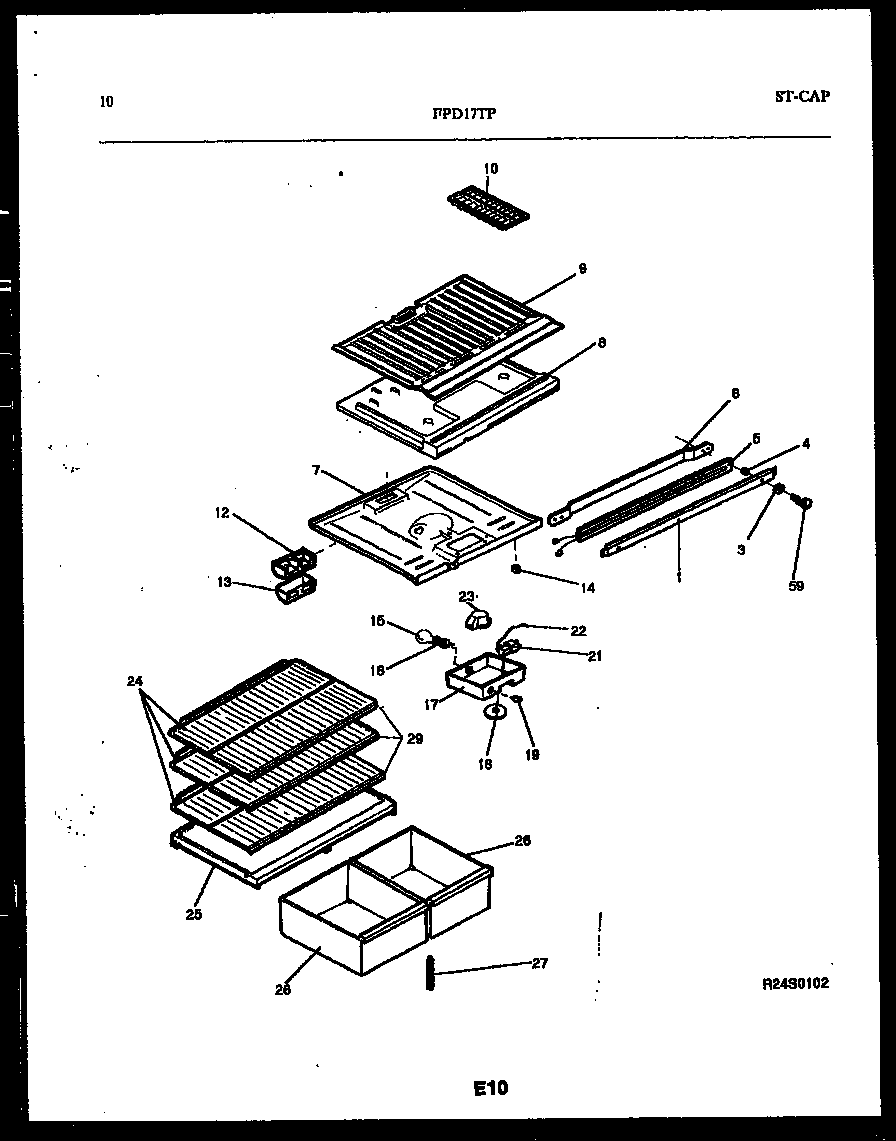

FPD17TPL0 06 – SHELVES AND SUPPORTS

FPD17TPL0 06 – SHELVES AND SUPPORTS

Written by

in

FPD17TPL0 06 – SHELVES AND SUPPORTS

Products

PositionProduct
1WCI 5303916134
3WASHER, NO. 10 FLAT, 7/32 X 7/16 OD, STEEL (NI)
4SPACER-MULLION MTG, STEEL
5WCI 5308017408
6WCI 5308003604
7AWCI 5303001380
7TOP PANEL-REFR
8AWCI 3018900
8WCI 5303018899
9A3205266 Frigidaire Refrigerator Edge Protector
9WCI 5303001537
10WCI 01121808
12A5303001449 Frigidaire Refrigerator Seal
12DEFLECTRO, AIR, W/SEAL
12BEXTENSION, AIR DEFLECTOR, WITH INSULATION
13WCI 5303001448
145309918806 Frigidaire Refrigerator Light Switch Door
15316538904 Frigidaire Oven Lamp Light
16218906802 Frigidaire Light Lamp Socket
17CONTROL BOX
17A5304455650 Frigidaire Refrigerator Screw
18KNOB, TEMP CONTROL
19WCI 5303018896
21WCI 5303018894
21AWCI 5303001260
22WCI 3018891
23A5304455649 Frigidaire Refrigerator Screw
23215846602 Frigidaire Refrigerator 8-Hour Defrost Timer
24WCI 3200651
