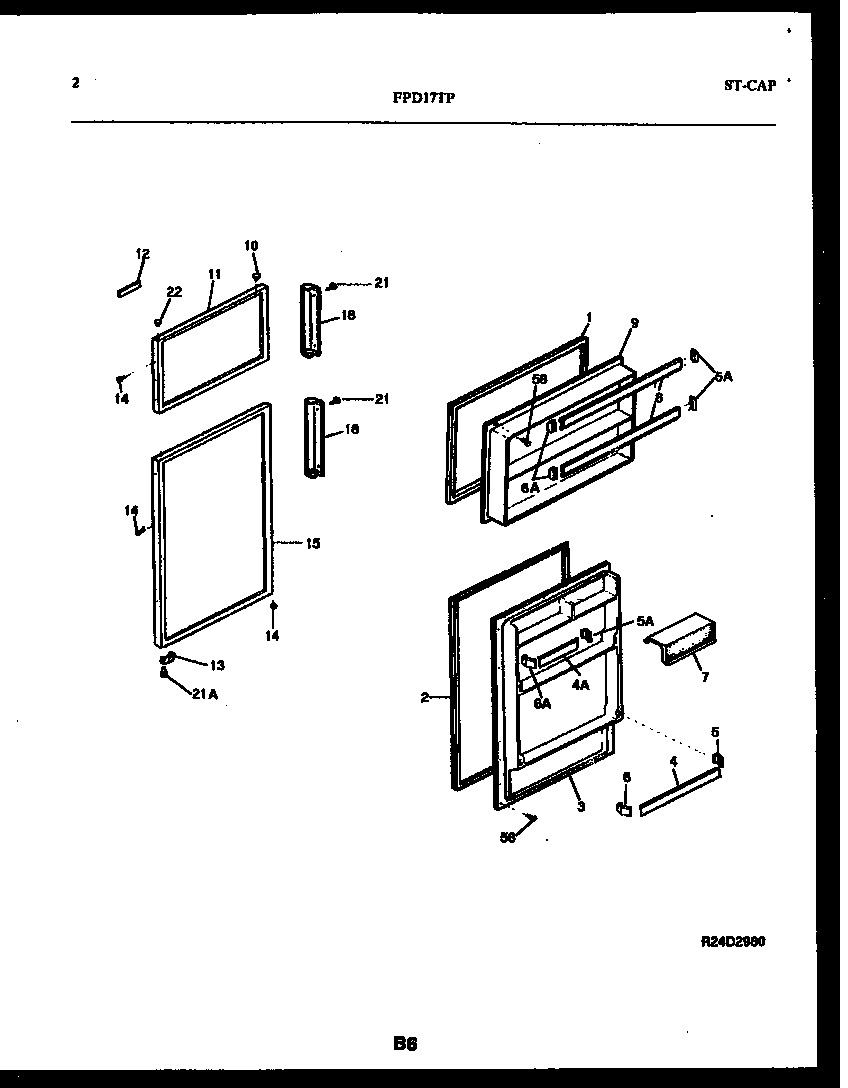

FPD17TPL2 02 – DOOR PARTSadmin2025-04-26T08:34:34+00:00FPD17TPL2 02 – DOOR PARTS
Products
| Position | Product |
|---|
| 1 | GASKET, FRZR DOOR, BROWN, MAGNETIC |
| 2 | 218730603 Frigidaire Door Gasket |
| 3 | WCI 3200478 |
| 4 | 215516220 Frigidaire Refrigerator Door Rack |
| 4A | RACK-REFR DOOR |
| 5A | 5303323480 Frigidaire Refrigerator Door Bar End Cap Rh |
| 5 | SUPPORT, RH (2) |
| 6A | 5303323481 Frigidaire Refrigerator Left Hand Door Bar End Cap |
| 6 | SUPPORT, LH (2) (NON-ILLUSTRATED) |
| 7 | WCI 3200582 |
| 8 | WCI 5303018866 |
| 9 | WCI 3018865 |
| 10 | PLUG-BUTTON, ALMOND, HINGE BRG HOLE |
| 11 | WCI 3916108 |
| 12 | NAMEPLATE |
| 13A | WCI 5308000255 |
| 13 | DOOR STOP, REFR SECTION |
| 14 | PLUG-BUTTON, ALMOND, HANDLE/DR STOP |
| 15 | WCI 3916113 |
| 18 | HANDLE-DOOR, ALMOND, FRZR |
