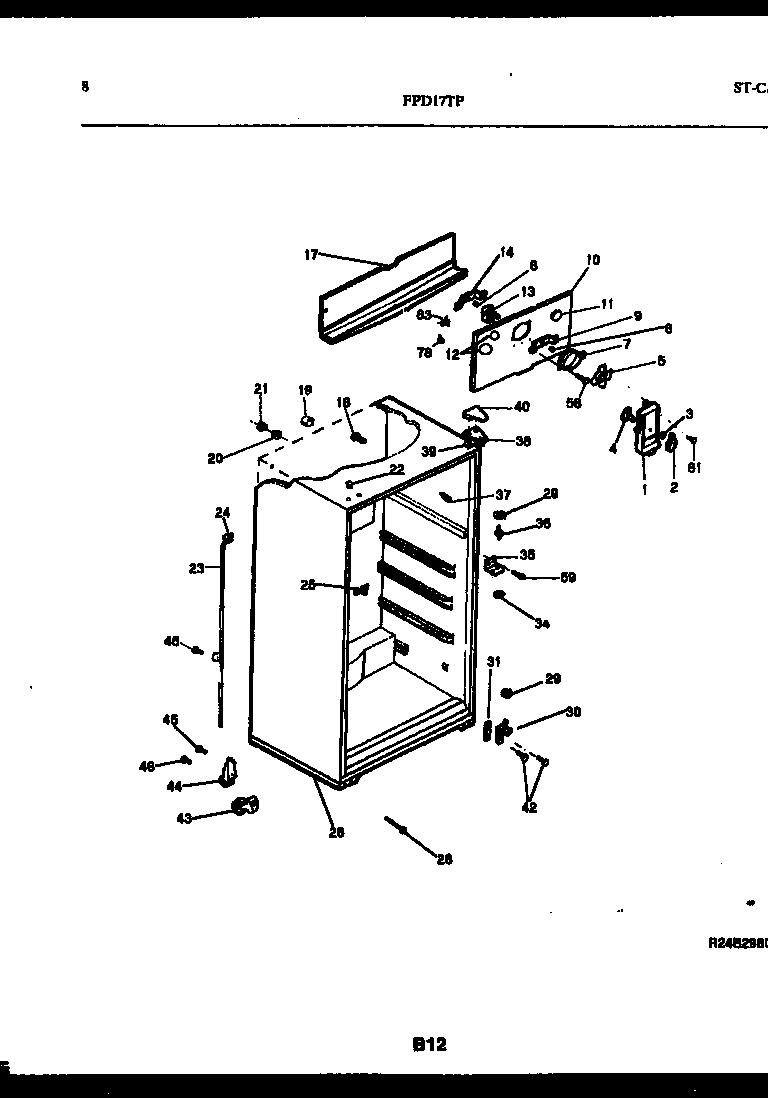

FPD17TPL2 05 – CABINET PARTSadmin2025-04-26T08:34:22+00:00FPD17TPL2 05 – CABINET PARTS
Products
| Position | Product |
|---|
| *67851 | PLUG, BUTTON, CABINET LINER (NI) |
| 30A | TAPPING PLATE, GUSSET, LH (NOT ILLUSTRATED) |
| 30 | BRACKET-LOWER HINGE, W/ HINGE PIN |
| 30B | TAPPING PLATE, GUSSET, RH (NOT ILLUSTRATED) |
| 31 | WCI 5303212488 |
| 34 | WCI 5308000186 |
| 35 | BRACKET-CTR HINGE |
| 36 | WCI 5308000184 |
| 37 | TRIM-CABINET CORNER, ALMOND |
| 38B | TAPPING PLATE, UPPER HINGE (2) (NOT ILLUSTRATED) |
| 38 | BRACKET-UPPER HINGE |
| 39 | SHIM - UPPER HINGE |
| 40 | COVER-UPPER HINGE, ALMOND |
| 42 | 241710601 Frigidaire Refrigerator Screw |
| 43 | WCI 5303212490 |
| 44 | WCI 5308009773 |
| 45 | 5304455651 Frigidaire Refrigerator Screw |
| 46 | BOLT-ROLLER MTG, HEX WASHER HEAD, 1/4-28 X 1/2, (2) |
| 59 | WCI 5308012258 |
| 81 | 5304455650 Frigidaire Refrigerator Screw |
| 83 | WCI 5308000107 |
