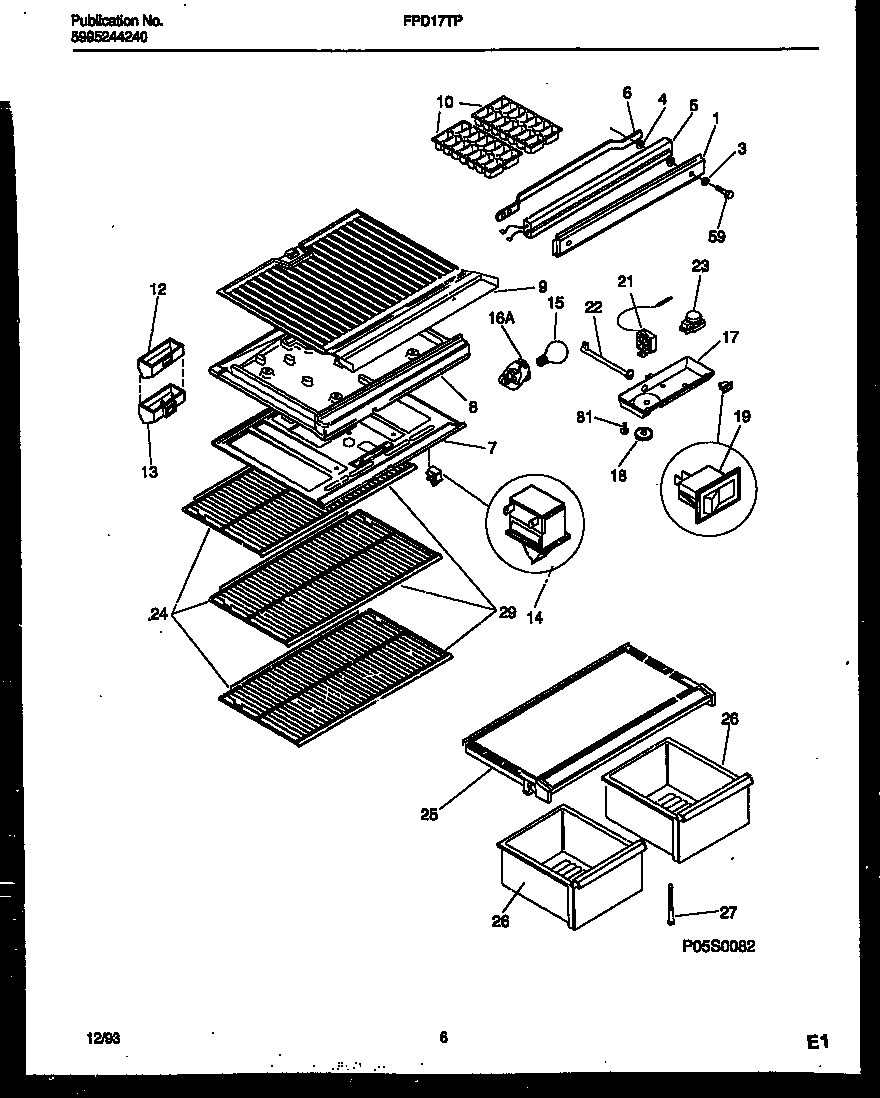

FPD17TPL3 04 – SHELVES AND SUPPORTS

FPD17TPL3 04 – SHELVES AND SUPPORTS

Products

PositionProduct
1WCI 5303916134
3WASHER, NO. 10 FLAT, 7/32 X 7/16 OD, STEEL (NI)
4SPACER-MULLION MTG, STEEL
5WCI 5308017408
6WCI 5308003604
7TOP PANEL-REFR
7AWCI 5303001380
8WCI 5303018899
8AWCI 3018900
9WCI 5303001537
9A3205266 Frigidaire Refrigerator Edge Protector
10215667501 Frigidaire Refrigerator Ice Tray Primary
12DEFLECTRO, AIR, W/SEAL
12BEXTENSION, AIR DEFLECTOR, WITH INSULATION
12A5303001449 Frigidaire Refrigerator Seal
13WCI 5303001448
145309918806 Frigidaire Refrigerator Light Switch Door
15316538904 Frigidaire Oven Lamp Light
16A218906802 Frigidaire Light Lamp Socket
17ANUT, ANCHOR (NI)
17CONTROL BOX
18KNOB, TEMP CONTROL
19WCI 5303018896
21AWCI 5303001260
21WCI 5303018894
22WCI 3018891
23A5304455649 Frigidaire Refrigerator Screw
23215846602 Frigidaire Refrigerator 8-Hour Defrost Timer
24AWCI 5303283297
24SHELF-SLIDING, WIRE, REFR SECTION
25WCI 5303018892
26APAN-CRISPER RH
26PAN-CRISPER LH
27SUPPORT-CRISPER CVR, ADJUSTABLE
29WCI 5303283718
59WCI 5308012258
815304455650 Frigidaire Refrigerator Screw
