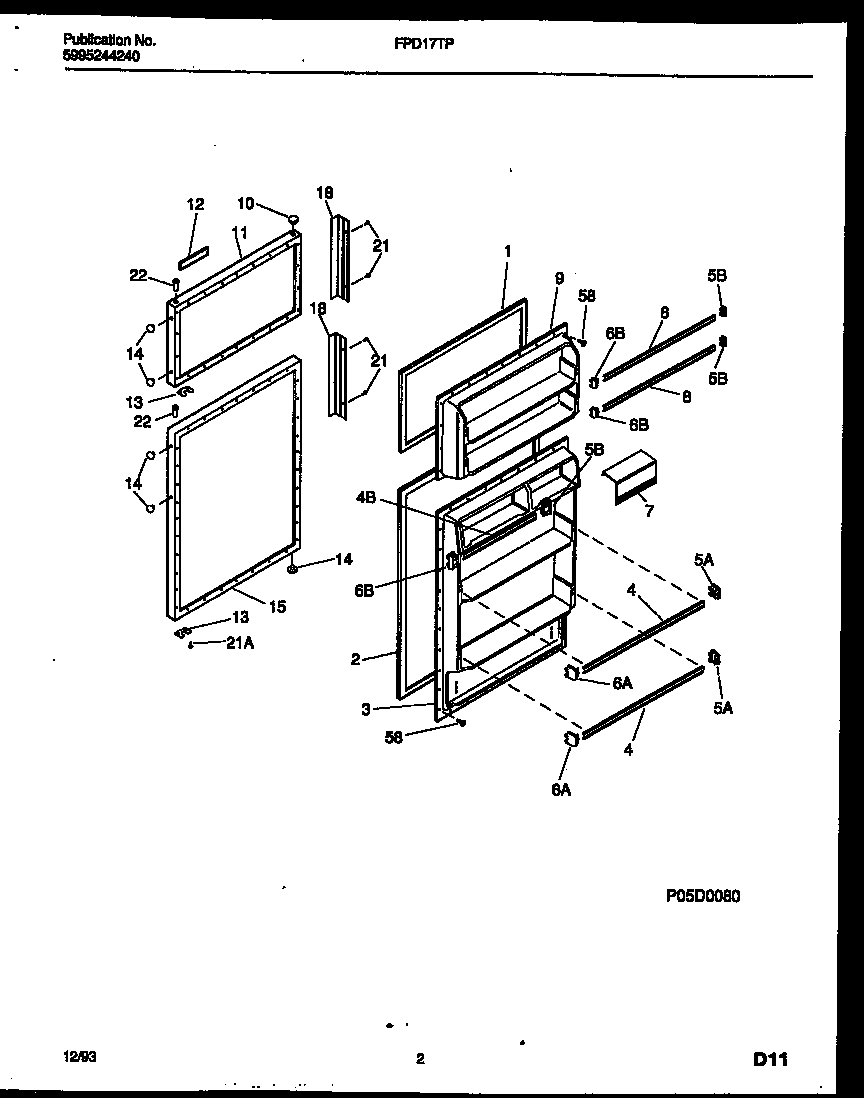

FPD17TPW3 02 – DOOR PARTSadmin2025-04-26T08:34:22+00:00FPD17TPW3 02 – DOOR PARTS
Products
| Position | Product |
|---|
| *89974 | INSULATION |
| 1 | GASKET, FRZR DOOR, BROWN, MAGNETIC |
| 2 | 218730603 Frigidaire Door Gasket |
| 3 | WCI 3200478 |
| 4B | RACK-REFR DOOR |
| 4 | 215516220 Frigidaire Refrigerator Door Rack |
| 5B | 5303323480 Frigidaire Refrigerator Door Bar End Cap Rh |
| 5A | SUPPORT, RH (2) |
| 6B | 5303323481 Frigidaire Refrigerator Left Hand Door Bar End Cap |
| 6A | SUPPORT, LH (2) (NON-ILLUSTRATED) |
| 7 | WCI 3200582 |
| 8 | WCI 5303018866 |
| 9 | WCI 3018865 |
| 10 | PLUG-BUTTON, WHITE, HINGE BRG HOLE |
| 11 | WCI 3916104 |
| 12 | NAMEPLATE |
| 13 | DOOR STOP, REFR SECTION |
| 13A | WCI 5308000255 |
| 14 | 240494001 Frigidaire Refrigerator Plug Button |
| 15 | WCI 3916109 |
| 18 | HANDLE-DOOR, WHITE, FRZR |
| 21A | WCI 5308011745 |
| 21 | SCREW-HANDLE MTG, CR OVAL HEAD, 10-24(D) X 5/8, WHITE, |
| 22 | BEARING-HINGE |
| 58 | 5304455651 Frigidaire Refrigerator Screw |
