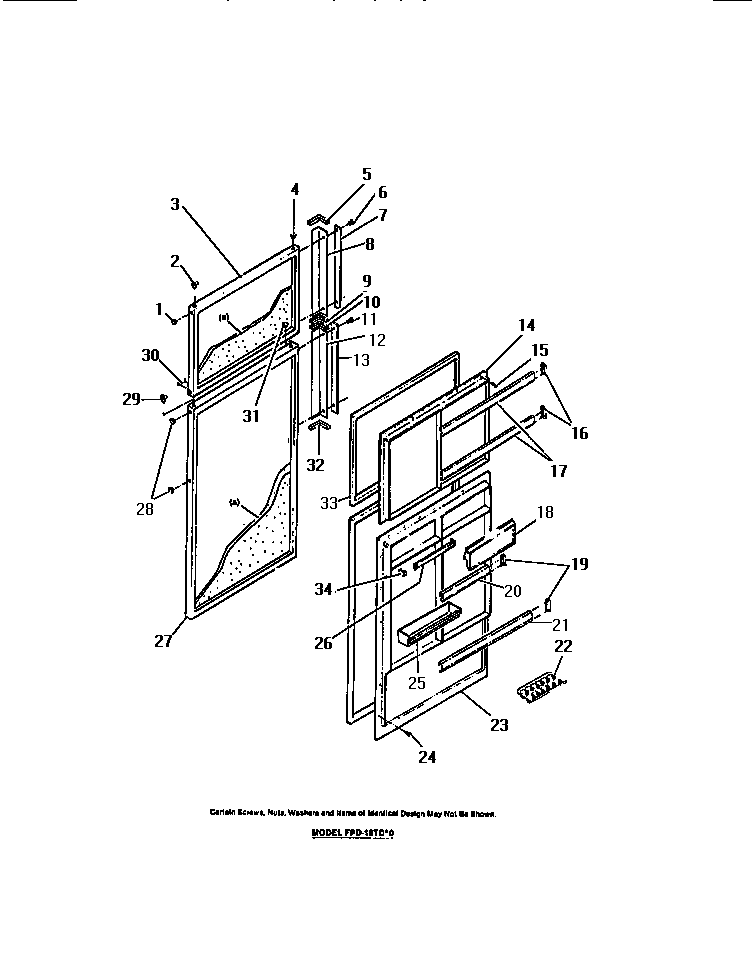

FPD18TCH0 12 – FOOD AND FREEZER DOORS

Products

PositionProduct
*00121WCI 8000138
1PLUG-HANDLE, WHITE
3AWCI 8009833
10END CAP-TOP (2)
11SCREW-HANDLE MOUNTING (4)
12HANDLE ASSY W/ CAP & TRIM
13WCI 8010232
14INNER PANEL-FREEZER
18DOOR-DAIRY
19SUPPORT-RACK RS (2)
19ASUPPORT-RACK LS (2) (NON-ILLUSTRATED)
20DOOR RACK-CENTER
21DOOR RACK-BOTTOM
22EGG TRAY
23PANEL, INTERIOR FOOD DOOR
24SCREW-PANEL MOUNTING (56)
25WCI 80009837
26DOOR RACK-TOP
27AWCI 8009830
28APLUG-HANDLE, WHEAT
29HINGE BEARING (8)
30WCI 8009843
31APLUG-HINGE, WHEAT
32END CAP-BOTTOM (2)
33WCI 8009734
34SUPPORT-RACK RS
34ASUPPORT-RACK LS (NON-ILLUSTRATED)
