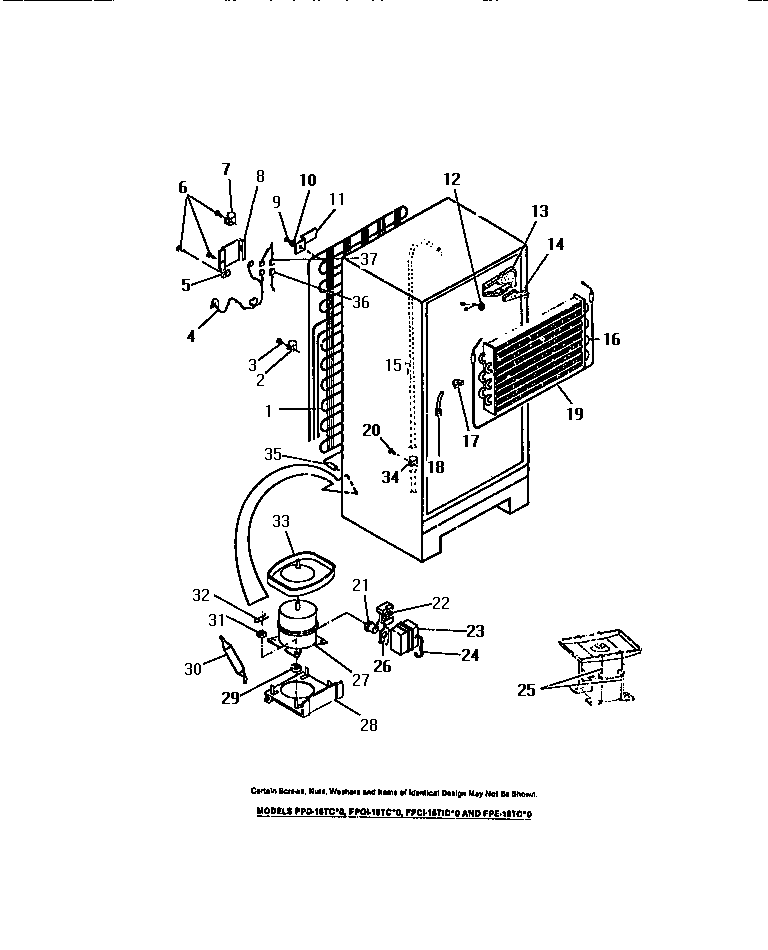

FPD18TCW0 16 – COMPRESSOR, CONDENSER, EVAPORATOR

Products

Position	Product
1	WCI 8008779
2	CLAMP-CABLE (3)
4	WCI 8000064
5	CLAMP-STRAIN RELIEF (3)
6	SCREW-PANEL MOUNTING (56)
7	WCI 8000187
8	WCI 8013644
10	WCI 80009617
11	BRACKET-CONDENSER MOUNTING (4)
12	WCI 8000073
13	WCI 8013646
14	WCI 8013648
15	WCI 8010274
16	WCI 8000062
17	WCI 8003647
18	WCI 800010
19	WCI 8000061
20	SCREW-BRACKET MOUNTING (4) (NON-ILLUSTRATED)
21	WCI 8007659
22	WCI 8012949
23	WCI 8000116
24	WCI 8000117
25	WCI 8950024
26	WCI 8000115
27	WCI 8950112
28	WCI 9960000
29	WCI 8008778
30	WCI 8000027
31	WASHER (4)
32	CLIP (4)
33	DEFROST PAN-SERVICE COMPRESSOR
34	WCI 8003643
35	WCI 8003645
36	WCI 8009628
37	WCI 8006993
