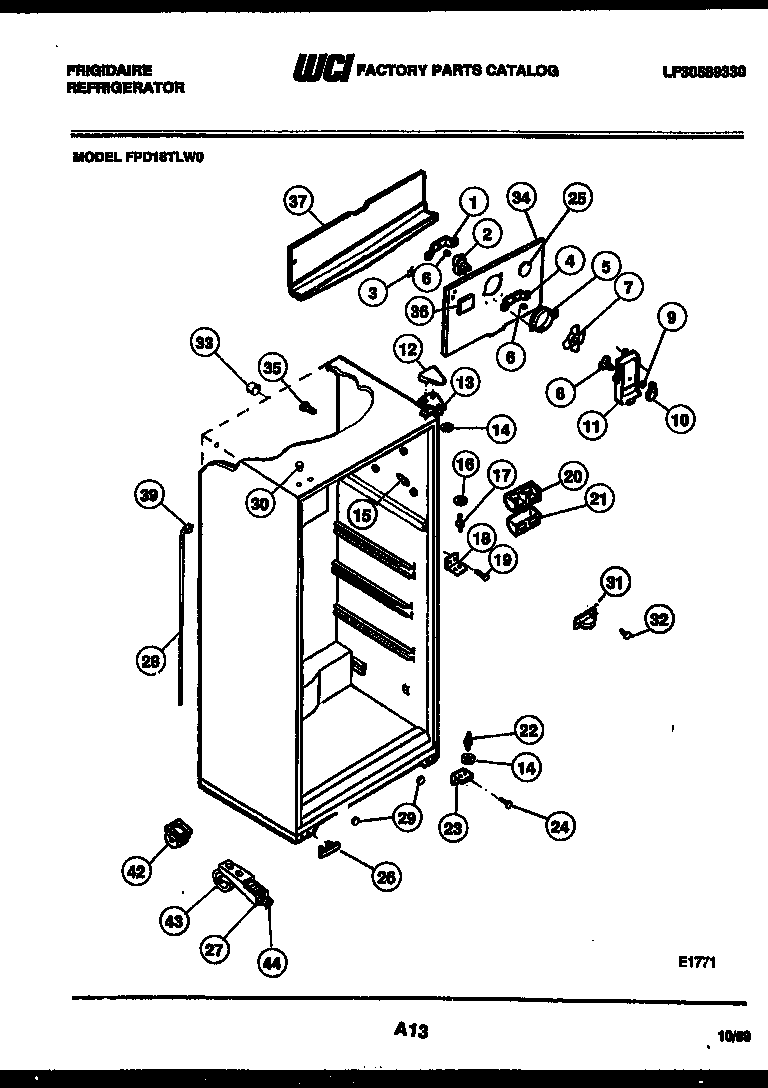

FPD18TLA0 03 – CABINET PARTS

Products

Position	Product
*26888	5304500407 Frigidaire Refrigerator Shelf Mounting Grommet
*26888	BUTTON, LINER
*26888	5304509705 Frigidaire Refrigerator Grommet
1	WCI G185303
2	5300158289 Frigidaire Evaporator Fan Motor
3	WCI G164571
4	WCI G185302
5	RING, FAN ORIFICE
5A	218843801 Frigidaire Refrigerator Screw
6	G187559 Frigidaire Refrigerator Bushing
7	5308000010 Frigidaire Refrigerator Evaporator Fan Blade
8	WCI 3206110
9	NUT, DAMPER MOUNTING
10	WCI 3206388
11	WCI 3206387
12	COVER – TOP HINGE – AVOCADO
13	WCI 3206100
13A	241710601 Frigidaire Refrigerator Screw
14	WCI G103903
15	CORNER TRIM-AVOCADO
16	WASHER-CNTR HNGE
17	WCI G142220
18	BRACKET, HINGE CENTER
19A	WASHER-MULLION (4)
19	SCREW – MULLION (2)
20	WCI 3204206
21	WCI G162178
22	5303001321 Frigidaire Refrigerator Lower Hinge Pin
23	WCI 3206136
25	PLUG-SHORT TEST HOLE (NON-ILLUSTRATED)
26	WCI 3206135
27	WCI 08011326
28	TUBE-DEFROST DRAIN
28A	5304455651 Frigidaire Refrigerator Screw
29	PLUG-BUTTON
30	WCI G174747-08
31	WCI 08000056
32	PIN-PUSH
33	TUBE, INSULATION (2)
34B	5304455650 Frigidaire Refrigerator Screw
34	WCI 3206451
34A	NUT, ORIFICE (2)
35	WCI G163669
36	WCI 08000082
37	TROUGH-DRAIN
38	WCI G183861
39A	WCI 08000126
39	RING, SEAL (NON-ILLUSTRATED)
42	WCI 3206237
43	ROLLER-FRONT (2)
43A	5304500008 Frigidaire Oven Screw
43C	WCI 08009790
43B	WCI 08009760
44	WCI 08009764
