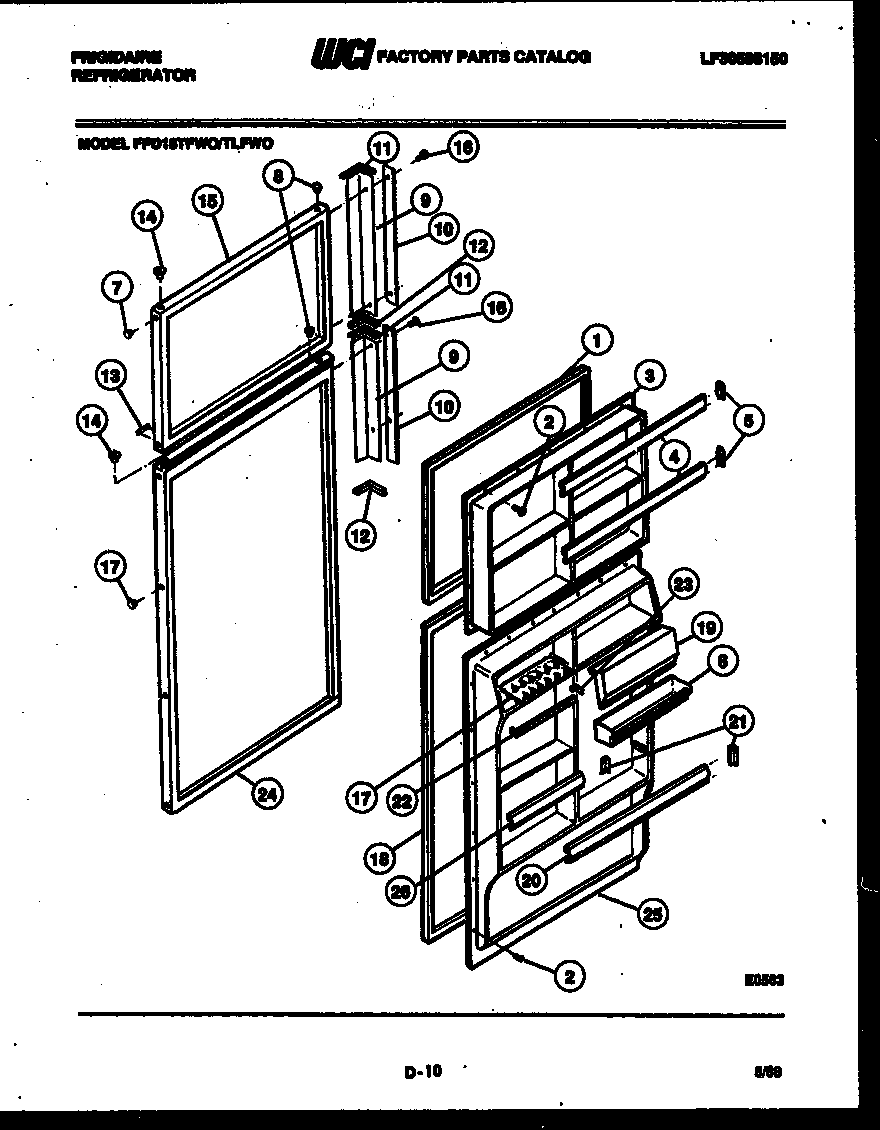

FPD18TLFH0 02 – DOOR PARTS

Products

Position	Product
*23358	WCI 5418397
*23359	WCI 5401988
*23359	WCI 5401987
*23359	WCI 5401984
1	WCI 8009734
2	SCREW-PANEL MOUNTING (56)
3	INNER PANEL-FREEZER
6	WCI 8009837
7	PLUG-HANDLE, WHEAT
8	PLUG-HINGE, WHEAT
9	HANDLE ASSY W/ CAP & TRIM
10	WCI 8010232
11	END CAP-TOP (2)
12	END CAP-BOTTOM (2)
13	WCI 8009843
14	HINGE BEARING (8)
15	WCI 8009932
16	SCREW-HANDLE MOUNTING (4)
17	WCI 8010383
18	WCI 8015544
19	DOOR-DAIRY
20	DOOR RACK-BOTTOM
21	SUPPORT-RACK RS (2)
21A	SUPPORT-RACK LS (2) (NON-ILLUSTRATED)
22	DOOR RACK-TOP
23A	5303323481 Frigidaire Refrigerator Left Hand Door Bar End Cap
23	5303323480 Frigidaire Refrigerator Door Bar End Cap Rh
24	WCI 3916034
25	INNER PANEL-REFR
26	DOOR RACK-CENTER
