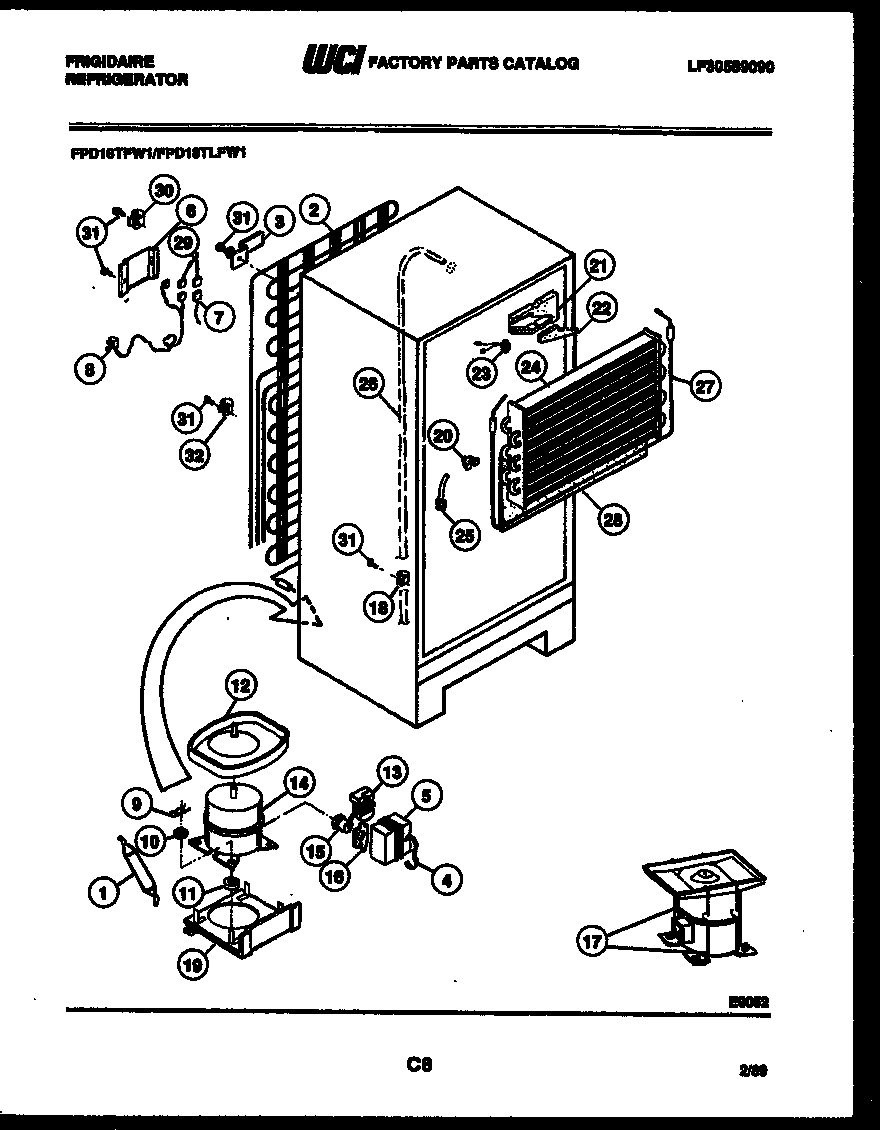

FPD18TLFW1 05 – SYSTEM AND AUTOMATIC DEFROST PARTS

Products

Position	Product
*20805	WCI 9960001
*20805	5303307583 Frigidaire Refrigerator P1 Pad Noise Reduction
1	5303305677 Frigidaire Replacement Filter Dryer Filters
2	WCI 8008779
3	BRACKET-CONDENSER MOUNTING (4)
4	STRAP-BALE
5	WCI 08016583
6	WCI 08013644
7	WCI 08009628
8	WCI 08000064
9	CLIP (4)
10	WCI 08003597
11	218513300 Frigidaire Refrigerator Compressor Mount Grommet
12B	NUT
12A	WCI 08003634
12	PAN-DEFROST
13	RELAY-ORIGINAL
14	COMPRESSOR-SERVICE
15	WCI 3201563
17	PAN RETAINER KIT-SERVICE
19	WCI 08013663
20	WCI 08017227
21	WCI 08013648
22	WCI 08013646
23	5303917954 Frigidaire Refrigerator Defrost Limit Thermostat Kit
24	WCI 08000062
25	5308000110 Frigidaire Refrigerator Evaporator/Heater Primary Strap
26	WCI 08010274
27	5317842502 Frigidaire Defrost Heater
28	WCI 08009569
29	WCI 08006993
30	240396801 Frigidaire Refrigerator Tube Clamp
31	5304455651 Frigidaire Refrigerator Screw
32	5303001199 Frigidaire Refrigerator Wiring Harness Clamp
