FPD19TFA1 04 – SHELVES AND SUPPORTS

FPD19TFA1 04 – SHELVES AND SUPPORTS

Written by

in

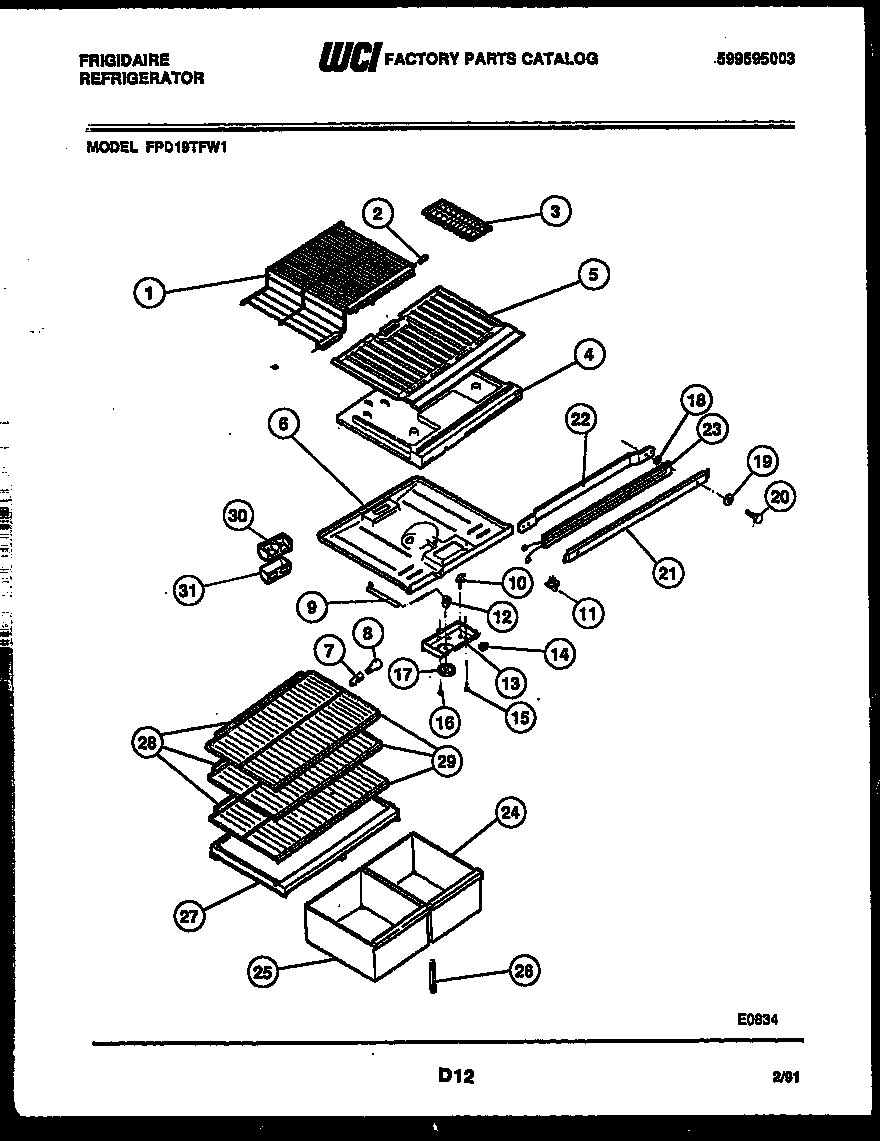

FPD19TFA1 04 – SHELVES AND SUPPORTS

Products

PositionProduct
1SHELF, FREEZER, STEP
1B5304500407 Frigidaire Refrigerator Shelf Mounting Grommet
1A5304509705 Frigidaire Refrigerator Grommet
2END CAP-SHELF,PROTECTOR
3WCI 01121808
4DIVIDER-FOAM
4AWCI 3018900
4B3205266 Frigidaire Refrigerator Edge Protector
5WCI 5303211427
6AWCI 5303001380
6TOP – REFRIGERATOR
7218906802 Frigidaire Light Lamp Socket
8316538904 Frigidaire Oven Lamp Light
9WCI 3018891
10215846604 Frigidaire Refrigerator Defrost Timer
115309918806 Frigidaire Refrigerator Light Switch Door
12WCI 5303018894
13CONTROL BOX
13A5304455650 Frigidaire Refrigerator Screw
14WCI 5303018896
155304455649 Frigidaire Refrigerator Screw
16WCI 5303001260
17KNOB, TEMP CONTROL
18SPACER-MULLION MTG, STEEL
19WASHER, NO. 10 FLAT, 7/32 X 7/16 OD, STEEL (NI)
20WCI 5308012258
21WCI 5303200367
22WCI 5308010008
23WCI 5303210351
24PAN, CRISPER, RIGHT HAND
25PAN-CRISPER LH
26SUPPORT-CRISPER CVR, ADJUSTABLE
27COVER, CRISPER PAN
28SHELF, SLIDING, REFRIGERATOR (3)
29TRIM, REFRIGERATOR SHELF, SNAP-ON, FRONT (3)
30WCI 3204206
31COVER – AIR DEFLECTOR
