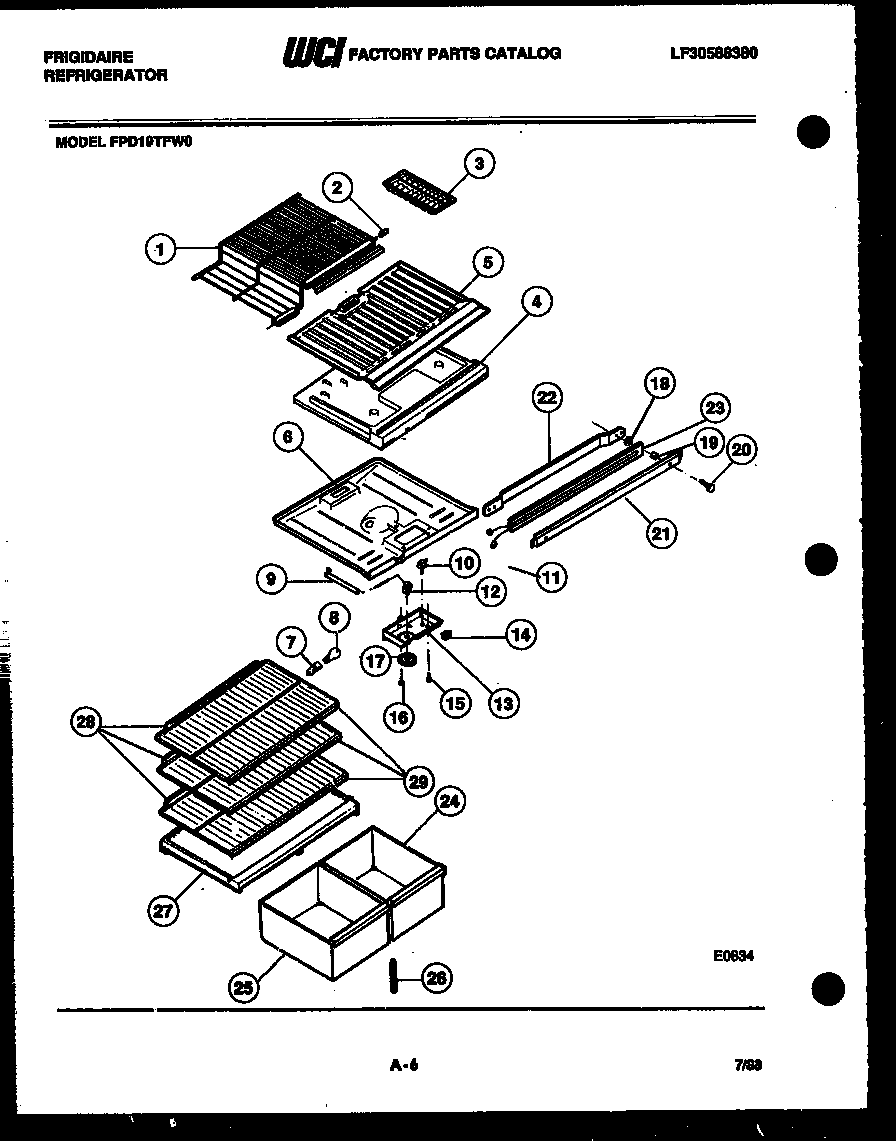

FPD19TFF0 04 – SHELVES AND SUPPORTS

FPD19TFF0 04 – SHELVES AND SUPPORTS

Written by

in

FPD19TFF0 04 – SHELVES AND SUPPORTS

Products

PositionProduct
1SHELF-FREEZER
2WCI 8013638
3WCI 1121808
4DIVIDER-FOAM
5WCI 8015543
6TOP – REFRIGERATOR
7WCI 8000815
8LIGHT BULB
9WCI 3018891
10215846602 Frigidaire Refrigerator 8-Hour Defrost Timer
11SWITCH, LIGHT
12CONTROL-TEMPERATURE
13CONTROL BOX
14WCI 3018896
15SCREW-CONTROL MOUNTING (2) (NON-ILLUSTRATED)
16WCI 8000008
17KNOB, TEMP CONTROL
18WCI 8010007
19WCI 8003607
20SCREW-HINGE/MULLION (4)
21WCI 8010028
22WCI 8010008
23WCI 3018916
24PAN, CRISPER, RIGHT HAND
25PAN-CRISPER LH
26WCI 3018874
27COVER, CRISPER PAN
28SHELF, SLIDING, REFRIGERATOR (3)
29WCI 8013639
