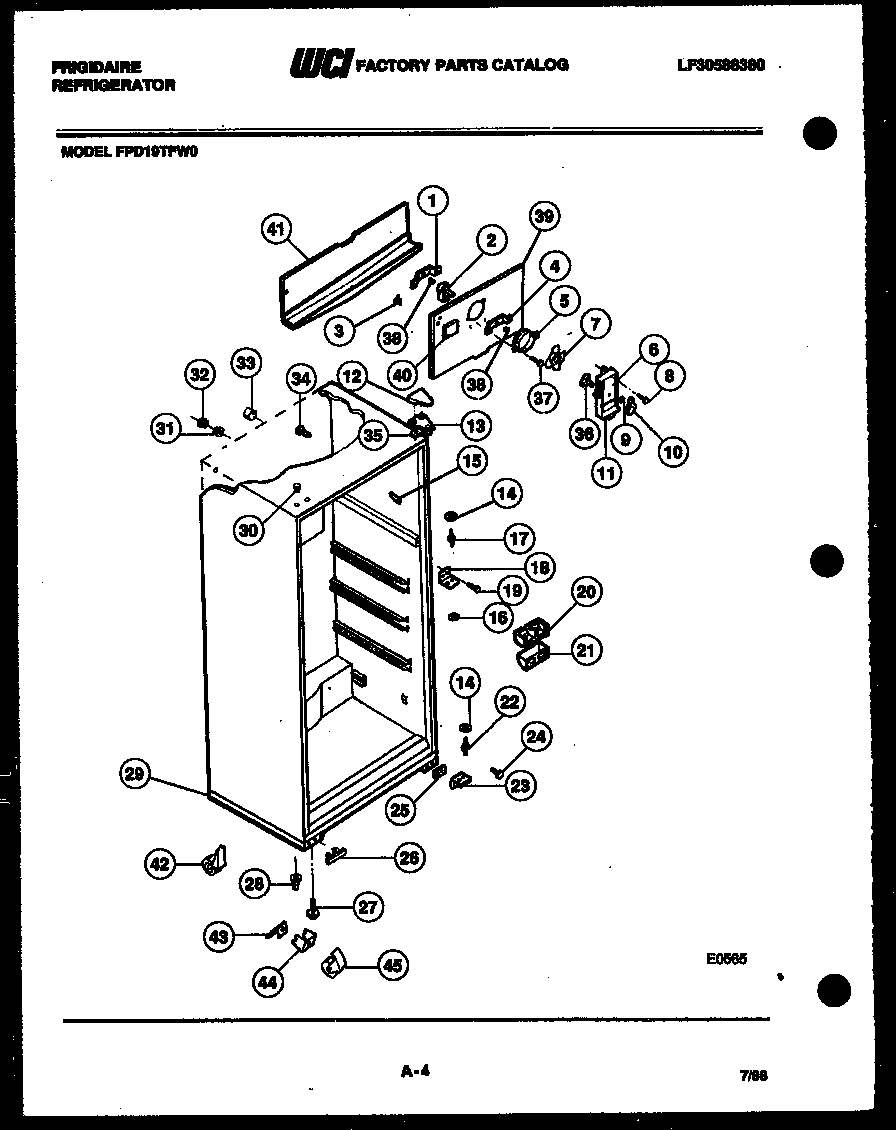

FPD19TFL0 03 – CABINET PARTS

Products

Position	Product
*18049	WCI 8009761
1	WCI 8000042
2	WCI 8000036
3A	SCREW-PANEL MOUNTING (56)
3	WCI 8000107
4	WCI 8000043
5	WCI 8000124
6	LABEL-FAN COVER
7	WCI 8000010
8	SCREW-COVER MOUNTING (NON-ILLUSTRATED)
9	WCI 8000067
10	WCI 8009793
11	WCI 8009817
12	COVER, HNG, ALMD
13B	TAPPING PLATE (4)
13	WCI 8012843
13A	SCREW-HINGE MOUNTING (2)
14	WASHER-1/4 NYLON (3)
15	WCI 8010018
16	WASHER-5/16 NYLON
17	WCI 8000184
18	WCI 8000757
19	SCREW-HINGE/MULLION (4)
20	WCI 8000071
21	WCI 8000055
22	PIN-LOWER HINGE
23	WCI 8017609
24	SCREW-HINGE MOUNTING
25	SHIM-LOWER HINGE
26	WCI 8003585
27A	WCI 8003584
27	SCREWS LEVELING (4)
28A	WCI 8000056
28	WCI 8010012
28B	WCI 8009755
29	WCI 8010092
30	WCI 8007129
31	WCI 8006970
32	WCI 8006971
33	WCI 8000004
34	WCI 8000097
35	WCI 8012829
36	WCI 8000066
37	SCREW (3)
38	WCI 8000032
39	WCI 8009771
40	WCI 8013636
41	WCI 8009772
41A	WCI 8016571
42A	WCI 8009762
42	WCI 8009773
43	WCI 8009790
44	WCI 8013678
45	WCI 8009760
