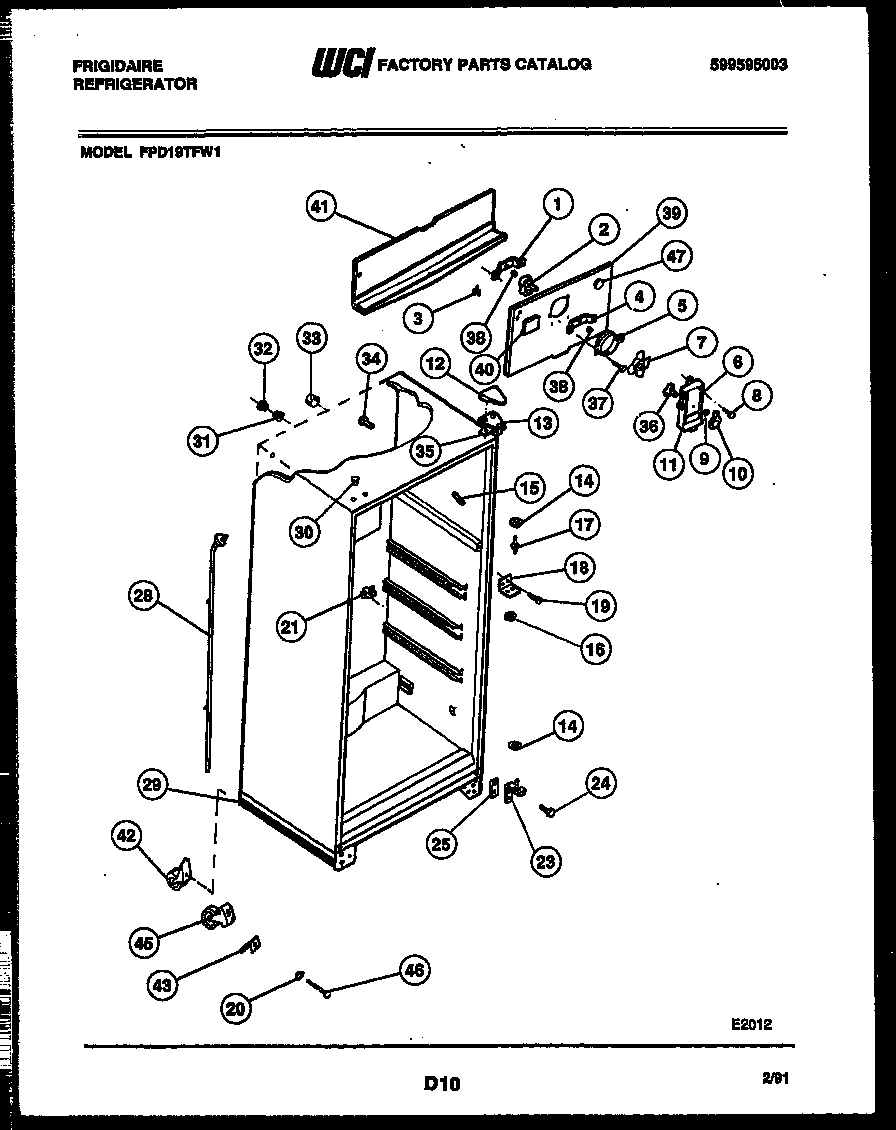

FPD19TFL1 03 – CABINET PARTS

Products

PositionProduct
*41237PLUG, BUTTON, CABINET LINER (NI)
1BRACKET-MOTOR MTG, REAR
25300158289 Frigidaire Evaporator Fan Motor
3WCI 5308000107
4WCI 5303001226
5RING-FAN ORIFICE
6WCI 08009822
75308000010 Frigidaire Refrigerator Evaporator Fan Blade
9Nut,push-on
10KNOB, DAMPER
10ALABEL, KNOB
11FAN COVER
12COVER-UPPER HINGE, ALMOND
13BRACKET-UPPER HINGE
13BTAPPING PLATE, UPPER HINGE (2) (NOT ILLUSTRATED)
14WASHER, .34 X .62 X .05, NYLON
15TRIM-CABINET CORNER, ALMOND
16WCI 5308000186
17WCI 5308000184
18BRACKET-CTR HINGE
19WCI 5308012258
20WCI 5308011326
21WCI 5308000056
21AWCI 5303001361
23BTAPPING PLATE, GUSSET, RH (NOT ILLUSTRATED)
23BRACKET-LOWER HINGE, W/ HINGE PIN
23ATAPPING PLATE, GUSSET, LH (NOT ILLUSTRATED)
24241710601 Frigidaire Refrigerator Screw
25WCI 5303212488
28AWCI 5303207353
28WCI 5303210377
29WCI 5303212487
30PLUG-BUTTON, ALMOND, UPR HINGE HOLES
31WCI 5303001286
32WCI 5303001287
33TUBE-RUBBER
34SUPPORT-COIL COVER
35SHIM – UPPER HINGE
36DAMPER-FAN COVER
375304455651 Frigidaire Refrigerator Screw
38G187559 Frigidaire Refrigerator Bushing
39WCI 5308009771
39BNUT, “U“ TYPE, NO. 8-15(A), FAN MOTOR MOUNT (NOT ILLUSTRATED)
39A5304455650 Frigidaire Refrigerator Screw
40BUTTON – DECORATIVE PLUG
41WCI 5303001470
42ABOLT-ROLLER MTG, HEX WASHER HEAD, 1/4-28 X 1/2, (2)
42WCI 5308009773
43WCI 5308009790
45WCI 5303212490
46WCI 5303212598
475303208309 Frigidaire Refrigerator Plug Hole
