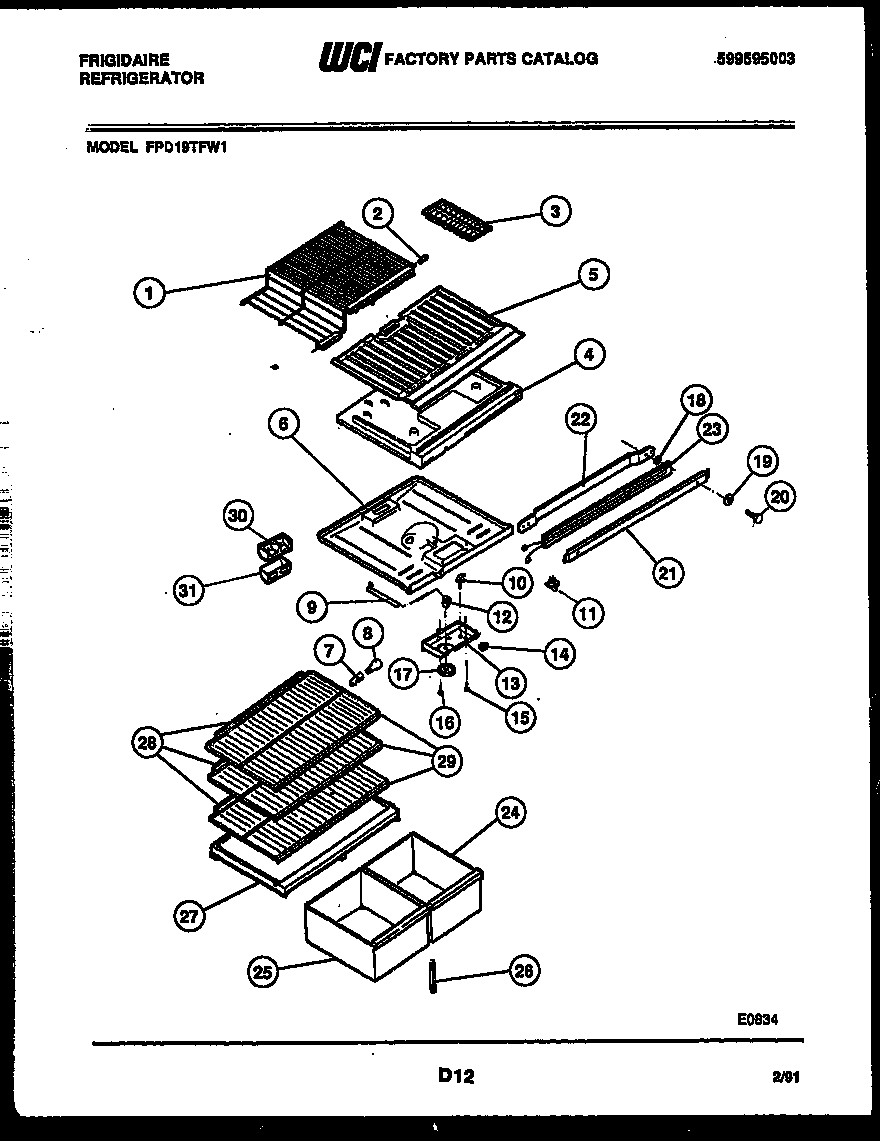

FPD19TFL1 04 – SHELVES AND SUPPORTSadmin2025-04-26T08:34:33+00:00FPD19TFL1 04 – SHELVES AND SUPPORTS
Products
| Position | Product |
|---|
| 1 | SHELF, FREEZER, STEP |
| 1B | 5304500407 Frigidaire Refrigerator Shelf Mounting Grommet |
| 1A | 5304509705 Frigidaire Refrigerator Grommet |
| 2 | END CAP-SHELF,PROTECTOR |
| 3 | WCI 01121808 |
| 4 | DIVIDER-FOAM |
| 4A | WCI 3018900 |
| 4B | 3205266 Frigidaire Refrigerator Edge Protector |
| 5 | WCI 5303211427 |
| 6A | WCI 5303001380 |
| 6 | TOP - REFRIGERATOR |
| 7 | 218906802 Frigidaire Light Lamp Socket |
| 8 | 316538904 Frigidaire Oven Lamp Light |
| 9 | WCI 3018891 |
| 10 | 215846604 Frigidaire Refrigerator Defrost Timer |
| 11 | 5309918806 Frigidaire Refrigerator Light Switch Door |
| 12 | WCI 5303018894 |
| 13A | 5304455650 Frigidaire Refrigerator Screw |
| 13 | CONTROL BOX |
| 14 | WCI 5303018896 |
| 15 | 5304455649 Frigidaire Refrigerator Screw |
| 16 | WCI 5303001260 |
| 17 | KNOB, TEMP CONTROL |
| 18 | SPACER-MULLION MTG, STEEL |
| 19 | WASHER, NO. 10 FLAT, 7/32 X 7/16 OD, STEEL (NI) |
| 20 | WCI 5308012258 |
| 21 | WCI 5303200370 |
| 22 | WCI 5308010008 |
| 23 | WCI 5303210351 |
| 24 | PAN, CRISPER, RIGHT HAND |
| 25 | PAN-CRISPER LH |
| 26 | SUPPORT-CRISPER CVR, ADJUSTABLE |
| 27 | COVER, CRISPER PAN |
| 28 | SHELF, SLIDING, REFRIGERATOR (3) |
| 29 | TRIM, REFRIGERATOR SHELF, SNAP-ON, FRONT (3) |
| 30 | WCI 3204206 |
| 31 | COVER - AIR DEFLECTOR |
