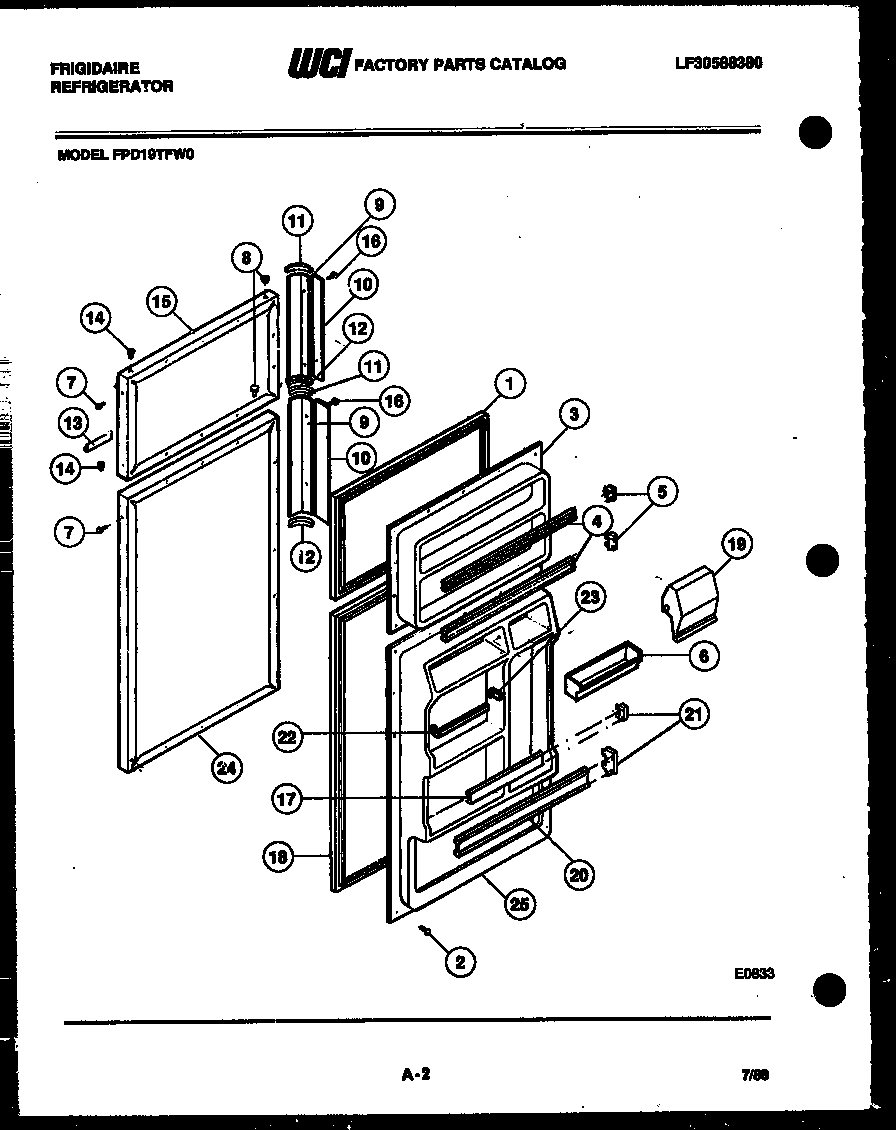

FPD19TFW0 02 – DOOR PARTS

FPD19TFW0 02 – DOOR PARTS

Written by

in

FPD19TFW0 02 – DOOR PARTS

Products

PositionProduct
*18043INSULATION-BULK
1WCI 3017189
2SCREW-PANEL MOUNTING (56)
3WCI 3018971
4WCI 3018972
6WCI 3200466
7PLUG-HANDLE, WHITE
8PLUG-HINGE, WHITE
9WCI 3017190
10WCI 8010232
11END CAP-TOP (2)
12END CAP-BOTTOM (2)
13WCI 3018385
14HINGE BEARING (8)
15WCI 8009931
16SCREW-HANDLE MOUNTING (4)
18WCI 3018238
19WCI 3200467
20215516220 Frigidaire Refrigerator Door Rack
21A5303325991 Frigidaire Refrigerator Door Bar Endcap
215303325990 Frigidaire Refrigerator Door Bar End Cap
22RACK-REFR DOOR
235303323481 Frigidaire Refrigerator Left Hand Door Bar End Cap
23A5303323480 Frigidaire Refrigerator Door Bar End Cap Rh
24WCI 3916032
25WCI 3018976
