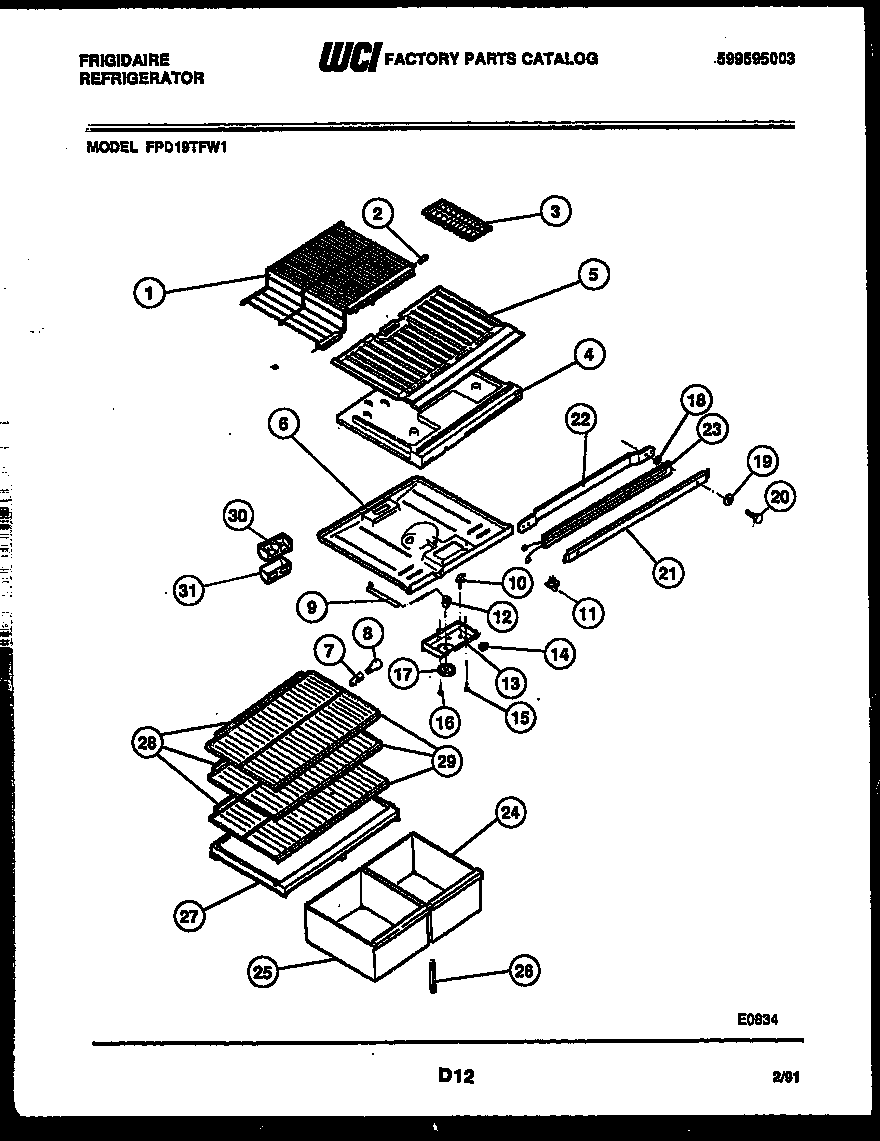

FPD19TFW1 04 – SHELVES AND SUPPORTS

Products

Position	Product
1	SHELF, FREEZER, STEP
1B	5304500407 Frigidaire Refrigerator Shelf Mounting Grommet
1A	5304509705 Frigidaire Refrigerator Grommet
2	END CAP-SHELF,PROTECTOR
3	WCI 01121808
4	DIVIDER-FOAM
4A	WCI 3018900
4B	3205266 Frigidaire Refrigerator Edge Protector
5	WCI 5303211427
6A	WCI 5303001380
6	TOP – REFRIGERATOR
7	218906802 Frigidaire Light Lamp Socket
8	316538904 Frigidaire Oven Lamp Light
9	WCI 3018891
10	215846604 Frigidaire Refrigerator Defrost Timer
11	5309918806 Frigidaire Refrigerator Light Switch Door
12	WCI 5303018894
13A	5304455650 Frigidaire Refrigerator Screw
13	CONTROL BOX
14	WCI 5303018896
15	5304455649 Frigidaire Refrigerator Screw
16	WCI 5303001260
17	KNOB, TEMP CONTROL
18	SPACER-MULLION MTG, STEEL
19	WASHER, NO. 10 FLAT, 7/32 X 7/16 OD, STEEL (NI)
20	WCI 5308012258
21	WCI 5303200366
22	WCI 5308010008
23	WCI 5303210351
24	PAN, CRISPER, RIGHT HAND
25	PAN-CRISPER LH
26	SUPPORT-CRISPER CVR, ADJUSTABLE
27	COVER, CRISPER PAN
28	SHELF, SLIDING, REFRIGERATOR (3)
29	TRIM, REFRIGERATOR SHELF, SNAP-ON, FRONT (3)
30	WCI 3204206
31	COVER – AIR DEFLECTOR
