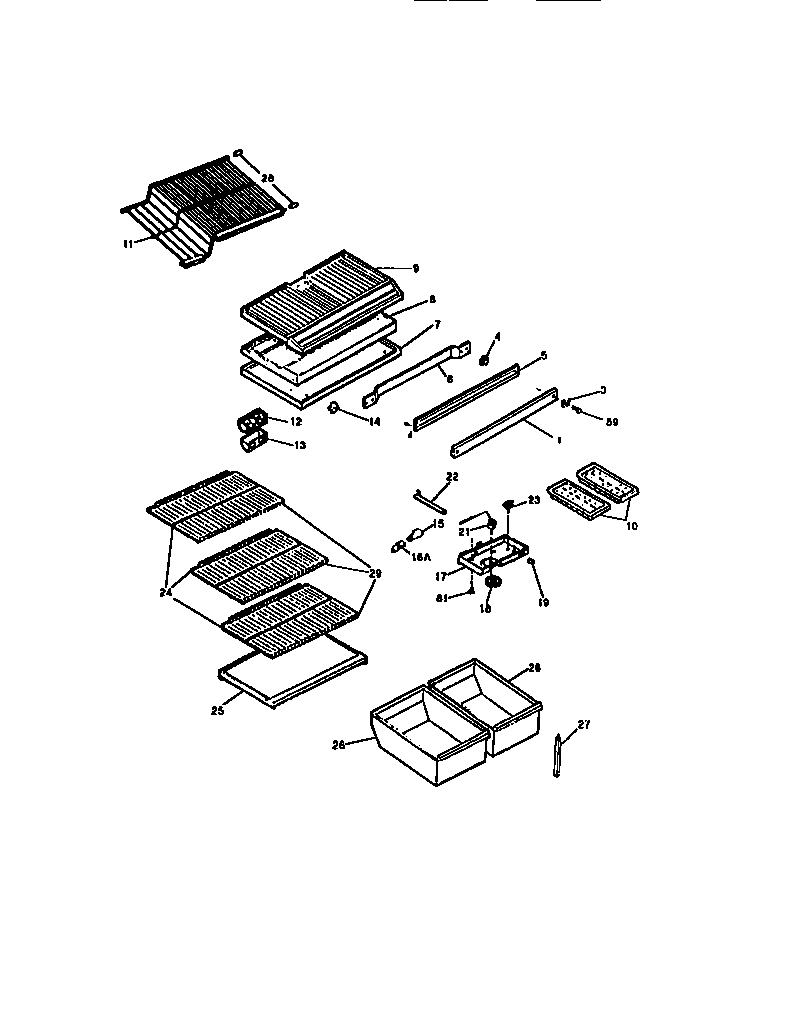

FPD19TPH0 04 – SHELVES, CONTROLS, DIVIDER, MULLION

Products

PositionProduct
1WCI 5303200366
3WASHER, NO. 10 FLAT, 7/32 X 7/16 OD, STEEL (NI)
4SPACER-MULLION MTG, STEEL
5WCI 5303210351
6WCI 5308010008
7TOP – REFRIGERATOR
7WCI 5303001380
83205266 Frigidaire Refrigerator Edge Protector
8DIVIDER-FOAM
8WCI 3018900
9WCI 5303211427
10WCI 01121808
11SHELF, FREEZER, STEP
12DEFLECTRO, AIR, W/SEAL
125303001449 Frigidaire Refrigerator Seal
13EXTENSION, AIR DEFLECTOR, WITH INSULATION
13WCI 5303001448
145309918806 Frigidaire Refrigerator Light Switch Door
15316538904 Frigidaire Oven Lamp Light
16218906802 Frigidaire Light Lamp Socket
17CONTROL BOX
18KNOB, TEMP CONTROL
19WCI 5303018896
21WCI 5303018894
21WCI 5303001260
22WCI 3068891
23215846602 Frigidaire Refrigerator 8-Hour Defrost Timer
235304455649 Frigidaire Refrigerator Screw
24SHELF, SLIDING, REFRIGERATOR (3)
25COVER, CRISPER PAN
26PAN, CRISPER, RIGHT HAND
26PAN-CRISPER LH
27SUPPORT-CRISPER CVR, ADJUSTABLE
28END CAP-SHELF,PROTECTOR
29TRIM, REFRIGERATOR SHELF, SNAP-ON, FRONT (3)
59WCI 5308012258
815304455650 Frigidaire Refrigerator Screw
