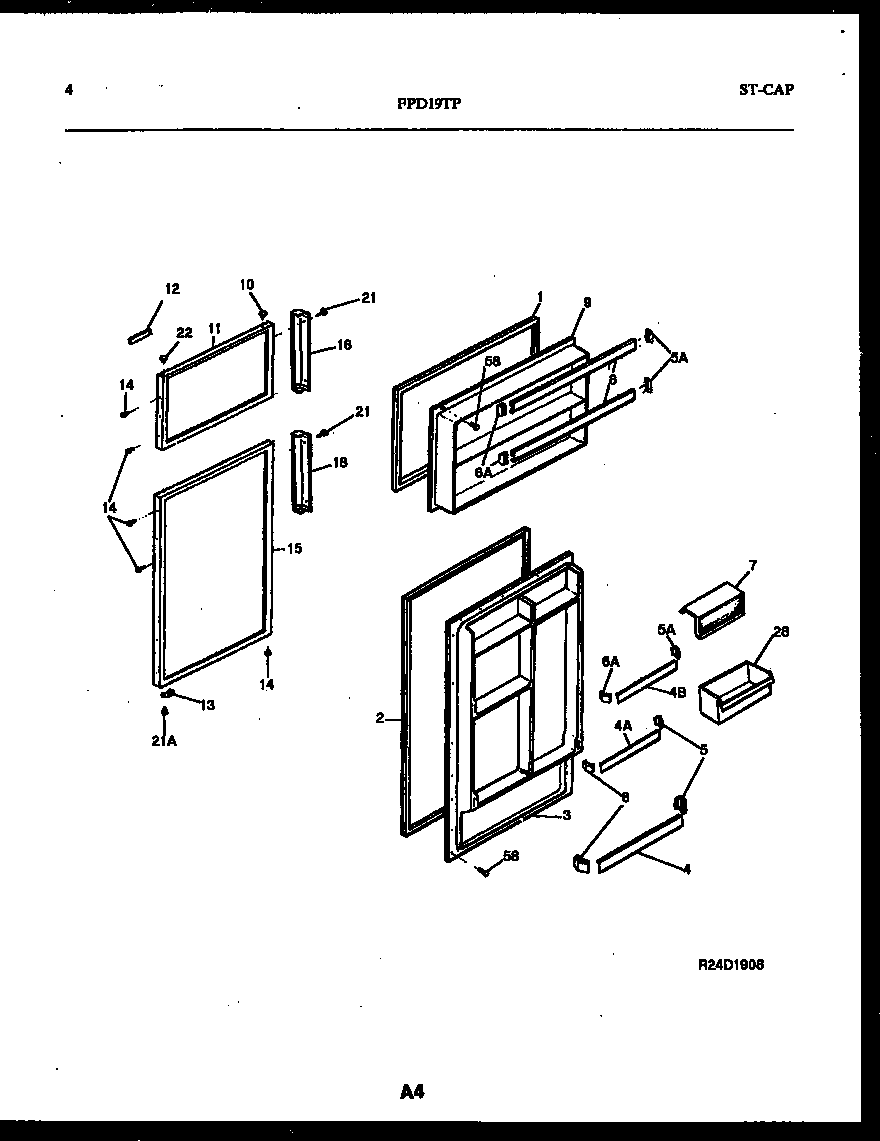

FPD19TPH1 02 – DOOR PARTSadmin2025-04-26T08:34:33+00:00FPD19TPH1 02 – DOOR PARTS
Products
| Position | Product |
|---|
| *58087 | INSULATION-BULK (NON-ILLUSTRATED) |
| 1 | GASKET-FRZR DOOR, BROWN, MAGNETIC |
| 2 | GASKET-REFR DOOR, BROWN, MAGNETIC |
| 3 | WCI 3018976 |
| 4B | RACK-REFR DOOR |
| 4 | 215516220 Frigidaire Refrigerator Door Rack |
| 5A | 5303323480 Frigidaire Refrigerator Door Bar End Cap Rh |
| 5 | SUPPORT, RH (2) |
| 6A | 5303323481 Frigidaire Refrigerator Left Hand Door Bar End Cap |
| 6 | SUPPORT, LH (2) (NON-ILLUSTRATED) |
| 7 | WCI 3200467 |
| 8 | WCI 3018972 |
| 9 | WCI 3018971 |
| 11 | PANEL-FRZR DOOR, WHEAT |
| 12 | NAMEPLATE |
| 13 | DOOR STOP, REFR SECTION |
| 13A | WCI 5308000255 |
| 14 | BUTTON-WHEAT |
| 15 | PANEL-REFR-WHEAT |
| 18 | HANDLE-DOOR, WHEAT, REFR |
| 21 | SCREW-HANDLE MTG, SPCL CR OVAL HD, 10-24(D) X 5/8, WHEA |
| 21A | WCI 5308011745 |
| 22 | BEARING-HINGE |
| 28 | WCI 3200466 |
| 58 | 5304455651 Frigidaire Refrigerator Screw |
