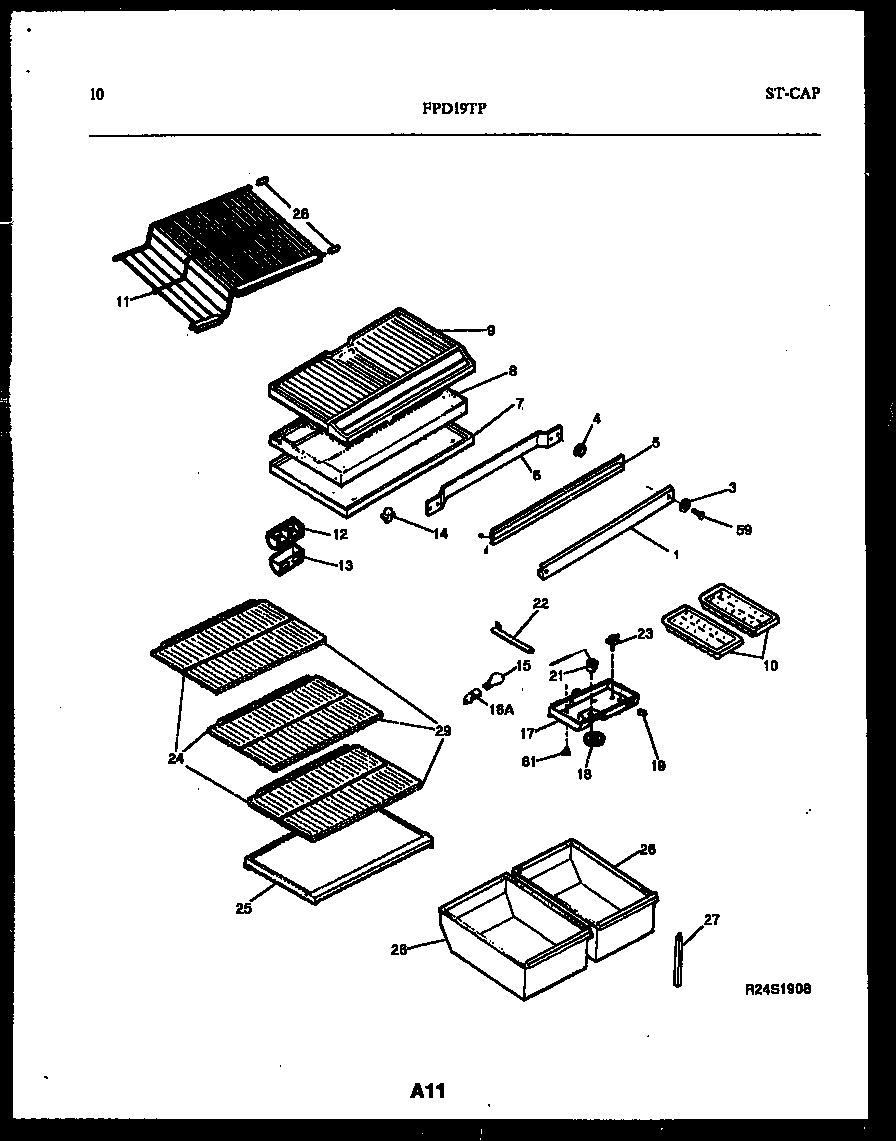

FPD19TPH1 05 – SHELVES AND SUPPORTS

FPD19TPH1 05 – SHELVES AND SUPPORTS

Written by

in

FPD19TPH1 05 – SHELVES AND SUPPORTS

Products

PositionProduct
1WCI 5303200368
3WASHER, NO. 10 FLAT, 7/32 X 7/16 OD, STEEL (NI)
4SPACER-MULLION MTG, STEEL
5WCI 5303210351
6WCI 5308010008
7TOP – REFRIGERATOR
7AWCI 5303001380
8A3205266 Frigidaire Refrigerator Edge Protector
8BWCI 3018900
8DIVIDER-FOAM
9WCI 5303211427
10WCI 01121808
11WCI 5303283031
12DEFLECTRO, AIR, W/SEAL
12A5303001449 Frigidaire Refrigerator Seal
13AEXTENSION, AIR DEFLECTOR, WITH INSULATION
13WCI 5303001448
145309918806 Frigidaire Refrigerator Light Switch Door
15316538904 Frigidaire Oven Lamp Light
16A218906802 Frigidaire Light Lamp Socket
17CONTROL BOX
18KNOB, TEMP CONTROL
19WCI 5303018896
21WCI 5303018894
21AWCI 5303001260
22WCI 3018891
23215846602 Frigidaire Refrigerator 8-Hour Defrost Timer
23A5304455649 Frigidaire Refrigerator Screw
