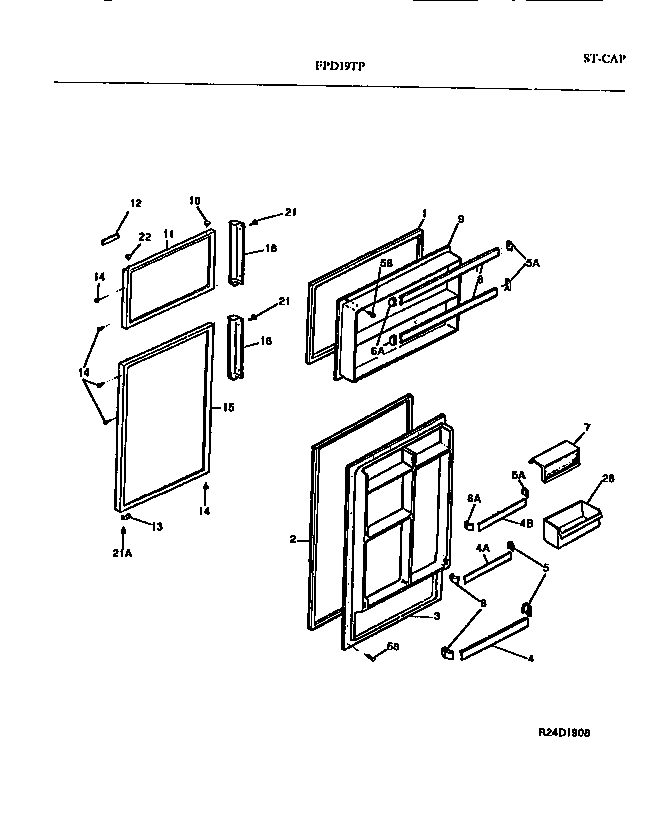

FPD19TPL0 02 – DOOR

FPD19TPL0 02 – DOOR

Written by

in

FPD19TPL0 02 – DOOR

Products

PositionProduct
*03440INSULATION-BULK (NON-ILLUSTRATED)
1GASKET-FRZR DOOR, BROWN, MAGNETIC
2GASKET-REFR DOOR, BROWN, MAGNETIC
3WCI 3018976
4BRACK-REFR DOOR
4215516220 Frigidaire Refrigerator Door Rack
5SUPPORT, RH (2)
5A5303323480 Frigidaire Refrigerator Door Bar End Cap Rh
6SUPPORT, LH (2) (NON-ILLUSTRATED)
6A5303323481 Frigidaire Refrigerator Left Hand Door Bar End Cap
7WCI 3200467
8WCI 3018972
9WCI 3018971
10BUTTON-WHEAT
11PANEL-FRZR DOOR, WHEAT
12NAMEPLATE
13DOOR STOP, REFR SECTION
13AWCI 5308000255
14BUTTON-WHEAT
15PANEL-REFR-WHEAT
18HANDLE-DOOR, WHEAT, REFR
21AWCI 5308011745
21SCREW-HANDLE MTG, SPCL CR OVAL HD, 10-24(D) X 5/8, WHEA
22BEARING-HINGE
28WCI 3200466
585304455651 Frigidaire Refrigerator Screw
