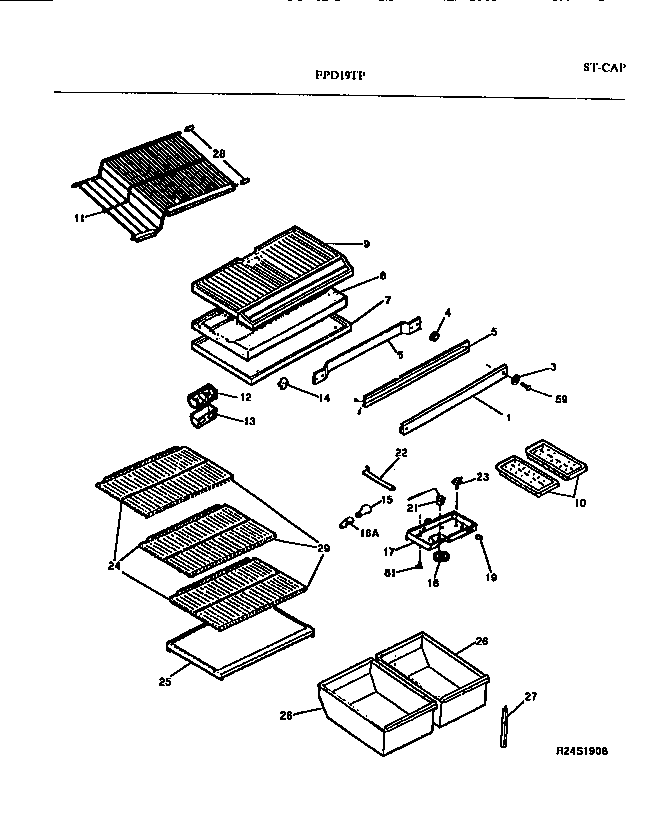

FPD19TPL1 04 – SHELVES, CONTROLS, DIVIDER, MULLION

FPD19TPL1 04 – SHELVES, CONTROLS, DIVIDER, MULLION

Written by

in

FPD19TPL1 04 – SHELVES, CONTROLS, DIVIDER, MULLION

Products

PositionProduct
1WCI 5303200370
3WASHER, NO. 10 FLAT, 7/32 X 7/16 OD, STEEL (NI)
4SPACER-MULLION MTG, STEEL
5WCI 5303210351
6WCI 5308010008
7TOP – REFRIGERATOR
7AWCI 5303001380
8DIVIDER-FOAM
8A3205266 Frigidaire Refrigerator Edge Protector
8BWCI 3018900
9WCI 5303211427
10WCI 01121808
11SHELF, FREEZER, STEP
12A5303001449 Frigidaire Refrigerator Seal
12DEFLECTRO, AIR, W/SEAL
13WCI 5303001448
13AEXTENSION, AIR DEFLECTOR, WITH INSULATION
145309918806 Frigidaire Refrigerator Light Switch Door
15316538904 Frigidaire Oven Lamp Light
16A218906802 Frigidaire Light Lamp Socket
17CONTROL BOX
18KNOB, TEMP CONTROL
19WCI 5303018896
21WCI 5303018894
21AWCI 5303001260
22WCI 3018891
23A5304455649 Frigidaire Refrigerator Screw
23215846602 Frigidaire Refrigerator 8-Hour Defrost Timer
24SHELF, SLIDING, REFRIGERATOR (3)
25COVER, CRISPER PAN
26APAN-CRISPER LH
26PAN, CRISPER, RIGHT HAND
27SUPPORT-CRISPER CVR, ADJUSTABLE
28END CAP-SHELF,PROTECTOR
29TRIM, REFRIGERATOR SHELF, SNAP-ON, FRONT (3)
59WCI 5308012258
815304455650 Frigidaire Refrigerator Screw
