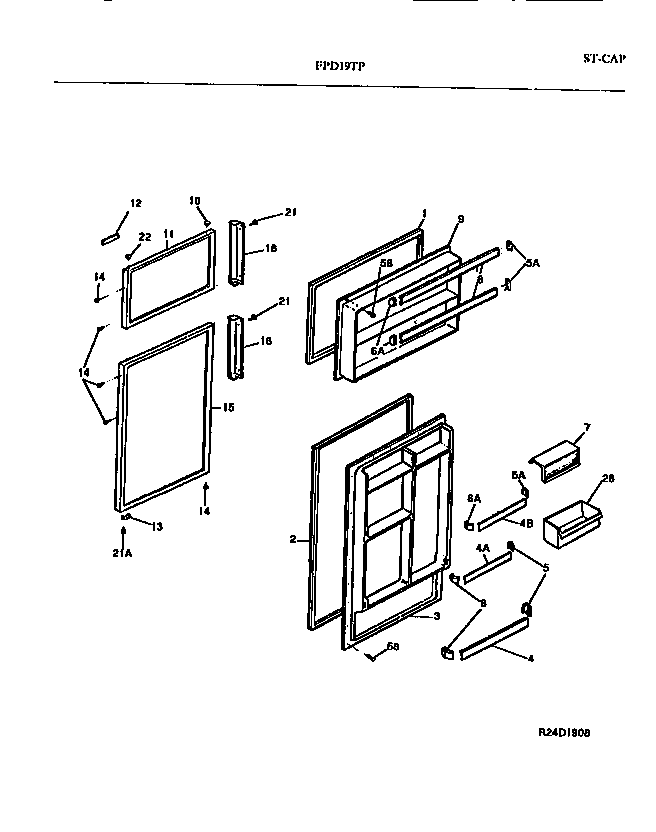

FPD19TPW1 02 – DOOR

FPD19TPW1 02 – DOOR

Written by

in

FPD19TPW1 02 – DOOR

Products

PositionProduct
*03440INSULATION-BULK (NON-ILLUSTRATED)
1GASKET-FRZR DOOR, BROWN, MAGNETIC
2GASKET-REFR DOOR, BROWN, MAGNETIC
3WCI 3018976
4BRACK-REFR DOOR
4215516220 Frigidaire Refrigerator Door Rack
5A5303323480 Frigidaire Refrigerator Door Bar End Cap Rh
55303325990 Frigidaire Refrigerator Door Bar End Cap
65303325991 Frigidaire Refrigerator Door Bar Endcap
6A5303323481 Frigidaire Refrigerator Left Hand Door Bar End Cap
7WCI 3200467
8WCI 3018972
9WCI 3018971
10PLUG-BUTTON, WHITE, HINGE BRG HOLE
11WCI 5303916052
12NAMEPLATE
13AWCI 5308000255
13DOOR STOP, REFR SECTION
14240494001 Frigidaire Refrigerator Plug Button
15PANEL-REFR-WHITE
18HANDLE-DOOR, WHITE, FRZR
21SCREW-HANDLE MTG, CR OVAL HEAD, 10-24(D) X 5/8, WHITE,
21AWCI 5308011745
22BEARING-HINGE
28WCI 3200466
585304455651 Frigidaire Refrigerator Screw
