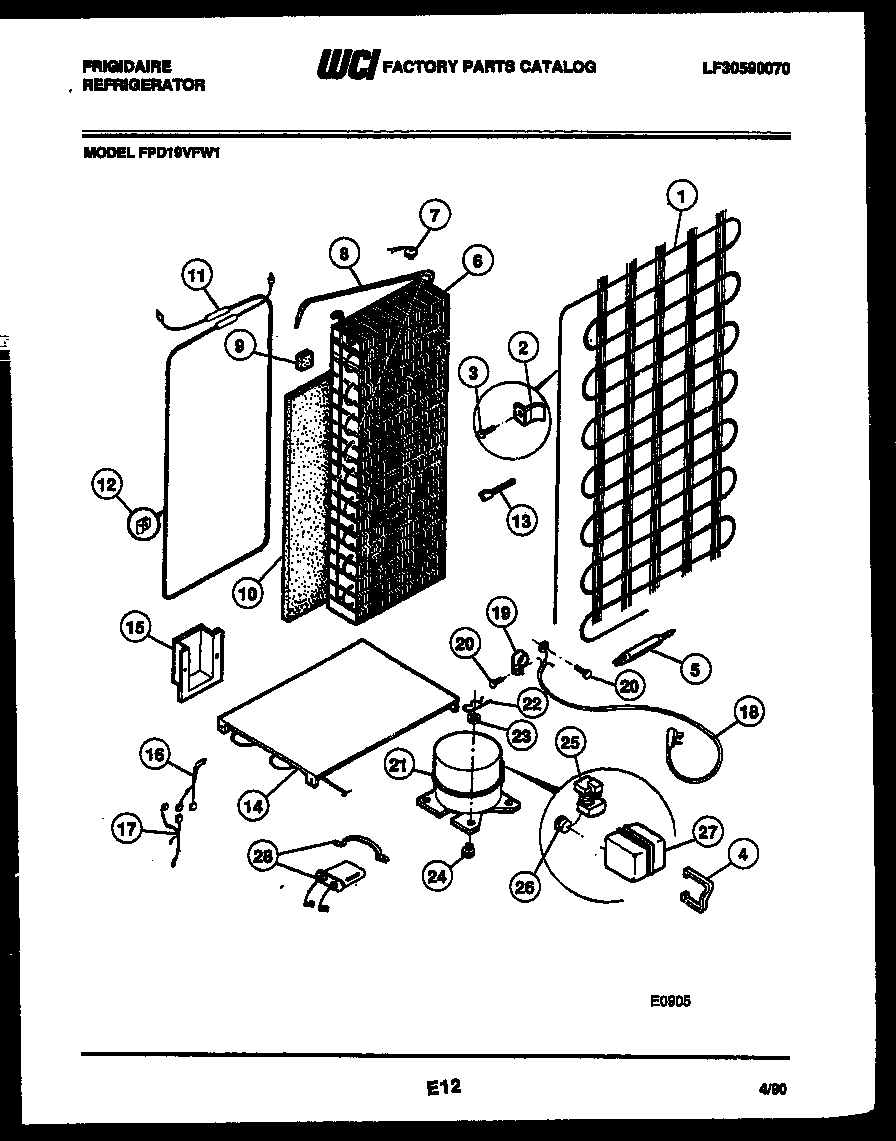

FPD19VFA1 07 – SYSTEM AND AUTOMATIC DEFROST PARTS

FPD19VFA1 07 – SYSTEM AND AUTOMATIC DEFROST PARTS

Written by

in

FPD19VFA1 07 – SYSTEM AND AUTOMATIC DEFROST PARTS

Products

PositionProduct
*31134WCI 5300189379
*31134WCI 5308009619
1WCI 5308017228
2BRACKET-MTG (4)
3AWASHER, EXT TOOTH LOCK, NO. 10 (NON-ILLUSTRATED)
45303006412 Frigidaire Refrigerator Cover Mounting Strap
5B218843801 Frigidaire Refrigerator Screw
55303305677 Frigidaire Replacement Filter Dryer Filters
6WCI 5303916605
75303917954 Frigidaire Refrigerator Defrost Limit Thermostat Kit
8WCI 5308017565
8A5308000133 Frigidaire Refrigerator Clamp
9WCI 5308000828
10WCI 5303001235
11WCI 5303007568
12WCI 5308002777
135308000110 Frigidaire Refrigerator Evaporator/Heater Primary Strap
14WCI 5300188724
14BWCI 08000099
14A5308000039 Frigidaire Refrigerator Screw
15WCI 5303001197
16WCI 5303015098
17WCI 5308009616
18CORD-ELECTRIC POWER
195303001199 Frigidaire Refrigerator Wiring Harness Clamp
205304455651 Frigidaire Refrigerator Screw
21WCI 5308950223
22CLIP – COMPRESSOR MTG
23WASHER-COMPR MTG
24218513300 Frigidaire Refrigerator Compressor Mount Grommet
25RELAY-TL
265303271616 Frigidaire Refrigerator P1-Overload
28CAPACITOR
