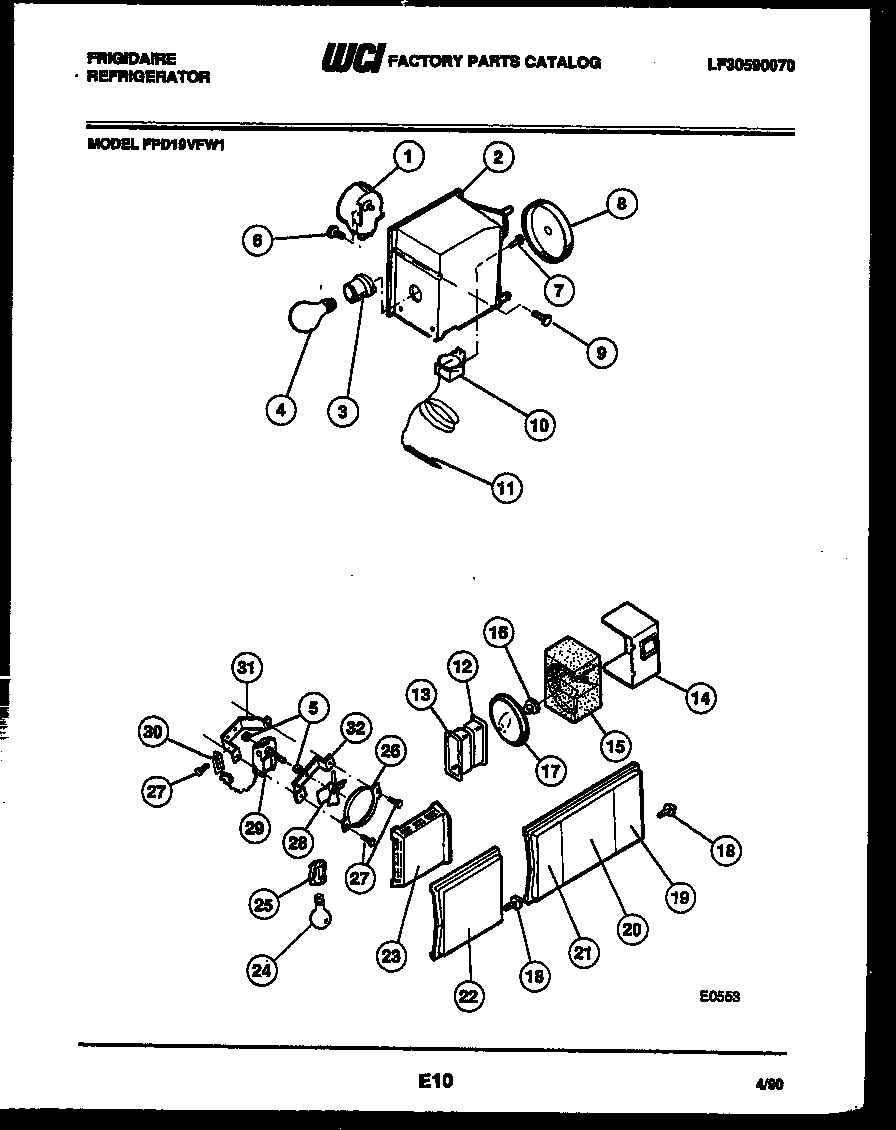

FPD19VFW1 06 – REFRIGERATOR CONTROL ASSEMBLY, DAMP

Products

Position	Product
*31132	WCI 3001269
*31131	WCI 5303015098
1	215846602 Frigidaire Refrigerator 8-Hour Defrost Timer
2	WCI 5308017561
3	SOCKET-LIGHT/LAMP
5	G187559 Frigidaire Refrigerator Bushing
6	5304455649 Frigidaire Refrigerator Screw
7	WCI 5303001260
8	WCI 5308010380
9	5304455852 Frigidaire Refrigerator Screw
10	WCI 5308000068
11	TUBE
12	WCI 5303001276
13	WCI 5303001277
13A	WCI 5303001280
14	WCI 5303001252
15	WCI 5308000771
16	WCI 5308013429
17	WCI 5308010379
18	WCI 5303001213
18A	5304455650 Frigidaire Refrigerator Screw
19	LABEL-REF LIGHT SHLD, RH (NON-ILLUSTRATED)
20	WCI 08009992
21	WCI 5308009976
22	LIGHT SHIELD-FREEZER
23	WCI 5316465401
24	316538904 Frigidaire Oven Lamp Light
25	218906802 Frigidaire Light Lamp Socket
26	RING-FAN ORIFICE
27	218843801 Frigidaire Refrigerator Screw
28	5308000010 Frigidaire Refrigerator Evaporator Fan Blade
29	5300158289 Frigidaire Evaporator Fan Motor
30	WCI 5308000107
31	BRACKET-MOTOR MTG, REAR
32	WCI 5303001226
